Brand: TDK

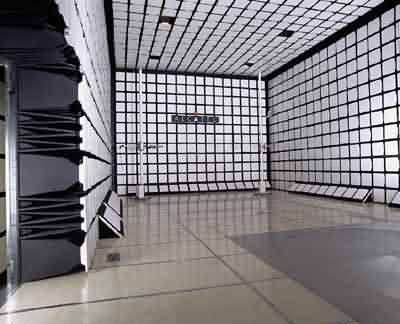

Camera anecoica Fully Compliant teste 10m CISPR 26 MHz..18 GHz TDK

Cod: TDK 10m CISPR




Brosura produs PDF, 0.55 Mb

Descriere

  • Dimensions:  18.0 m long x 12.0 m wide x 8.4 m high (59' L x 39'-4" W x 27'-6" H)
  • Absorbers:  IB-015 fully lined ferrite IP-090BL fully lined absorber
  • NSA test volume ±3.5 dB (@3 m):  4.0 m Æ, 2.5 m high
  • Field uniformity area (-0, +6 dB):  1.5 m x 1.5 m high, 0.8 m from floor
  • Radiated emissions:  Compliance with ANSI C63.4, EN 50147-2, CISPR 22
  • Radiated immunity:  Compliance with IEC 1000-4-3
  • EMI frequency range:  30 MHz - 40 GHz
  • EMS frequency range:  26 MHz - 18 GHz



  • Radiated emissions: Full compliance with ANSI C63.4, EN 50147-2, CISPR 22
  • Radiated immunity: Full compliance with IEC 1000-4-3
  • Fully lined ferrite tile and IP-090BL absorber (TDK hybrid technology)
  • Dimensions: 18.0 m long x 12.0 m wide x 8.4 m high (59' L x 39'-4" W x 27'-6" H)
  • Turnkey solution


Alte produse TDK

ANTENA DIPOL LOG-PERIODICA BANDA LARGA 80 MHZ..1 GHZ TDK LPDA-0801

• Frequency Range: 80 MHz to 1 GHz
• Gain: 5 - 6 dBi
• VSWR: 1.5:1 average
• Polarization: Linear
• Power Handling: 2.5 kW (continuous)
• Impedance: 50 Ohms nominal



ANTENA BICONICA DE PRECIZIE SI BANDA LARGA 20..300 MHZ TDK PBA-2030

• Frequency Range: 20 MHz to 300 MHz
• VSWR: 2.5:1 average
• Polarization: Linear
• Power Handling: 100 W maximum
• Feedpoint Impedance: 50 ohms nominal



CAMERA ANECOICA COMPACTA FULLY COMPLIANT 26 MHZ..1 GHZ TDK CAC-S™ 2601

• Dimensions: 7.0 m long x 3.0 m wide x 3.0 m high
• Absorbers: X-131 Fully lined double layer ferrite
• Radiated emissions: Compliance with EN 50147-2
• Radiated immunity: Compliance with IEC 1000-4-3
• EMI frequency range: 30 MHz - 1 GHz
• EMS frequency range: 26 MHz - 1 GHz
• Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22
• Radiated immunity: Full compliance with IEC 1000-4-3



CAMERA ANECOICA COMPACTA COMPLET CONFORMA STANDARDE EMC 26 MHZ..18 GHZ TDK CAC-S™ 2618

• Dimensions: 7.5 m long x 3.0 m wide x 3.0 m high (24'-7" L x 9'-10" W x 9'-10" H)
• Absorbers: X-131 Fully lined double layer ferrite
• EMI frequency range: 30 MHz - 18 GHz
• EMS frequency range: 26 MHz - 18 GHz
• Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22
• Radiated immunity: Full compliance with IEC 1000-4-3



ANTENA EMC DE PRECIZIE SI BANDA LARGA HIBRIDA LOG PERIODICA 26 MHZ..3 GHZ TDK HLP-2603

• Frequency Range: 26 MHz to 3 GHz
• Gain: 6 to 8 dBi typical
• VSWR: <2:1 average
• Polarization: Linear
• Power Handling: 1.0 kW maximum



ANTENA DE PRECIZIE SI BANDA LARGA LOG PERIODICA 300 MHZ..3 GHZ TDK PLP-3003

• Frequency Range: 300 MHz to 3 GHz
• Gain: 6-8 dBi
• VSWR: 2:1 average
• Polarization: Linear
• Feedpoint Impedance: 50 ohms nominal
• Compact broadband design



SISTEM INTEGRAT TESTARE RADIATIE/ CONDUCTIE EMS TDK EMS-TS

• Best-in-Class Test Instruments
• Fully Integrated Hardware and Software
• Remote Control of Switches and Positioning Devices
• Automated, Semi-automated, and Manual Testing
• Built-in System and Operator Safety
• Ergonomically Designed Test Consoles and Racks
• High Quality System Cabling and Connectors
• Quality Workmanship
• On-Site Training
• Comprehensive Warranty



CAMERA ANECOICA FULLY COMPLIANT TESTE 10M CISPR 26 MHZ..18 GHZ TDK

• Dimensions: 18.0 m long x 12.0 m wide x 8.4 m high (59' L x 39'-4" W x 27'-6" H)
• Absorbers: IB-015 fully lined ferrite IP-090BL fully lined absorber
• EMI frequency range: 30 MHz - 40 GHz
• EMS frequency range: 26 MHz - 18 GHz
• Radiated emissions: Full compliance with ANSI C63.4, EN 50147-2, CISPR 22
• Radiated immunity: Full compliance with IEC 1000-4-3



CAMERA ANECOICA FULLY COMPLIANT TESTE 3M CISPR 26 MHZ..18 GHZ TDK

• Dimensions: 9.0 m long x 6.0 m wide x 5.4 m high (29'-6" L x 19'-8" W x 17'-8" H)
• Absorbers: IB-015 fully lined double layer ferrite tile IP-045C partially lined absorber
• EMI frequency range: 30 MHz - 18 GHz
• EMS frequency range: 26 MHz - 18 GHz
• Radiated emissions: Full compliance with ANSI C63.4, EN 50147-2, CISPR 22
• Radiated immunity: Full compliance with IEC 1000-4-3



ANTENA COMPACTA LOG PERIODICA DE BANDA LARGA 30 MZ..3 GHZ TDK HLP-3003C

• Frequency Range: 30 MHz to 3 GHz
• Gain: 6 dBi typical
• VSWR: 2:1 average
• Polarization: Linear
• Power Handling: 100 W
• Shortest antenna length available for the operating frequency range
