Brand: TDK

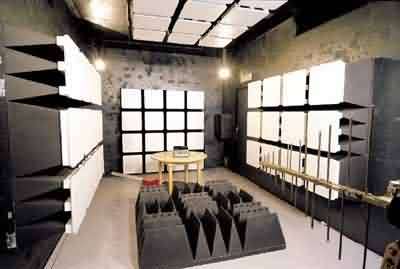

Camera anecoica compacta complet conforma standarde EMC 26 MHz..18 GHz TDK CAC-S™ 2618

Cod: TDK CAC-S™ 2618




Brosura produs PDF, 0.16 Mb

Descriere

  • Dimensions:  7.5 m long x 3.0 m wide x 3.0 m high (24'-7" L x 9'-10" W x 9'-10" H)
  • Absorbers:  X-131 Fully lined double layer ferrite
  • NSA test volume (@ 3 m):  1.0 m Ø, 1.0 m high
  • Field uniformity area (-0, +6 dB):  1.5 m x 1.5 m, 0.8 m from floor
  • Radiated emissions:  Compliance with EN 50147-2
  • Radiated immunity:  Compliance with IEC 1000-4-3
  • EMI frequency range:  30 MHz - 18 GHz
  • EMS frequency range:  26 MHz - 18 GHz



  • Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22
  • Radiated immunity: Full compliance with IEC 1000-4-3
  • Fully lined double layer ferrite tile and IP-045C absorber (TDK hybrid technology)
  • Space saving: 7.5 m long x 3.0 m wide x 3.0 m high (24'7" L x 9'-10" W x 9'-10" H)
  • Turnkey solution
