Sursa dubla programabila de precizie Hameg HMP2020

• 150 MHz bandwidth
• 4 analog channels and MSO (Mixed Signal Opt. HO3508) with 8 Logic Channels
• 2 GSa/s sample rate on 2 channels, 1 GSa/s on 4 channels



• 4¾-Digit Display with 50,000 Counts
• Basic Accuracy 0.05%
• Max. Resolution: 10µV, 0.01dBm, 10nA, 10mO, 0.1°C
• RS-232 Interface and Software included



• Frequency Range 10µHz…50MHz
• Output Voltage 5mVpp…10Vpp (into 50O) DC Offset ±5mV…5V
• Arbitrary Waveform Generator: 250MSa/s, 14Bit, 256kPts
• Sine, Square, Pulse, Triangle, Ramp, Arbitrary Waveforms incl. Standard Curves (white Noise, Cardiac etc.)



• Measurement Functions: L, C, R, T, Q/D, |Z|
• Basic Accuracy 0.2%
• 5 Measurement Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 25kHz
• Max. Resolution: 0.001O, 0.001pF, 0.01µH



• Measurement Range 0Hz-3GHz
• 2 Measurement Inputs DC-200MHz, 1 Measurement Input 100MHz-3GHz
• Input Impedance A/B: 1MO/50O (switchable), Sensitivity 25mVrms
• Input Impedance C: 50O, Sensitivity 30mVrms
• 400 MHz Time Base with 0.5ppm Stability
• 10-Digit Resolution at 10s Gate Time



• 50 MHz bandwidth
• 2 analog channels
• Time Base 20ns/div."¦100s/div
• 100MSa/s Real Time Sampling, 2GSa/s Random Sampling
• 2kPts Memory per Channel



• 2x 0…30V/0…2A 1x 5V/0…2A
• Display resolution 10mV/1mA
• Parallel (up to 6A) and Series (up to 65V) Operation
• Electronic load up to 60W per channel (max. 2A)
• Arbitrary waveform power supply (4096 points, 12 bit)

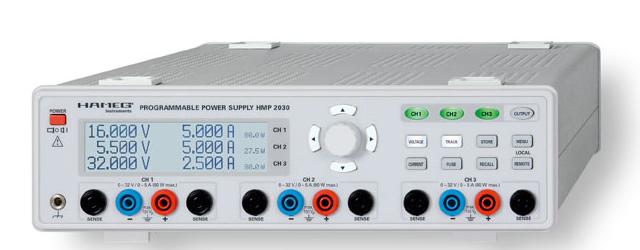

• 3 x 0…32V/0…5A 188W max.
• 188W Output Power realized by intelligent Power Management
• Low Residual Ripple: <150µVrms due to linear Post Regulators
• High Setting- and Read-Back Resolution of 1mV up to 0.1mA



• Wide Measurement Range 1mW…8kW
• Voltage Range 100mV…500V, Current Range 1mA…16A
• Frequency Range DC…1kHz
• Simultaneous Voltage, Current and Power Display
• Display of apparent, effective and reactive Power
• Power Factor Display



• 40 MHz bandwidth
• 2 analog channels
• Time Base 100ns/div."¦0.2s/div., with X magnification to 10ns/div
