Brand: Hameg

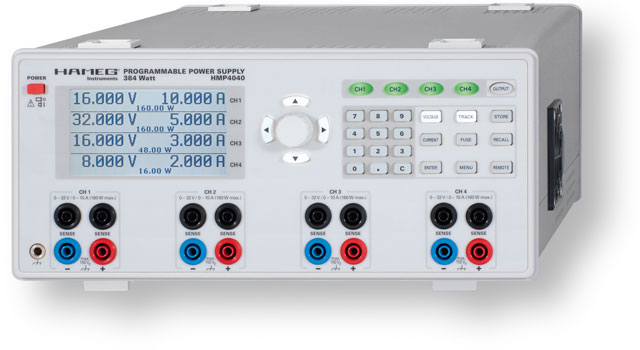

Sursa tripla programabila de precizie Hameg HMP4030

Cod: Hameg HMP4030




Brosura produs PDF, 0.68 Mb

Descriere

  • 3 x 0…32V/0…10A 384W max.
  • 384W Output Power realized by intelligent Power Management
  • Low Residual Ripple: <150µVrms due to linear Post Regulators
  • High Setting- and Read-Back Resolution of 1mV up to 0.2mA
  • Keypad for direct Parameter Entry
  • Galvanically isolated, earth-free and short circuit protected Output Channels
  • Advanced Parallel- and Serial Operation via V/I Tracking
  • EasyArb Function for free definable V/I Characteristics
  • FuseLink: Individual Channel Combination of Electronic Fuses
  • Free adjustable Overvoltage Protection (OVP) for all Outputs
  • All Parameters clearly displayed via LCD/Glowing Buttons
  • Rear Connectors for all Channels including Sense
  • USB/RS-232 Interface, optional Ethernet/USB or IEEE-488 (GPIB)


Accesorii standard

  • Line cord
  • Operating manual
  • CD


Optiuni recomandate

  • HO730 Dual-Interface Ethernet/USB
  • HO740 Interface IEEE-488 (GPIB), galvanically isolated
  • HZ10S 5 x silicone test lead (measurement connection in black)
  • HZ10R 5 x silicone test lead (measurement connection in red)
  • HZ10B 5 x silicone test lead (measurement connection in blue)
  • HZ13 Interface cable (USB) 1.8 m
  • HZ14 Interface cable (serial) 1:1
  • HZ42 2RU 19’’ Rackmount Kit
  • HZ72 GPIB-Cable 2 m
