Brand: Hameg

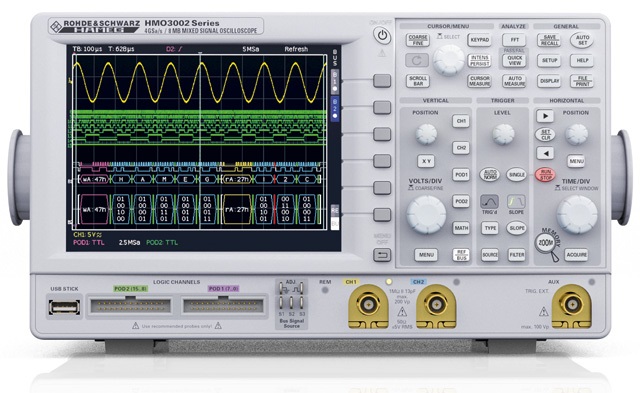

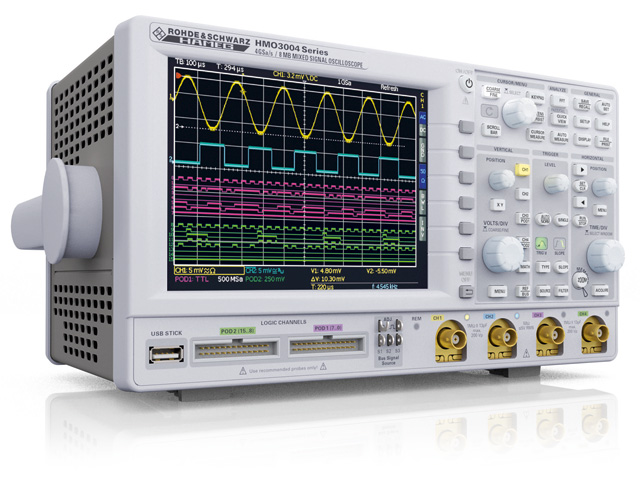

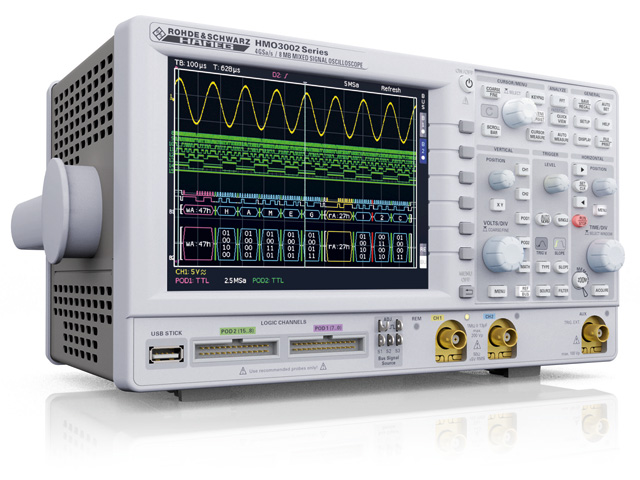

Osciloscop digital 2/4 ch. 300/400/500 MHz Hameg HMO3000

Cod: Hameg HMO3032 HMO3034 HMO3042 HMO3034 HMO3052 HMO3054




Brosura produs PDF, 1.07 Mb


Descriere

Models:
HMO3032  2-Channel 300MHz 4GS/s 8Mpts

HMO3034  4-Channel 300MHz 4GS/s 8Mpts



HMO3042  2-Channel 400MHz 4GS/s 8Mpts

HMO3044  4-Channel 400MHz 4GS/s 8Mpts



HMO3052  2-Channel 500MHz 4GS/s 8Mpts

HMO3054  4-Channel 500MHz 4GS/s 8Mpts



Features

  • 4 GSa /s Real Time, Low Noise Flash A /D Converter
  • 8 MPts Memory, oom up to 200,000:1
  • MSO: Mixed Signal Option HO3508 [HO3516]
  • with 8 [16] Logic Channels
  • Serial Bus Triggeand Hardware accelerated Decode
  • including List View. Options: I2C + SPI + UART/RS-232
  • (HOO10/HOO11), CAN + LIN (HOO12)
  • Vertical Sensitivity 1 mV/div., Offset Control ±0.2"¦Â±20 V
  • 6-Digit Hardware Counter
  • Real-Time FFT (dBm, dBV, Veff), up to 64 kPts
  • Automatic Search fouser-defined Events
  • Pass/Fail Test based on Masks
  • Auto-Measurement: max. 6 Parameters incl. Statistic,
  • Formula Editor, Ratio Cursor
  • Display Range: 12 div. x-Axis, 20 div. y-Axis (VirtualScreen)
  • TriggeModes: Slope, Video, Pulsewidth, Logic, Delayed,
  • Event, Hold-Off
  • Automatically omanually adjustable Memory Depth
  • 3 x USB foMass Storage and Remote Control



All models in the HMO3000 series with 300 MHz or 400 MHz can be extended via software upgrades to 500 MHz bandwidth whenever required:



For 300 MHz models with options HOO352 (2 channels) and HOO354 (4 channels).

For 400 MHz models with options HOO452 (2 channels) and HOO454 (4 channels).



Accesorii standard

  • Line cord
  • printed operating manual
  • 2/4 Probes 10:1 with attenuation ID (HZ350 400/300MHz, HZ355 500MHz)
  • Software-CD


Optiuni recomandate

  • HOO10 Serial bus trigger and hardware accelerated decode,
  • I2C, SPI, UART/RS-232 on Analog channels and Logic channel
  • HOO11 Serial bus trigger and hardware accelerated decode,
  • I2C, SPI, UART/RS-232 on Analog channels
  • HOO12 Serial bus trigger and hardware accelerated decode,
  • CAN, LIN on Logic channels and Analog channels
  • HO3508 Active 8 Channel Logic Probe
  • HO3516 2 x HO3508, active 8 Channel Logic Probes
  • HO720 Dual-Interface USB-Device/RS-232
  • HO740 Interface IEEE-488 (GPIB), galvanically isolated
  • HZ46 4RU 19" Rackmount Kit
  • HZ99 Carrying Case for protection and transport
  • HZ355 Slimline Probe 10:1 with automatic identification
  • HZ355DU Upgrade from 2 x HZ350 to 2 x HZ355
  • HZO20 High voltage probe 1000:1 (400MHz, 1000Vrms)
  • HZO30 Active probe 1GHz (0.9pF, 1Ω, including many accessories)
  • HZO40 Active differential Probe 200MHz (10:1, 3,5pF, 1Ω)
  • HZO41 Active differential Probe 800MHz (10:1, 1pF, 200kΩ)
  • HZO50 AC/DC Current probe 30A, DC"¦100kHz
  • HZO51 AC/DC Current probe 100/1000A, DC"¦20kHz
