Brand: Hameg

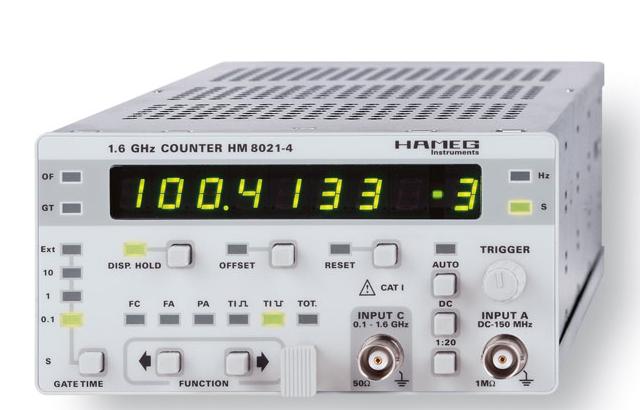

Frecventmetru numeric 1.6 GHz Hameg HM8021-4

Cod: Hameg HM8021-4




Brosura produs PDF, 0.28 Mb

Descriere

  • Measurement Range 0Hz…1.6GHz
  • 10MHz Time Base with 1ppm Stability (TCXO)
  • Input A: Input Impedance 1MO, Sensitivity 20mVrms
  • Input C: Input Impedance 50O, Sensitivity 30mVrms
  • 8-Digit Resolution for 10s Measuring Time
  • Time Interval Resolution up to 10ps
  • External Gate Input (with Option HO801)
  • Mainframe HM8001-2 required for operation


Accesorii standard

  • Operator’s Manual


Optiuni recomandate

  • HZ20 Adapter, BNC to 4mm banana
  • HZ24 Attenuators 50 O (3/6/10/20 dB)
  • HZ33 Test Cable 50 O (BNC-BNC) 0.5 m
  • HZ34 Test Cable 50 O (BNC-BNC) 1.0 m
