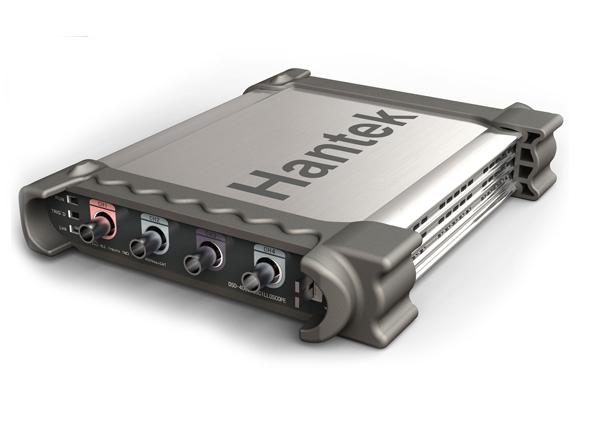

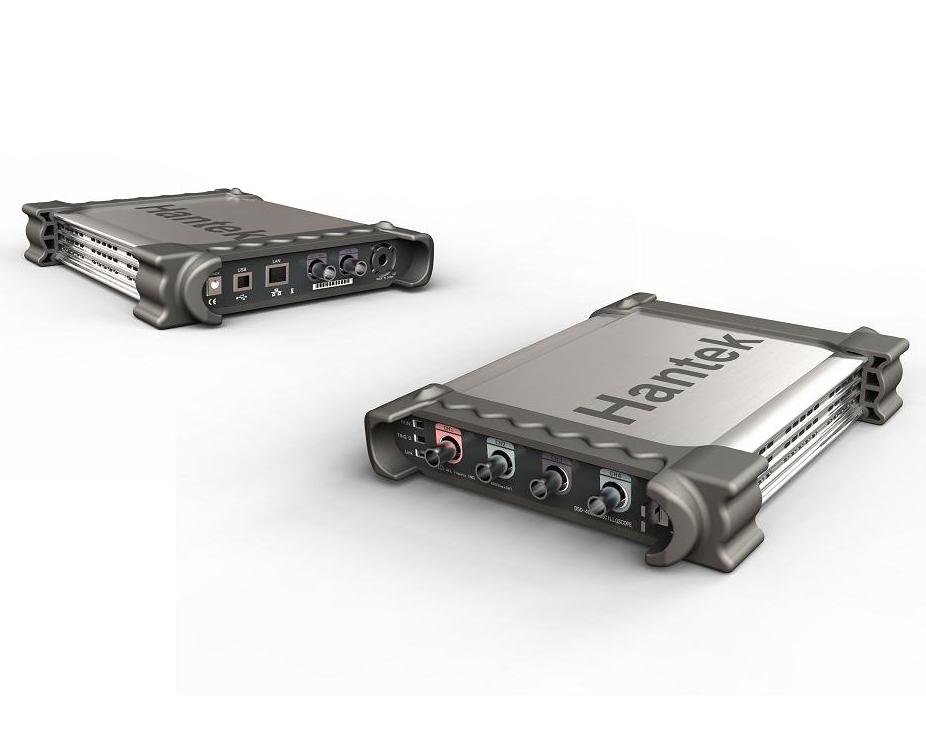

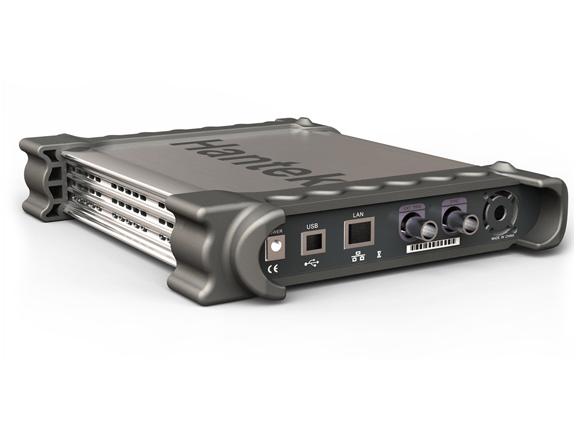

Hantek DSO3000 Series (200MSa/s) Osciloscop USB

• Utilizes SMT technology.
• LCD display to show voltage and current.
• LCD display to show regulated voltage and current.
• Green/Amber LCD back-light selectable.



• High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
• 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer
• 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
• FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.



• 14bits D/A resolution.
• USB2.0 interface, no external power source required, easy to use.
• Automatic calibration.
• One computer can connect many DDS, extend channel easily.



• Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
• Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
• Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
• Light Weight and Portable. Suitable for Human Body's Design;



• AC/DC frequency range: Up to 20 kHz
• Effective Measurement Range: 20mA to 65A DC
• It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.



• Excellent Industrial Design. Direct key for Each Channel, time base, Trigger and DMM, easy to operate.
• Large 5.7 inch TFT Color LCD Display, LED backlight, Display clearly.
• USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option; Easy to control by PC or long-distance.
• Battery Power Operation (Installed) Industrial Design.
• Save waveform in the following: jpg/bmp graphic file, MS excel/word file.



• Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
• Record and replay of more than 1000 waveforms.
• Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
• USB Host/Device 2.0 full-speed interface; support removable disk; WIFI/LAN Option, easy to control by PC or long-distance.
• Waveform data can be output in WORD，EXCEL, BMP, JPG as time and voltage.



• 80-250MHz bandwidth，minimum range 500μV /div，1GS/s sample rate.
• Over 32 types of auto measurement function
• Advanced digital trigger system, high trigger sensitivity.
• Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.



• Ignition: primary and secondary
• Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
• Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
• Performer: Petrol/Diesel
• Starter and charging circuits



• Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.
