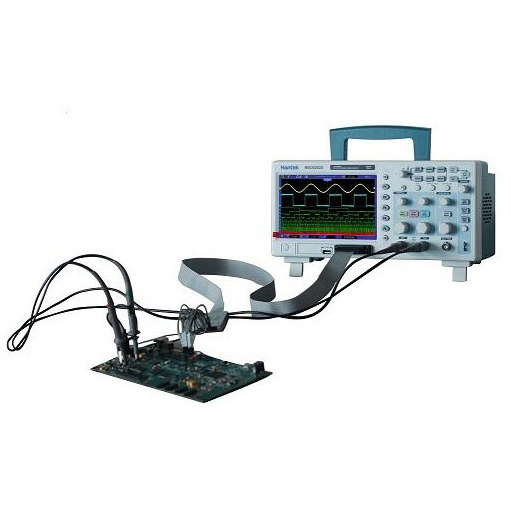

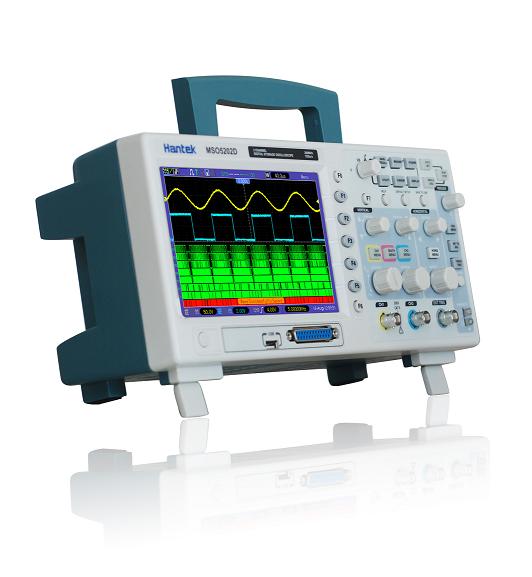

Hantek MSO5000D Osciloscop digital cu analizor logic

Cod: Hantek MSO5000D Series




Brosura produs PDF, 2.68 Mb


Descriere

MSO5000D Series

Mixed Signal Oscilloscope;
Bandwidth:60-200MHz;
Real Time Sample Rate:1GSa/s;Record Length: 1M;
Large (7.0-inch) color display,WVGA(800x480);
16 channels Logic Analyzer,500MSa/s sample rate;
Power Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.




Features:

  • 200/100/60MHz bandwidth
  • 1GSa/s Real Time sample rate
  • Large (7.0-inch) color display,WVGA(800x480)
  • Record length up to 1M
  • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
  • USB host and device connectivity, standard
  • Multiple automatic measurements
  • Four math functions, including FFTs standard
  • VGA Optional
