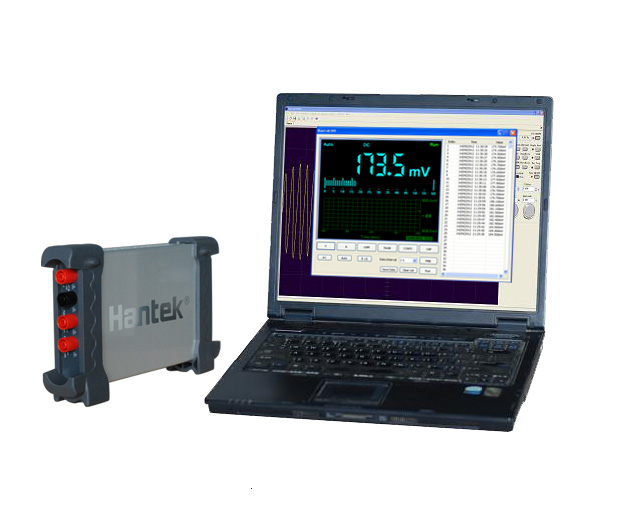

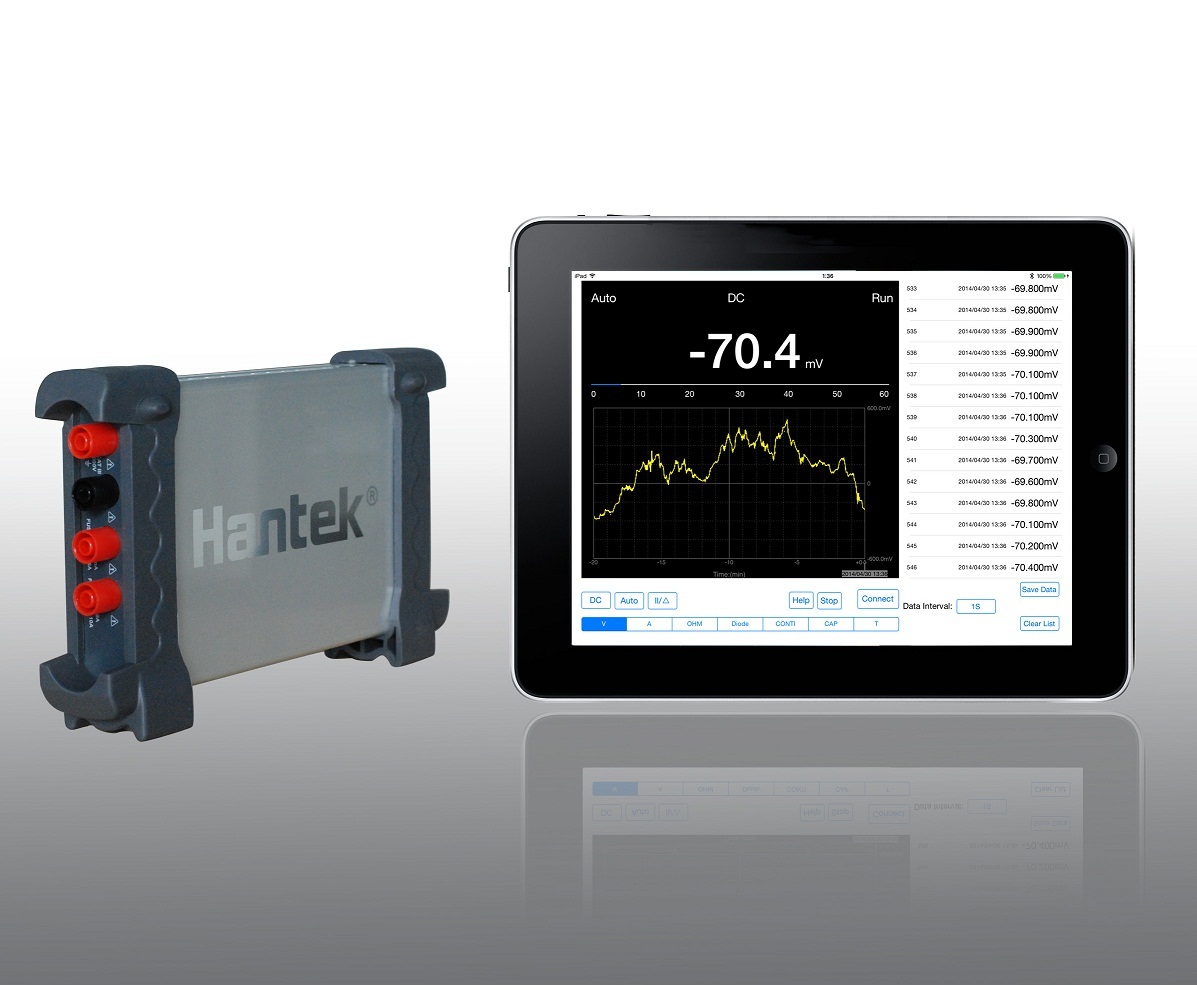

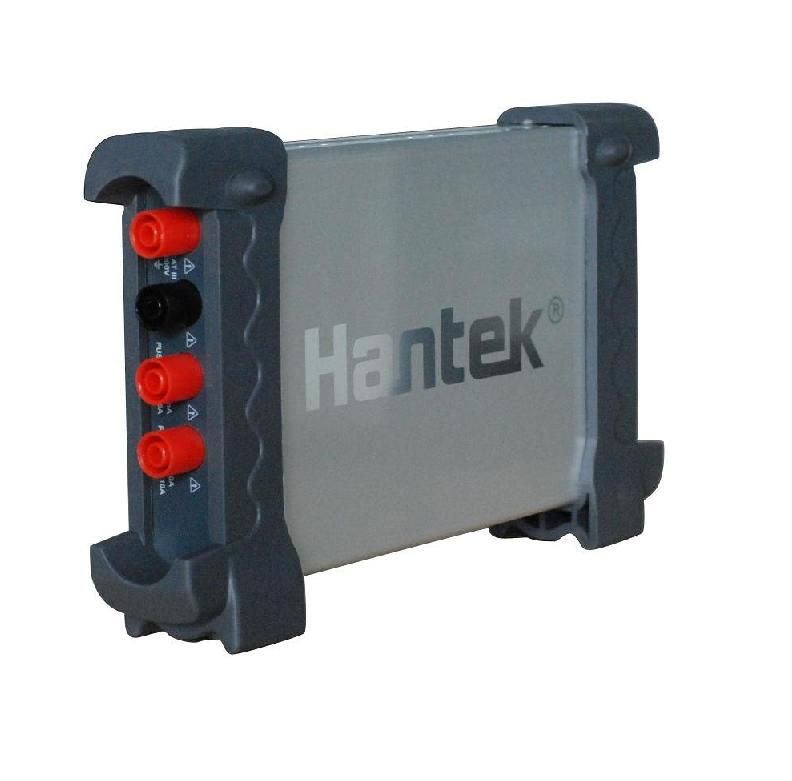

Hantek365A/B/C/D/E/F Sistem de achizitii de date

• Frequency range :9KHz~3.2GHz;
• Optimal sensitivity: -161dBm;
• RBW:10Hz to 1MHz.
• High protection portable design, sturdy and durable



• AC/DC frequency range: Up to 20 kHz
• Effective Measurement Range: 20mA to 65A DC
• It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.



• Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.



• More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.



• Be suitable for notebook computer, product line maintenance, be used easily on business.
• Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
• High performance, 48MS/s real-time sampling, 20MHz bandwidth.
• 16Channels Logic Analyzer, 10MHz Bandwidth;



• First Diagnosis(Cranking Exhaust Diagnosis)
• Ignition Action(Current/Voltage)
• The Sensor(Air Flow Meter,Camshaft,Crankshaftˇ)
• Bus Diagnosis(CAN Bus Data View)
• Performer(Petrol/Diesel)



• Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
• Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
• Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
• Light Weight and Portable. Suitable for Human Body's Design;



• Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves.
• Plug play USB interface.
• Simple, handy and flexible control software.
• Software support: Windows 2000, Windows 7, Windows XP, Win8.



• The waveform data could be output to EXCEL,BMP,JPG.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• Provide secondary development library DLL; Provide LabviewVBVCQT developing examples.



• Ignition: primary and secondary
• Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
• Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
• Performer: Petrol/Diesel
• Starter and charging circuits
