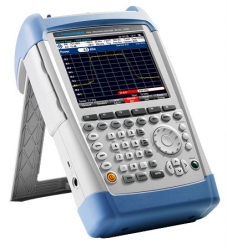

9 kHz to 3 GHz Frequency range
200 Hz to 1 MHz RBW
1 Hz Frequency counter resolution
+33 dBm Maximum input level
Ergonomic user interface
Remote control via USB interface
Electronic attenuator with 2 dB steps
High picture refresh rate
Locating EMC weak spots
Scalar network analysis
Measurement functions: signal tracking, TOI measurement, marker and delta markers, noise markers, signal bandwidth
Stores up to 10 set-ups and 5 traces
Small size, Compact housing with flexible handle
