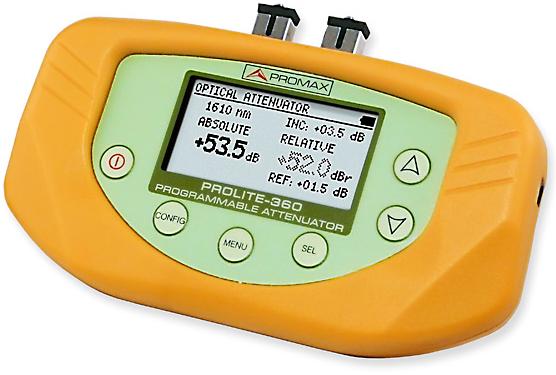

The PROLITE-360 is a programmable calibrated optical attenuator delivering up to 60 dB. It is designed to work in R+D labs, in manufacturing processes and it is especially useful for fieldwork, due to its portability and ease of use. It is adapted to FTTH measurement requirements and in general, at installations where you must attenuate an optical signal in a calibrated way. It includes PC software to update firmware, as well as remote control and sequence programming for complex attenuation.

Access all data from a single screen
Up to 10 programmable attenuation sequences
Low insertion loss (< 2 dB)
Bi-directional
Built-in Li-Ion battery, mains adapter included
Calibrated for standard FTTH networks wavelengths
Quick response
Attenuation is indicated in both absolute and relative modes
Pocket size, graphic LCD screen
USB to PC connection

PROLITE-360 applications:
Optical links Test and Certification
Power meters calibration
System margin test
Losses simulator
Applications in R+D laboratories, factories and fieldwork

Wavelength margin	From 1100 to 1650 nm
Attenuation range	From 0 to 60 dB
Resolution	0.1 dB
Insertion loss	< 2dB
Accuracy	0.5 dB (0.8 dB for att. > 40 dB)
Repeatability	0.2 dB
Return loss	> 40 dB
Maximum input level	23 dBm
Type of fibre optic	9/125 µm

Alte produse PROMAX

TRANSMODULATOR DVB-T -> DVB-T PROMAX DT-212

• RF INPUTS: 2 independent DVB-T inputs
• RF OUTPUT: 2 combined independent DVB-T multiplexes
• PID Filtering with Filtering Table up to 32 PID
• direct COFDM input that can be tuned to any multiplex
• ouput in the UHF band
• regenerate the quality of the multiplex when received from a noisy source
• change the input channel to another channel with total quality preservation

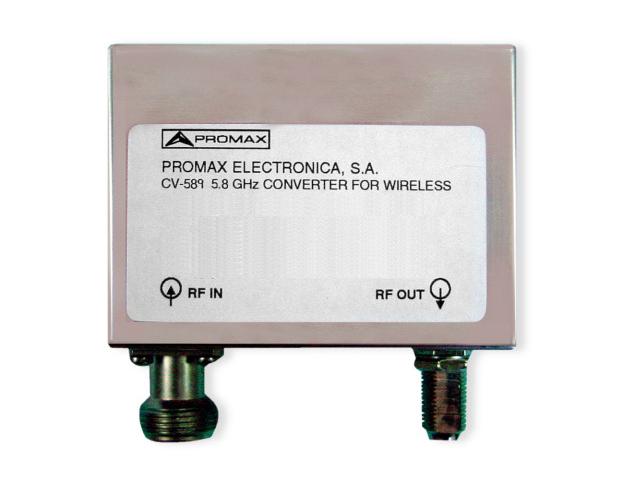

CONVERTOR BANDA WIRELESS 5.7..5.8 GHZ -> 1.5..1.6 GHZ PROMAX CV-589
