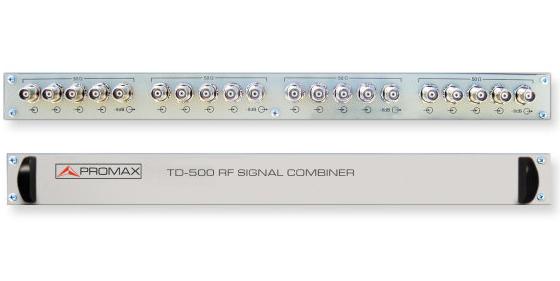

The TD-500 is a general purpose DVB-T combinator and distributor to be assembled in a 19-inches 1U-height rack. The equipment, in its basic configuration, has two identical internal modules including 4 inputs and 1 output or 1 input and 4 outputs. Anyone of these modules can be used as combinator or distributor.

The equipment can be delivered with different configurations and offers up to 4 combinator / distributor modules with 2 and 4 inputs (refer to PROMAX for availability). Each one of these modules is bi-directional, being those of 2 input/output that which offers less loss.

The basic TD-500 can combine 4 RF signals coming from 4 modulators and to distribute the combined RF signal to 4 distribution lines.

FREQUENCY RANGE	45 MHz to 875 MHz
TOTAL INSERTION LOSSES 45 MHz to 50 MHz 50 MHz to 450 MHz 450MHz to 900 MHz	6.9 dB (typical) / 7.3 dB (max.) 7.3 dB (typical) / 8.1 dB (max.) 8.1 dB (typical) / 9.3 dB (max.)
ISOLATION 45 MHz to 50 MHz 50 MHz to 450 MHz 450MHz to 900 MHz	22 dB (typical) / 20 dB (min.) 28 dB (typical) / 20 dB (min.) 22 dB (typical) / 15 dB (min.)
RETURN LOSSES 45 MHz to 875 MHz	25 dB (typical), 16 dB (min.)
COMBINATOR MODE	4 inputs, 1 output (RF 50? BNC female)
COMBINATOR MODE	1 input, 4 outputs (RF 50? BNC female)
