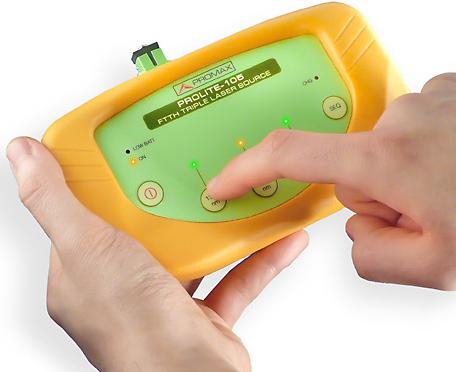

Triple laser source to meet any requeriment of fibre optics for FTTHx networks at wavelengths 1310, 1490 and 1550 nm.

Low-frequency modulation selectable for each wavelength. Sequential mode for automatic measurements when combining with a PROLITE-65.

GENERATED WAVELENGTHS	1310 nm, 1490 nm and 1550 nm
SPECTRAL WIDTH (DFB laser)	< 1nm.
OUTPUT CONNECTOR	SC / APC
INTERNAL MODULATION	1310 nm: 270 Hz. 1490 nm: 1 kHz. 1550 nm: 2 kHz.
AUTONOMY	25 h. aprox. in sequential mode
