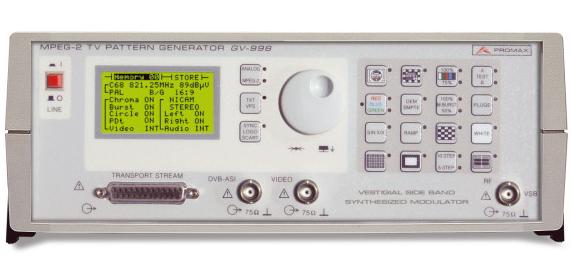

Generator Video Analog + Transport Stream Digital MPEG-2 Promax GV-998

Cod: Promax GV-998




Brosura produs PDF, 0.16 Mb

Descriere

The Multistandard and Multisystem Generator of analogue and digital television signals GV-998 with MPEG-2 format TS output, is able to generate the necessary signals to verify the most common anomalies that can occur in Digital TV receivers. The system has an analogue external input of audio and video.





  • Multi-standard and multi-system analogue TV signals
  • Test Signal generation in MPEG-2, SPI or ASI format
  • The Test Signal contains valid audio and video programs
  • External analogue and digital audio / video inputs
  • Moving MPEG-2 video pattern generation
  • MPEG logos
  • RS-232 remote operation





TS GENERATION

MPEG-2 format, audio/video valid program

SOUND

Variable frequency for TV decoder verification

ANALOGUE TV

Multistandard and multisystem signal generation
