Transmitator Convertor DVB-T -> Fibra Optica Promax DT-610

Cod: Promax DT-610




Brosura produs PDF, 0.21 Mb

Descriere

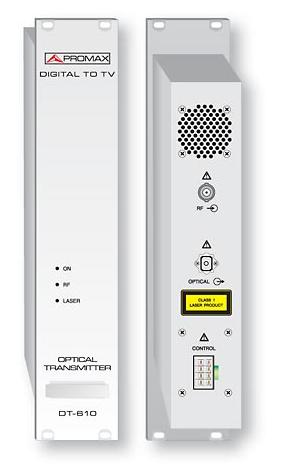

The DT-610 module is an optical transmitter that converts RF signals into optical so that they can be transmitted over fibre-optics cables.

The laser diode modulation is optimized for DVB-T and DVB-C digital channel transmission. It is suitable for optical links over distances up to 20 km (depending on the number of channels used in the system).





RF INPUT
  Frequency margin

  Input level


From 470 to 862 MHz
From 50 to 1000 MHz (please ask for other options)
From -8 to -32 dBm (MER>38 dB)

FO OUTPUT
  Wavelength
  Laser type
  Modulation
  Output level
  Connector
  Fibre
  Indicators


1550 ±20 nm (other wavelength as option)
DFB
Direct amplitude modulation
+ 4.5 dBm
SC/APC
9/125, SMF28 or equivalent
Laser state



Optiuni recomandate

DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B







RECEIVERS WITH ASI-TS OUTPUT

DT-302

Dual DVB-S/S2 receiver with CAM, ASI-TS output.

DT-312

Dual DVB-T receiver, ASI-TS output.

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).







IP STREAMERS

DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)







COMBINERS - AMPLIFIERS

DT-700

4x1 quadruple DVB-T combiner .

DT-710

8 input DVB-T combiner with a 117 dBuV (+10 dBm) one

 single output.

DT-722

4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm)

 one single output.

DT-730

DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).

DT-610

Optical transmitter module

DT-620

Optical receiver module
