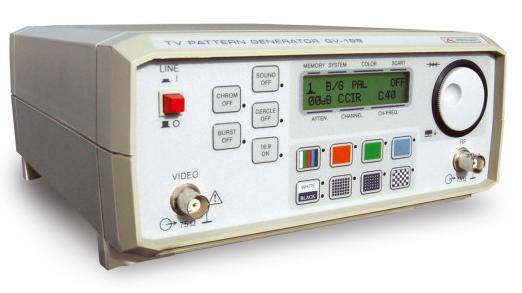

Generator mira TV color PAL/ NTSC/ SECAM Promax GV-198

Cod: Promax GV-198




Brosura produs PDF, 0.06 Mb

Descriere

The GV-198 video generator has nine pattern charts available, allowing essential settings to be made in any television receiver, as well as to detect abnormalities through a visual picture examination. The charts can be in format 4:3 and 16:9. The GV-198 is designed to cover the basic standards: NTSC / PAL / SECAM. It has EUROCONNECTOR with the controlled commutation signal, as well as a composite synchronism output.





  • PAL B/G, D/K, I, N, NTSC M, SECAM B/G, D/K, L Standards
  • Direct acces keys for nine different chars
  • 4:3 & 16:9 formats
  • Addition of an electronic circle
  • Economy range
  • Double side band modulation
  • Tuning by frequency or CCIR / OIRT / FCC channel tables
  • Multi-standard and multi-system
  • Up to 10 available memories





STANDARD

PAL B/G, D/K, I, N
NTSC
M
SECAM B/G, D/K, L

OUTPUTS

Composite video signals, R-G-B, Trigger, Low frequency, Radiofrequency

TEST PICTURES

Colour bars
Red/Green/Blue/White/Black pattern
Checkboard
Grid
Dots
