Receptor digital satelit DVB-S/S2 -> ASI-Transport Stream Promax DT-302

Cod: Promax DT-302




Brosura produs PDF, 0.18 Mb

Descriere

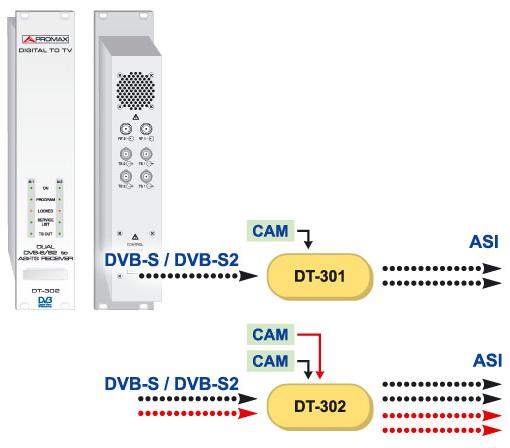

The DT-302 (dual) modules are digital satellite receivers compatible with DVB-S and DVB-S2 standards. They can receive a satellite transponder and deliver the transport stream in the form of TS-ASI.

Each satellite receiver has two identical TS-ASI outputs. This is because satellite transponders can typically allocate a higher number of services than DVB-T mutiplexes and therefore more than one COFDM modulator may be required if we want to deliver all services of the transponder to the TV distribution system.

Each satellite receiver allows inserting a Conditional Access Module (CAM). Several types of CAM can be used for de-encrypting one or more of the available encrypted programmes and being distributed (see DT-902).





DVB-S/S2 IF INPUT
  Connector

2 independent DVB-S/S2 inputs
F-Type female, Impedance 75 ?

TS OUTPUT
  Connector

2 double independent DVB-ASI outputs
BNC female, Impedance 75 ?

TS PROCESSING

Simultaneous decryption of multiples services

 (using a proper CAM module, see DT-902).
Selection of decrypted services by name

CONFIGURATION AND
POWER SUPPLY

Through the DT-800 Control Module. Control

can be made remotely from a PC



Optiuni recomandate

DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B







RECEIVERS WITH ASI-TS OUTPUT

DT-302

Dual DVB-S/S2 receiver with CAM, ASI-TS output.

DT-312

Dual DVB-T receiver, ASI-TS output.

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).







IP STREAMERS

DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)







COMBINERS - AMPLIFIERS

DT-700

4x1 quadruple DVB-T combiner .

DT-710

8 input DVB-T combiner with a 117 dBuV (+10 dBm) one

 single output.

DT-722

4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm)

 one single output.

DT-730

DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).

DT-610

Optical transmitter module

DT-620

Optical receiver module
