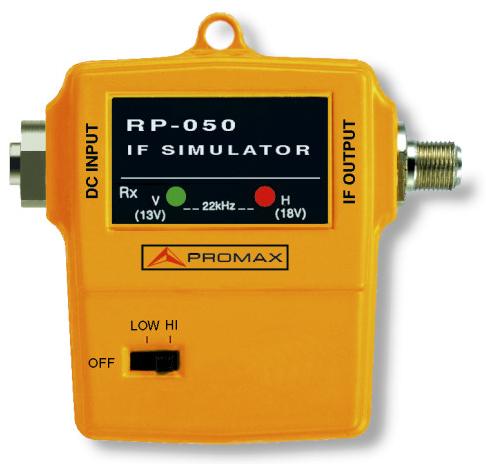

The RP-050 satellite IF and UHF simulator is a radio frequency pilot generator that allows to test the frequency response of an entire television system prior to having the antennas or the Headend installed. It can be used for the test and certification of TV and satellite wiring, headend trouble shooting and many other.

L BAND TEST PILOTS	1050 / 1575 / 2100 MHz
UHF TEST PILOT	537.5 MHz
LEVEL	LOW MODE: 90 dBmV ± 4 dB HIGH MODE: 105 dBmV ± 4 dB
SIGNAL DETECTION	22 kHz
SUPPLIED VOLTAGE DET.	13 / 18 V in a coaxial cable
