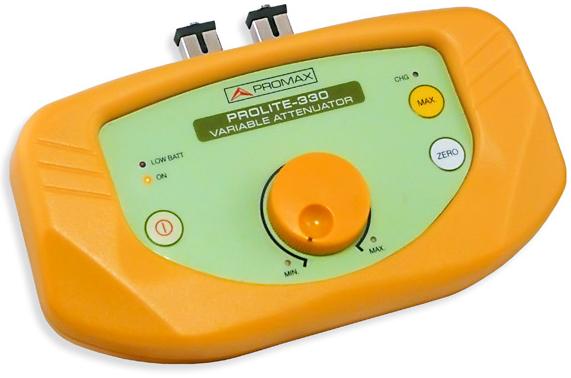

Atenuator variabil fibra optica 30 dB FTTH Promax PROLITE-330

Cod: Promax PROLITE-330




Brosura produs PDF, 0.1 Mb

Descriere

The PROLITE-330 is a variable optical attenuator delivering more than 30 dB. It is a very low cost instrument designed for general use in R+D labs as well as field applications when a variable attenuation of signal is required. You can know exactly the chosen attenuation in combination with a power meter. Specially designed for FTTH networks and devices.



  • Extremely easy to use
  • Low Insertion Loss (< 1 dB)
  • Bi-directional
  • Long battery life
  • Quick response
  • Direct access to zero and maximum attenuation
  • > 30 dB in all 1110-1650 nm range

    PROLITE-330 applications:
  • R+D labs, manufacturing and field
  • Optical link tests
  • System range tests
  • Losses simulation





Wavelength range

From 1100 to 1650 nm

Attenuation range

From 0 to 30 dB min

Resolution

Continuous

Insertion loss

< 1dB

Return loss

> 40dB

Maximum input level

23 dBm

Type of fibre optics

9/125 µm
