Generator semnal zgomot alb gaussian de test retea cablu coaxial 1..2200 MHz Promax NG-283

Cod: Promax NG-283




Brosura produs PDF, 0.21 Mb

Descriere

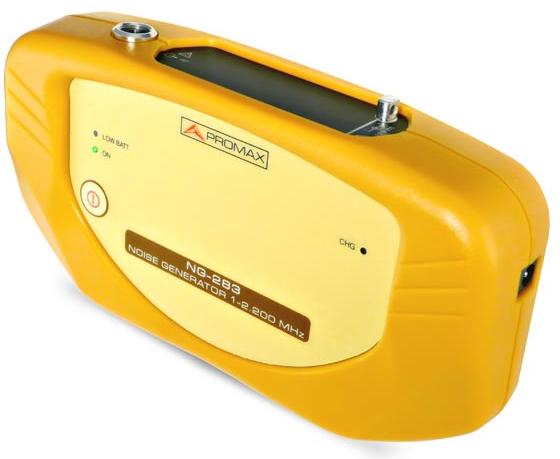

The NG-283 is a handheld broadband white gaussian noise generator for testing coaxial networks, components and aligning coaxial cable at all frequencies between 1 and 2200 MHz.

Using a signal level meter or spectrum analyzer a frequency response of a coaxial section can be measured for TV
?Terrestrial and Satellite bands.





RF SIGNAL

White gaussian noise

FREQUENCY RANGE

From 1 MHz to 2200 MHz

OUTPUT POWER

80 dBµV (-29 dBm) 8 MHz bandwidth / 75 O

SPECTRAL DENSITY

-98 dBm/Hz

TOTAL POWER

< 0 dBm

FLATNESS

± 2 dB from 1 to 2200 MHz
