Analizor semnal si Spectru 4K Ultra-HD TV PROMAX TV EXPLORER NG

Cod: TV-EXPLORER-NG 4K Ultra-HD UHD




Brosura produs PDF, 1.61 Mb


Descriere

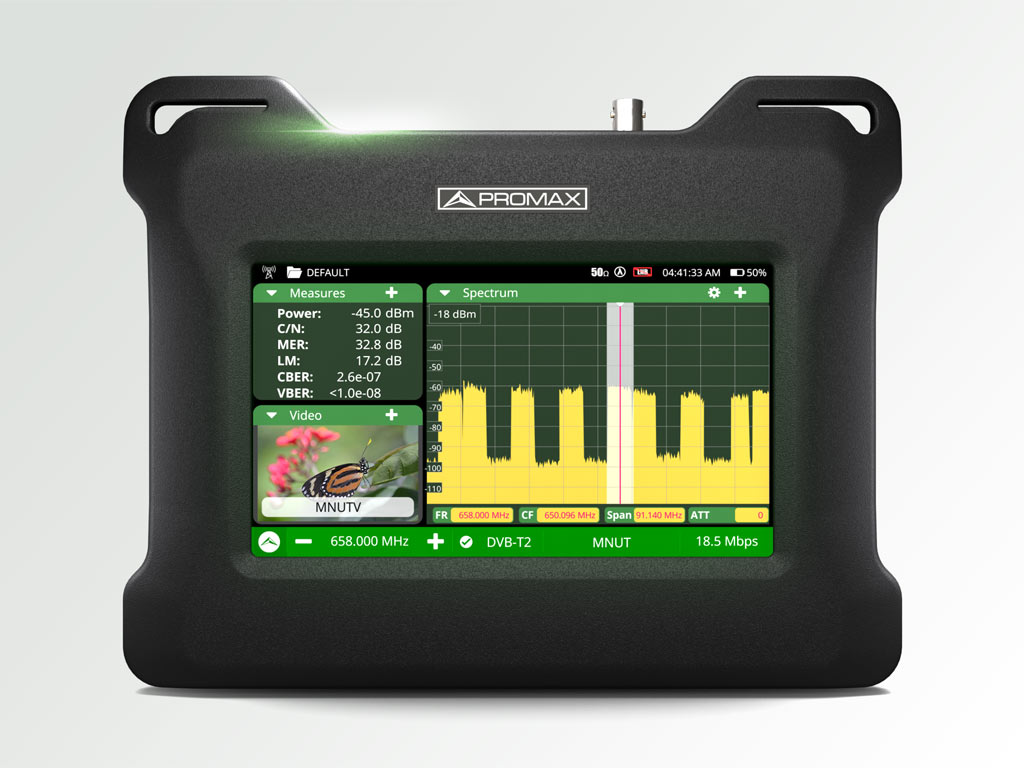

TV EXPLORER NG: Analizator universal de spectru TV

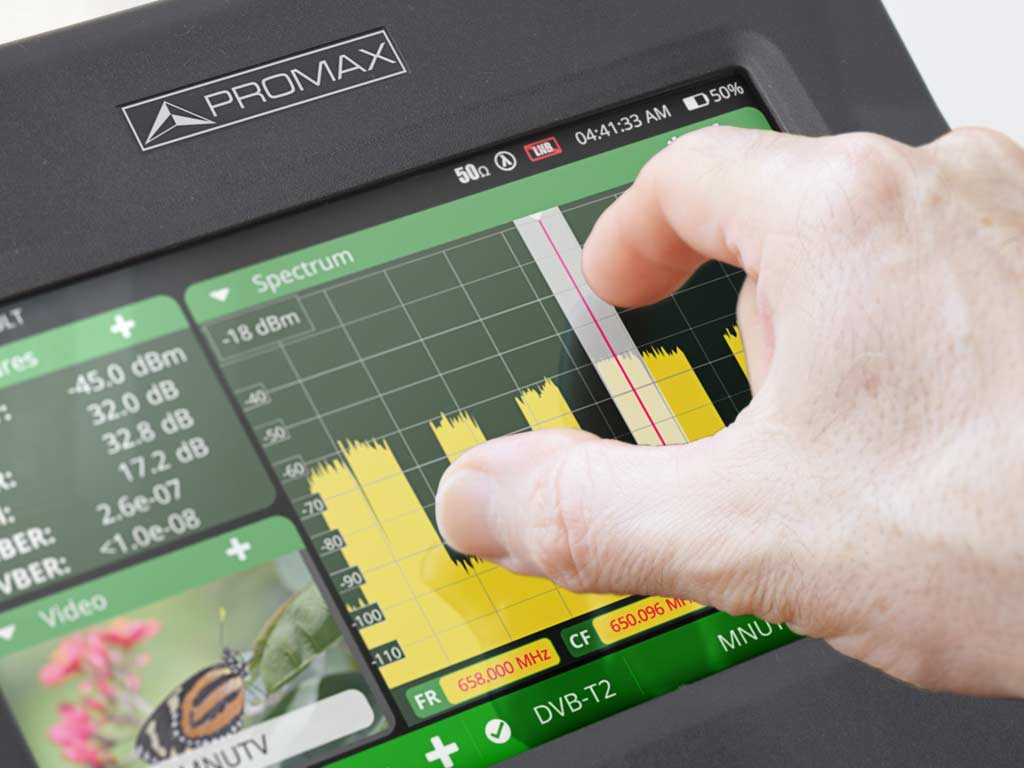

Vă prezentăm noua generație de TV EXPLORER, acum cu suport nativ 4K, DVB-T2, ISDB-T/Tb și opțional ATSC 3.0 și DVB-S2x. Interfața sa multi-touch oferă o intuitivitate similară cu cea a unui smartphone, facilitând navigarea.

STANDARDE DE TRANSMISIUNE
TV / Radio digital terestru DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (segment complet / 1sec), DAB, DAB+ (opțional)
Cablu digital DVB-C, DVB-C2, J.83 anexa B, 16/64/256-QAM
Satelit digital DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (opțional)
Analogic Analogic terestru (PAL, SECAM, NTSC)
ANALIZATOR DE SPECTR
De la 5 la 1000 MHz (Terestru)
De la 950 la 2150 MHz (Satelit)

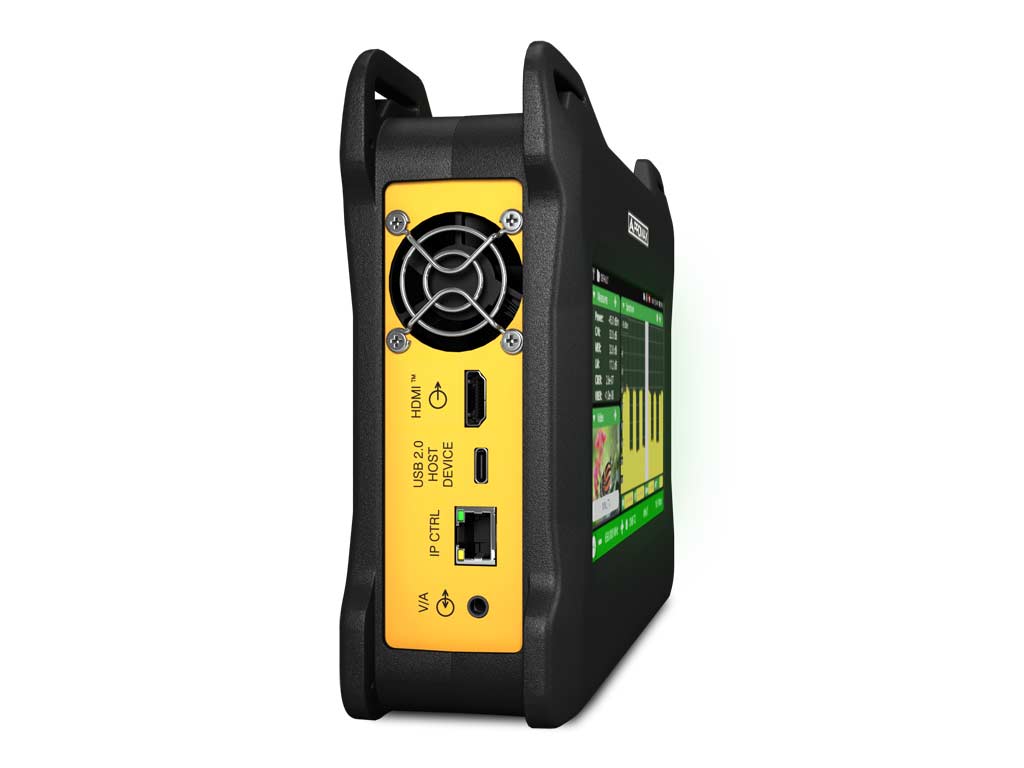

INTRĂRI ȘI IEȘIRI
Intrare RF universală (BNC, mamă 75 Ω)
Intrare audio/video analogică (mufă 3,5 mm)
Ieșire HDMI™ (v1.4b până la (3840x2160 pixeli la 30 Hz)
Master/dispozitiv USB 2.0 (tip C). Stocare în masă și comenzi de la distanță
Ethernet (RJ45) pentru webControl și comenzi de la distanță
Intrare optică (FC/APC, mamă)
Ieșire audio stereo pentru căști (jack 3,5 mm)
Gazdă USB 3.0 (tip A, dispozitive USB-CDC)
FUNCȚII
Diagramă constelație
Analiza dinamică a ecourilor
StealthID (identificare instantanee a parametrilor de reglare)
PLS (Physical Layer Scrambling - Bruiere strat fizic)
Analizor de spectru ultra rapid
Decodor 4K
Menținere MAX și MIN
Măsurare și decodare RDS FM (opțional)
Capturi de ecran și înregistrator de date pentru rapoarte de măsurare
WiFi
Telecomandă (webControl)
MER prin purtătoare
Înregistrare TS
Înregistrare ALP
Măsurare putere optică pe întreaga bandă
Memorie internă de 8 GB, extensibilă prin USB
Descoperire posturi FM (opțional).
Căutare prin scanare nevăzută.
OPȚIUNI
Standarde ATSC 1.0 și ATSC 3.0.
Fibră optică: Contor selectiv de putere optică
Măsurători avansate radio digital DAB/DAB+
Măsurători avansate radio FM
Analiza acoperirii semnalului (test drive) cu GPS
