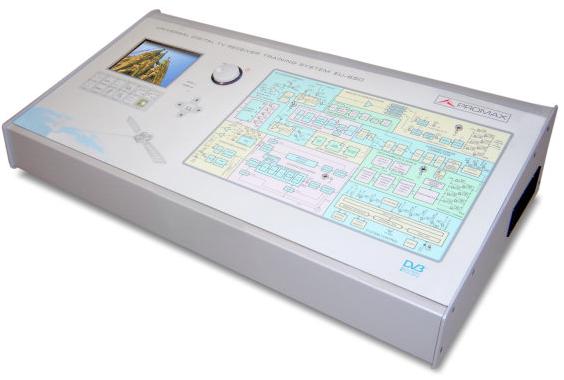

Sistem training Receptie TV Digital Promax EU-850

Cod: Promax EU-850




Brosura produs PDF, 0.25 Mb

Descriere

The Trainer Universal Digital TV Receiver EU-850 is a didactic equipment oriented to the learning of the theoretical and practical contents about the operation of the digital television receivers (satellite, terrestrial and cable) as well as the basis and the processes related to the transmission, reception and distribution of the digital television (COFDM, QPSK and QAM).

The equipment includes a 5"-TFT hi-res graphical display, that allows the visualisation of the digital channels tuned (and the analogue channels when terrestrial reception), and also offers all the features of a professional field strength meter.





TUNING

45 to 865 MHz and from 950 to 2150 MHz

RECEPTION
   ANALOGUE
   DIGITAL


Terrestrial (PAL, SECAM and NTSC systems)
Terrestrial (COFDM), Satellite (QPSK) and Cable (QAM)
Video: MPEG-2 / DVB (MP@ML) format
Service list decodification. List of services and PIDs

DIGITAL MEASUREMENTS
   DVB-T (COFDM)
   DVB-C (QAM)
   DVB-S (QPSK)


Power, CBER, VBER, MER, C/N
Power, BER, MER, C/N
Power, CBER, VBER, MER, C/N

FUNCTIONS

Identification of Analogue and Digital signals

automatically, Active block diagram with Test Points,

External Units power supply, signal of 22 kHz and

DiSEqC 1.2
Spectrum analyser
