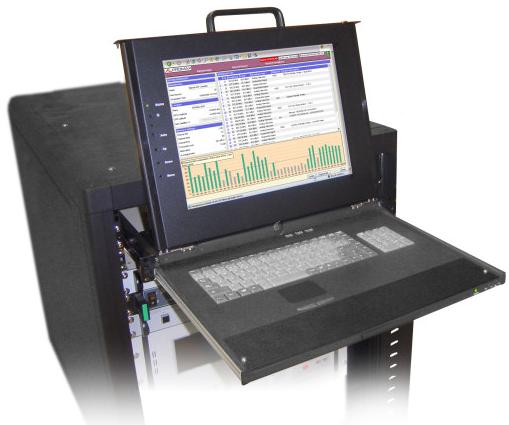

Sistem monitorizare & detectie & masura Radio si TV Digital Promax PROWATCH Deide3

Cod: Promax PROWATCH Deide3




Brosura produs PDF, 0.28 Mb

Descriere

PROMAX is presenting the new PROWATCH DEIDE3 equipment, based on technology developed on our R+D labs. PROWATCH DEIDE3 equipment, are detection, identification and continuous monitoring systems for radio and digital TV signals with remote control.

  • Detection of radio signals received in a specific location, in the radio as well as in the digital and analogue television bands.
  • Identification of each one of the signals received, obtaining the information provided by the radio broadcaster either in the signal itself or for visual and/or sound identification.
  • Permanent monitoring of a variable area of the radio spectrum, carrying out an analysis of the detected variations.
  • The equipment or measuring station can carry out the previous operations in local mode or through remote control by other analogue equipment.
  • It works with digital radio (DAB), terrestrial digital television (TDT) according to the DVB-T (COFDM modulation) standard, FM-RDS radio and analogue TV signals.
