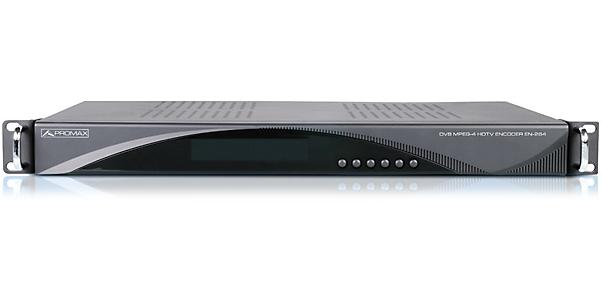

Encoder & Transcoder H.264/AVC MPEG-4 HD-SDI HDMI YPbPr RGB CVBS Promax EN-264

Cod: Promax EN-264




Brosura produs PDF, 0.12 Mb

Descriere

PROMAX EN-264 is a DVB H.264/AVC Encoder plus the MPEG-2 to H.264/AVC Transcoder. Integrated with the TSoIP board, the PROMAX EN-264 accepts TS over IP or ASI input for transcoding, or alternatively accepts HD-SDI, HDMI, YPbPr  (component) or CVBS (composite video) input for encoding, the final output is available in IP or ASI format. With extraordinary picture quality and significant bandwidth liberation, is the best choice for higher EN-264 performance encoding and migration from MPEG-2 to H.264.

  • H.264/AVC (MPEG-4 part 10), High profile, Level 4.0, 4:2:0 Chrominance sampling
  • TS to TS Transcoding (MPEG-2 HD to H.264 HD/SD or MPEG-2 SD to H.264 SD)
  • MPEG-1 Audio Layer1 & Layer2 encoding
  • 1x Dolby Digital (AC-3) or 1x MPEG-1 audio pass through transcoding
  • Supports full HD 1080i encoding
  • Extensive video pre-processing solutions
  • Best possible picture quality from 2.0 Mbit/s to 20 Mbit/s
  • 1x Stereo pair analogue XRL Balance audio input, or digital AES/EBU audio input option
  • HD-SDI, HDMI, YPbPr/RGB video input interface
  • Full-Duplex TS over IP I/O, RTP protocol ready for Unicast and Multicast (does not require external encoder)
  • ASI input and output
  • SNMP Ethernet Management



VIDEO
  Video input interface
  Video Compression
  Bit rate
  Frame rate
  Resolution


HD-SDI, HDMI, YPbPr (component), CVBS (composite video)
H.264 High Profile / Level 4.0 Half-Duplex Codec
20Mbps (max.)
1fps-25/30fps
1920×1080×60i/50i, 1440×1080×60i/50i, 1280×720×60p/50p, 720×480×60i, 720×576×50i

AUDIO
  Audio input Interface
  Audio Compression Format


Stereo RCA female, 600 O
MPEG-1 Audio Layer 1 & Layer 2 encoding
Dolby Digital(AC-3) pass-through
