Modulator COFDM dual Transport Stream-ASI -> DVB-T multiplexat Promax DT-102

Cod: Promax DT-102




Brosura produs PDF, 0.19 Mb

Descriere

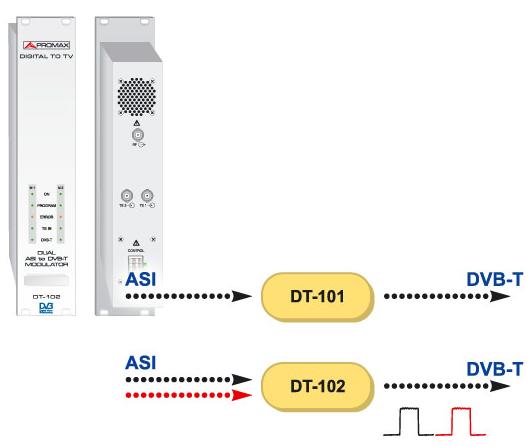

DT-102 (dual) modules are COFDM modulators compatible with DVB-T standard. They have TS-ASI input and RF output in the UHF band and are agile in frequency and output level. Inputs can contain services in all sorts of formats: SD, HD, MPEG-2, MPEG-4, etc.

With PROMAX exclusive PID filtering function the user can remove video, audio or data services from the original Transport Stream. In case of using the DT-302 as a receiver, the system allows to reduce bit rate of the incoming satellite transponders to values that can be used in COFDM.

The dual DVB-T modulator (DT-102), includes an internal combiner that delivers a single DVB-T output with high C/N. This feature gives great robustness to the signal, allowing adding RF amplifiers in cascade during distribution with minimal loss of signal quality.





TS INPUT
  Connector

2 DVB-ASI independent inputs
BNC female, Impedance 75 ?

RF OUTPUT
  Connectors

2 independent combined DVB-T multiplex
BNC female, Impedance 75 ?

TS PROCESSING
  Filtering
  Measurements


Filtering table up to 32 PID
Bitrate of the output multiplex
Percentage of used bitrate (relative to the maximum capacity of the multiplex)

CONFIGURATION

AND POWER

SUPPLY


Through the DT-800 control and power supply unit. Control can be done remotely from a PC.



Optiuni recomandate

DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B







RECEIVERS WITH ASI-TS OUTPUT

DT-302

Dual DVB-S/S2 receiver with CAM, ASI-TS output.

DT-312

Dual DVB-T receiver, ASI-TS output.

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).







IP STREAMERS

DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)







COMBINERS - AMPLIFIERS

DT-700

4x1 quadruple DVB-T combiner .

DT-710

8 input DVB-T combiner with a 117 dBuV (+10 dBm) one

 single output.

DT-722

4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm)

 one single output.

DT-730

DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).

DT-610

Optical transmitter module

DT-620

Optical receiver module
