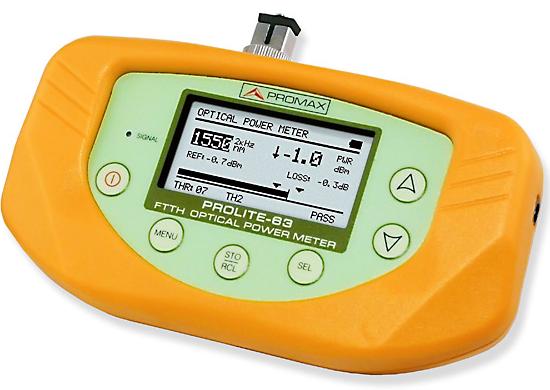

The optical power meter PROLITE-63 is a compact, lightweight and easy to use equipment, with exclusive features such as ability to perform fast tests. Its quality, performance, reliability and security makes it an alternative to other equipments in its range. It is capable to make tests on single-mode fibre optics systems or multimode and present results in graphical LCD display.

Also, the PROLITE-63 internal memory is capable to store measurements, data can be transferred to PC for processing and printing. Fibre section certification, as automatic attenuation at 1310 nm, 1490 nm and 1550 nm with PROLITE-105.

It is ideal for laboratory and field applications thanks to its design based on hotkeys. In laboratories or LAN, WAN, CATV and fibre networks long range, with a stabilized laser source can be used to identify fiber optics, measure optical attenuation, to check continuity and evaluate the quality of the link.

OPTICAL POWER METER function (OPM)

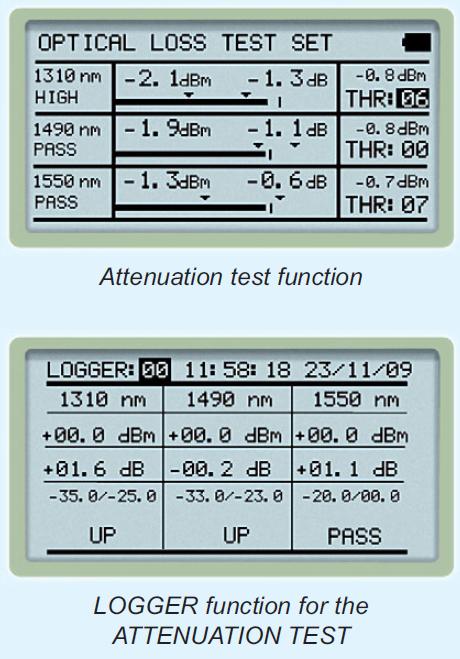

ATTENUATION TEST function
LOGGER function

WORKING WAVELENGTH	From 1100 to 1700 nm
CALIBRATED WAVELENGTH	1310, 1490, 1550 and 1610 nm (to others wavelength, consult)
MEASUREMENT RANGE	From -60 to +10 dBm
FUNCTIONS	- Absolute measurement (dBm) - Relative measurement (dB) - Atenuation test - Data logger (100 loggers in each function mode) - Pass/Fail signal level analysis (user selectable thresholds) - USB to PC connection - Software for PC included (updating, classification and data report) - User interface in several languages

Optiuni recomandate

AD-230	ST Adapter for PROLITE-23.
AD-232	SC Adapter for PROLITE-23.
AD-500	ST Adapter for PROLITE-50.
AD-502	SC Adapter for PROLITE-50.
CC-370PP	FC/PC-ST/PC Cable.
CC-371PA	FC/PC-E2000/APC Cable.
CC-371PP	FC/PC-E2000/PC Cable.
CC-372PA	FC/PC-SC/APC Cable.
CC-372PP	FC/PC-SC/PC Cable.
CC-373AA	FC/APC-FC/APC Cable.
CC-373PA	FC/PC-FC/APC Cable.
CC-373PP	FC/PC-FC/PC Cable.
AD-370P	FCP/H-STP/H Adapter.
AD-371A	FCA/H-E2000A/H Adapter.
AD-372A	FCA/H-SCA/H Adapter.
AD-372P	FCP/H-SCP/H Adapter.
AD-373A	FCA/H-FCA/H Adapter.
AD-373P	FCP/H-FCP/H Adapter.
AD-375P	STP/H-STP/H Adapter.
DC-272	Carrying Bag for PROLITE-65 and PROLITE-105.
