Platforma training Comunicatii Fibra Optica Promax EF-970

Cod: Promax EF-970




Brosura produs PDF, 0.42 Mb

Descriere

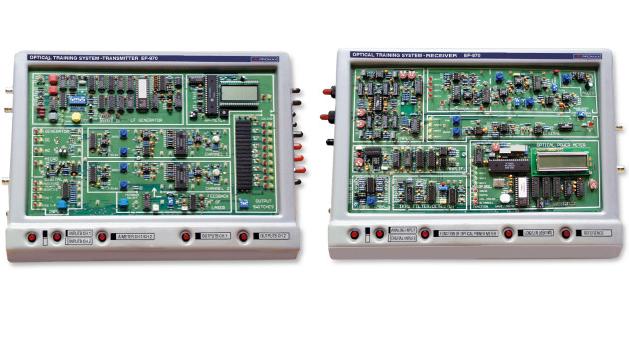

The EF-970 professional trainer is an innovative training system, designed for the learning, demonstration and experimentation with the Fibre Optics communication systems, the phenomenon related to light and the principles of transmission through Fibre Optics; as well as the latest tendencies like LASER and WDM systems.





EMITTER KIT

Two independent channels, with LED and laser-photoemitters. 8 inputs, BF generator, miliammeter

RECEIVER KIT

With calibrated optic power meter.

OP-970-1

4 optic inputs, the analogue channel has a gain of 40 dB
Set of accessories for practices, including one optic positioner, one attenuator and one variable fibre coupler

OP-970-2

Set of accessories for practices of connection





Partial list of exercices EF-970 & EF-970-E



- Measuring the attenuation of an optical fibre

- Spectral dependence of the attenuation of an optical fibre

- Influence of ambient light

- Connecting optical fibre using ST-ST adapters

- Measuring repeatability

- Measuring the P/I characteristics of photoemitters

- Measuring the optical stability of photo-emitters

- Measuring the V/I characteristics of photo-emitters

- Frequency characteristics of photo-emitter modulation

- Bandwidth of photo-detectors

- Transmission of analogue signals

- Transmission of audio signals

- Transmission of video signals

- Transmission of digital signals

- RS-232 transmission using optical fibres



EF-970-E only

- Optical power measurement

- Measuring the attenuation of an optical fibre. Insertion losses method

- Measuring the attenuation of an optical fibre

- Spectral dependence of the attenuation of an optical fibre

- Influence of ambient light

- Connecting optical fibre using ST-ST adapters

- Measuring repeatability

- Measuring the P/I characteristics of photo-emitters

- Measuring the optical stability of photo-emitters

- Measuring the V/I characteristics of photo-emitters

- Frequency characteristics of photo-emitter modulation

- Spectral dependence of photo-detectors (suggested EF-970-E)

- Inverse voltage in photo-detectors

- Bandwidth of photo-detectors

- Transmission of analogue signals

- Transmission of audio signals

- Transmission of video signals

- Transmission of digital signals

- RS-232 transmission by optical fibres





OP-970-01 Exercices kit

- Sensitivity of optical fibre to curvature (Macrocurves)

- Sensitivity of optical fibre to microcurvature

- Radiation characteristics of optical fibre. Measuring numeric aperture

- Measuring sliding in optical fibre connections

- Characteristics of a fixed WDM device

- Characteristics of a variable WDM device

- Measurements with neutral optical fibres

- Measuring insertion loss by the variable optical attenuator

- WDM: multiplexation and demultiplexation

- WDM system

- WDM transmission

- Transmission sensor

- Reflection sensor

- Liquid level sensor

- Spectral dependence insertion loss by the variable optical attenuator

(EF-970-E needed)

- Comparing noise characteristics between PIN and APD photodetectors

(EF-970-E needed)



OP-970-02 Connection kit

- Connections with the optical fibre connector tool kit EF-970 or

EF-970-E



OP-970-03 Microscope

- Recommended even to use with OP-970-02
