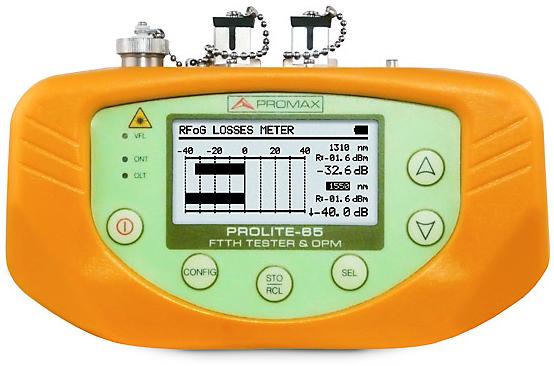

MODE 1: Optical power meter. 1100-1700 nm.
Automatic and simultaneous identification of three wavelengths (1310/1490/1550 nm) generated by a triple laser source (sold separately). Useful to meet any requirement on fibre optics. Analysis of the signal level (Pass / Fail) according to three thresholds editable by the user.

MODE 2: Optical measurements on active networks xPON and RFoG
Measurement of the upstream bandwidth (ONT): Burst detector calibrated at 1310 nm (PON) and 1610 nm (RFoG). Measurement of the downstream bandwidth (OLT): Wavelengths calibrated at 1490 / 1550 / 1610 / 1625 nm.

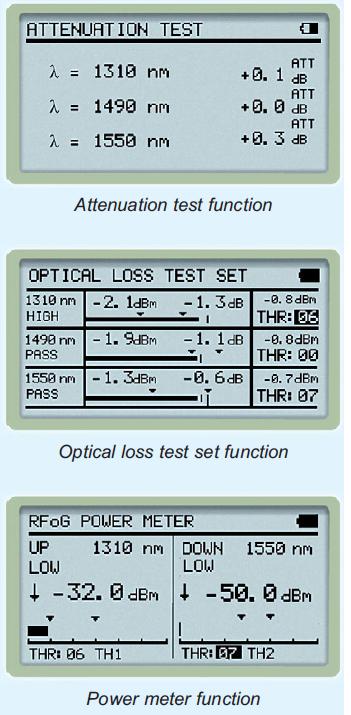

POWER METER function
ATTENUATION TEST and OPTICAL LOSS TEST SET functions
LOSSES function
VISUAL FAULT LOCATOR module
LOGGER function
Visual locator to find faults in the fibre.
Red laser at 650 nm with an universal connector.
User interface in several languages.
Connection USB to PC to transfer the data recorded by the instrument

Optiuni recomandate

AD-230	ST Adapter for PROLITE-23.
AD-232	SC Adapter for PROLITE-23.
AD-500	ST Adapter for PROLITE-50.
AD-502	SC Adapter for PROLITE-50.
CC-370PP	FC/PC-ST/PC Cable.
CC-371PA	FC/PC-E2000/APC Cable.
CC-371PP	FC/PC-E2000/PC Cable.
CC-372PA	FC/PC-SC/APC Cable.
CC-372PP	FC/PC-SC/PC Cable.
CC-373AA	FC/APC-FC/APC Cable.
CC-373PA	FC/PC-FC/APC Cable.
CC-373PP	FC/PC-FC/PC Cable.
AD-370P	FCP/H-STP/H Adapter.
AD-371A	FCA/H-E2000A/H Adapter.
AD-372A	FCA/H-SCA/H Adapter.
AD-372P	FCP/H-SCP/H Adapter.
AD-373A	FCA/H-FCA/H Adapter.
AD-373P	FCP/H-FCP/H Adapter.
AD-375P	STP/H-STP/H Adapter.
DC-272	Carrying Bag for PROLITE-65 and PROLITE-105.
