Convertor ASI-Transport Stream -> IP Packet Promax DT-421

Cod: Promax DT-421




Brosura produs PDF, 0.19 Mb

Descriere

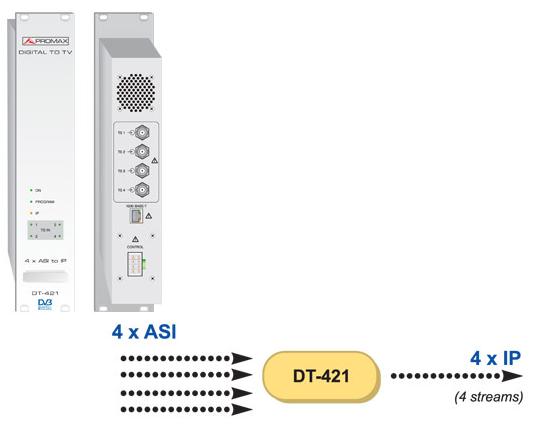

The DT-421 is a converter from transport streams to IP. It extracts signals from up to 4 TS-ASI inputs to distribute them in a network Ethernet. Each input TS is encapsulated inside an IP stream with an address and a destination port defined by the user. It is configured and controlled by means of the control module DT





TS INPUT

4 x DVB-ASI. BNC Female connector

75 ? (108 Mbps maximum per input)

IP OUTPUT

Ethernet 100/1000 Mbps. RJ45 connector.

IP STREAMS
  Communication Protocol
  Transmission methode
  Payload


UDP or RTP/UDP.
MULTICAST.
7 MPEG-2 packets.

CONFIGURATION AND

POWER SUPPLY

Via the DT-800 Control and Power Module.



 Control can be made remotely from a PC



Optiuni recomandate



DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)


DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B
