Sistem didactic training Transmisii Antene Promax EA-817B

Cod: Promax EA-817B




Brosura produs PDF, 0.28 Mb

Descriere

The Antenna Trainer EA-817 B is a fully configurable trainer that  allows the student to install, configure, adjust, modify and analyse any kind of actual MATV and SMATV installation.

It is a comprehensive education system designed for teaching, demonstration and experimentation about the theory and practice of telecommunications infrastructure installations.





ANTENNAS

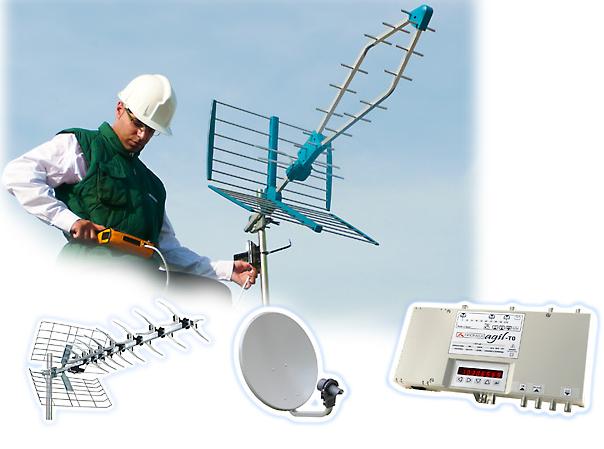

  Included antennas

  Antennas accessories


UHF Antenna
Off-set antenna
Reflector, 4 outputs LNB

HEADEND EQUIPMENT

Headend (MATV), 10 UHF programmable filters
VHF and FM amplifier
Power supply unit

USER EQUIPMENT

High Definition Terrestrial and satellite digital television receiver

 (COFDM, QPSK) with MPEG-2 and MPEG-4 combo

ACCESSORIES

Inclinometer and Compass
Cable and connectors
Tools
Simulator for Intermediate Frequency (RP-050)

DOCUMENTATION

 (on CD-ROM)

- Theory and Practice Manual for Intermediate Cycle
- Trainer's User’s Manual
- Technical Documentation
