PROTEK A434L Cable & Antenna Analyzer 4.4GHz

Description

• VSWR
• DTF(Distance to Fault)
• Cable Loss
• Power Meter Function
• Frequency Range : 5MHz ~ 4GHz
• Number of Data Points : Up to 2001
• Accuracy : <± 3ppm
• Single & Dual Mode Display
• Smart Battery Indicator
• 7’’ TFT Sun-light Readable Screen
• USB, LAN Connectivity

Protek A434L is a new antenna and cable analyzer designed for use in the field offering the four measurement capabilities such as VSWR, cable Loss, DTF (Distance to Fault) and power meter with convenient short-cut buttons.

Protek A434L has been lighter with longer battery life than the predecessor A434. The lightweight and simple operation make Protek A434L indispensable to technicians who need an efficient measuring instrument outdoors for the installation and maintenance of antenna systems.

A large number of cell site problems are caused by the antenna system, cable, or connectors. It is important to have the right instrument available when either

servicing or certifying cell sites for operation.

The Protek A434L RF master is a lightweight portable diagnostic tool for an accurate detection of operational problems. The Protek A434L has all the measurement

functions necessary to accurately verify the antenna system from VSWR to power measurements. In addition, the Protek A434L makes distance-tofault

measurements to accurately pinpoint the fault's location.

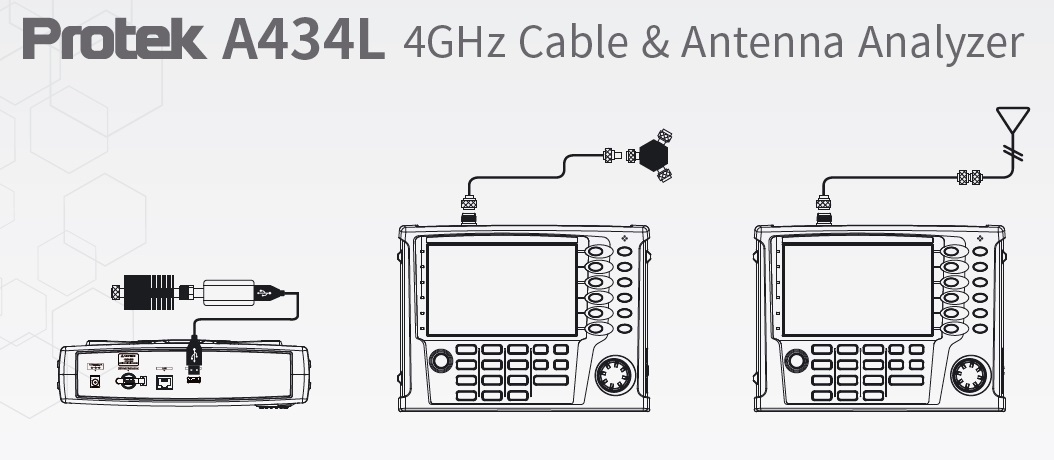

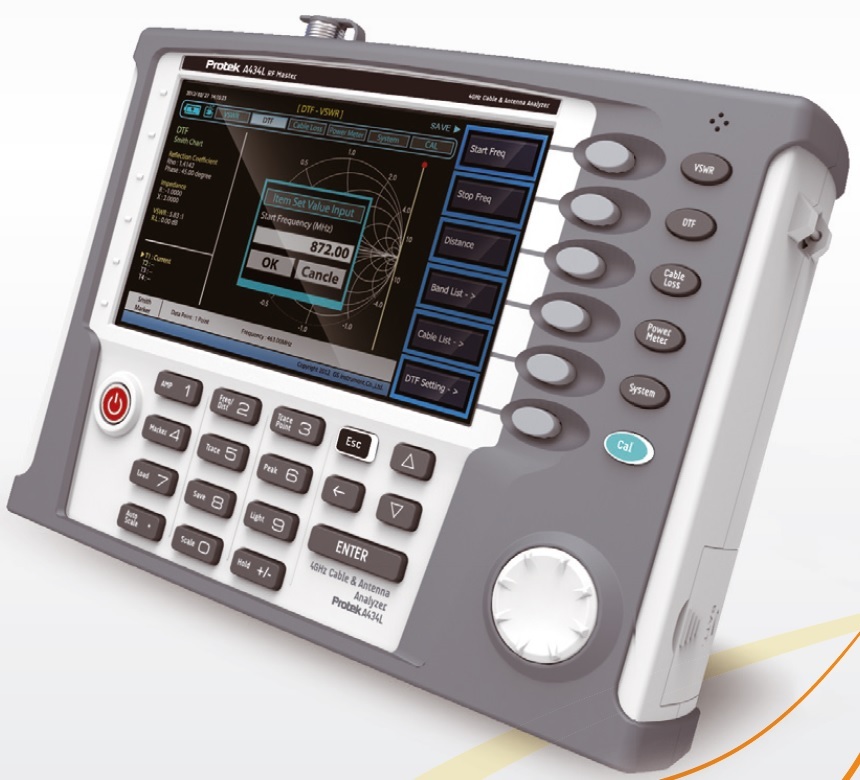

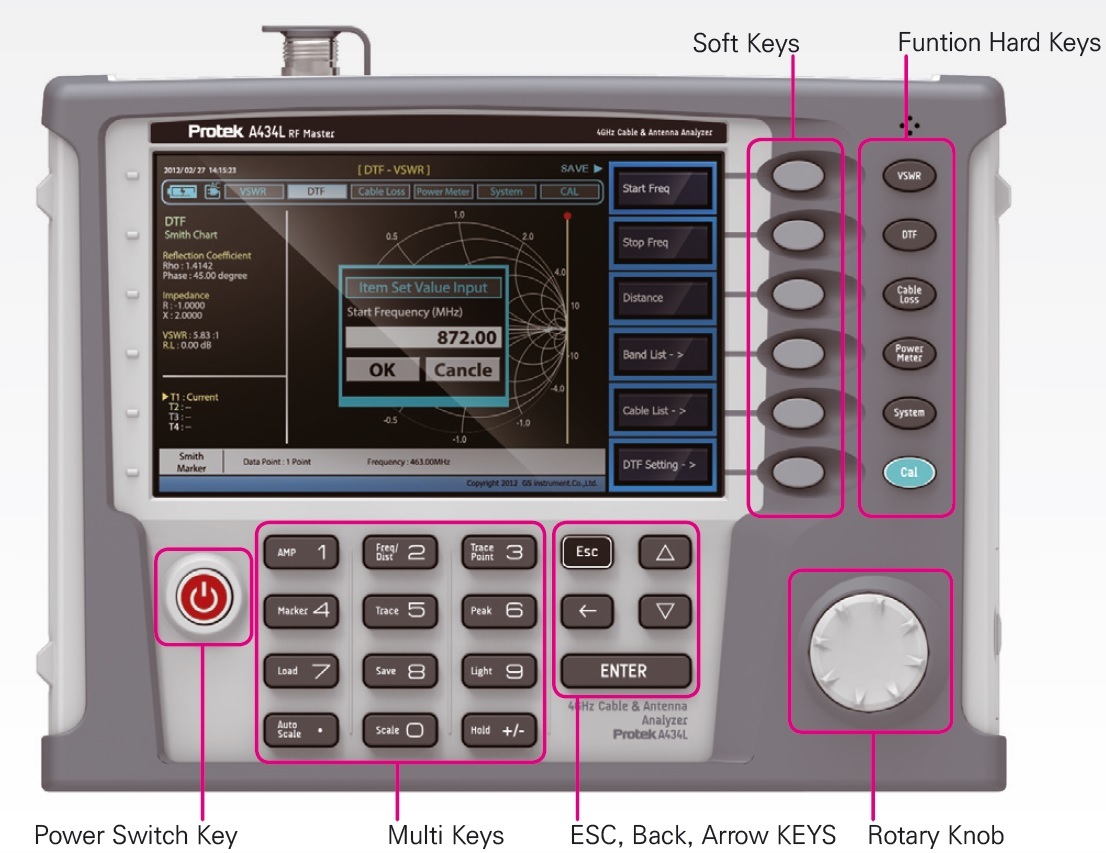

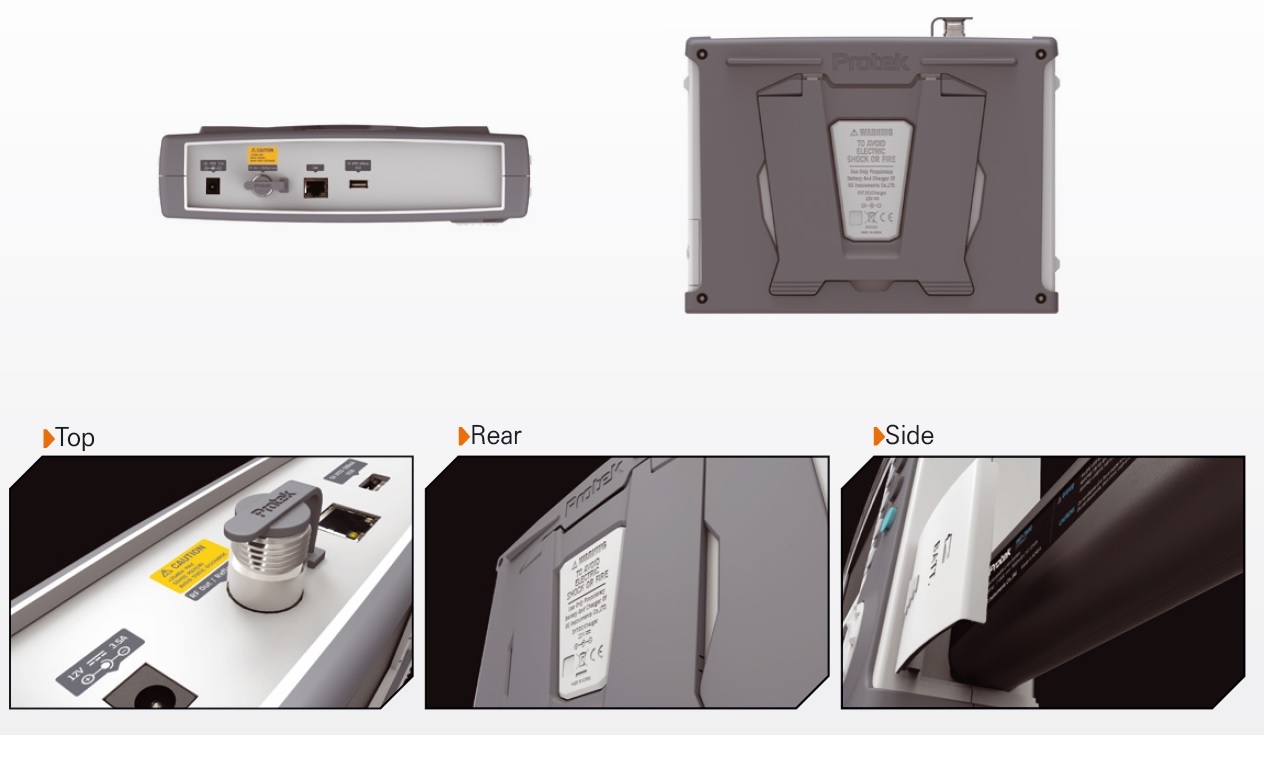

The Protek A434L user interface is with a front keypad and a TFT color, 7-inch display providing ease of use and control. The application specific software allows

the user to easily compare and analyze measurements and generate comprehensive reports. The Protek A434L is equipped with a rechargeable and infield

installable lithium-ion battery providing over four hours of operation.

• Rechargeable and infield replaceable lithium-ion battery

• Built-in world-wide signal standards and frequency channels

•7 Inch TFT color display viewable in daylight

• Dual display to view multiple measurements simultaneously to reduce test time

•Easy front keypad operation

•Superior immunity to RF interference

•Up to 2001 data points to locate long range problems

•Built-in cable menus containing >90 cables characteristics

•User friendly menu structure

•Saves up to Memory (user setups, traces, screens)

•Alphanumeric labeling of saved data

•Automatic Time/Date stamp of saved data

•USB Port (USB 2.0)

•Remote firmware upgrade capability

• Fast one-touch selection of menu item or positioning marker

• Smart Battery management can be check Battery capability

• Rechargeable and field replaceable Lithium Ion battery with more than 4 hours operation time

•Backlight keypad for easier use in dark environments

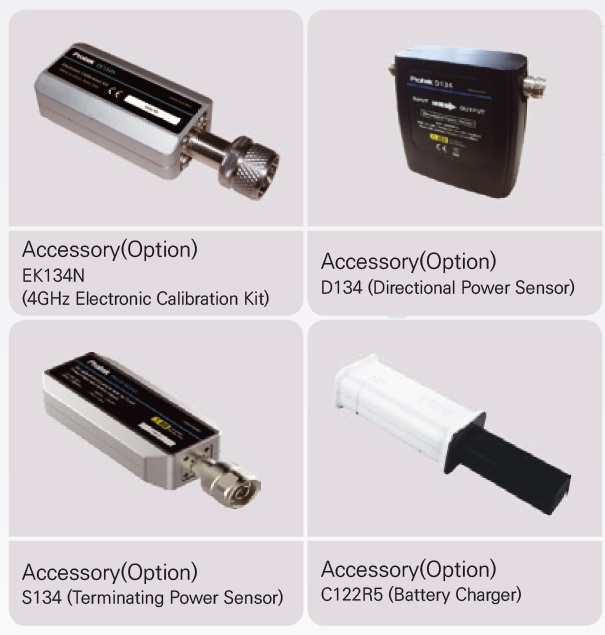

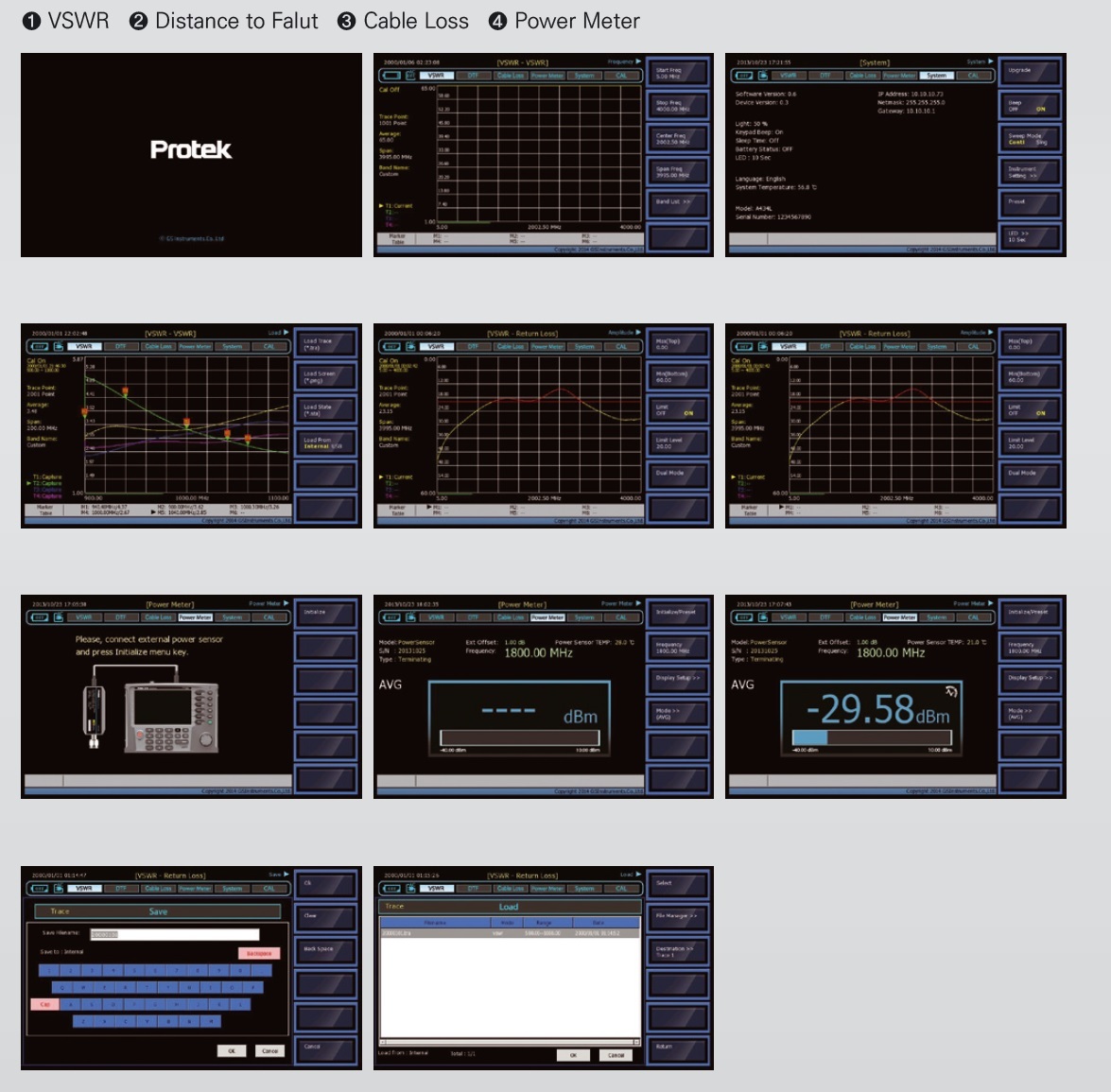

Key Measurements

High resolution VSWR Measurements

Distance to Fault (DTF) Measurements

Cable Loss Measurements

RMS Power Measurements (optional)

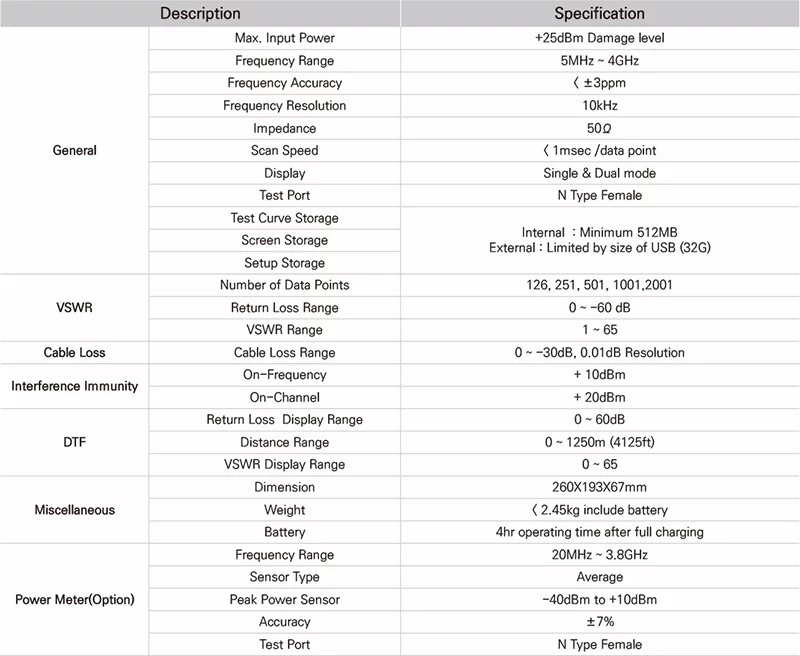

VSWR

Number of data points 126, 251, 501, 1001, 2001

Return loss Range 0 to -60dB

VSWR Range 1 to 65

Cable Loss

Cable loss range 0 to -30dB, 0.01dB Resolution

DTF

Return Loss Display Range 0 to 60dB

Distance Range 0 to 1250m (4125ft)

VSWR Display Range 0 to 65

Power Meter(Option)

Frequency Range 20MHz to 3.8GHz

Sensor Type Average

Peak Power Sensor -40dBm to +10dBm

Accuracy ±7%

Test Port Precision N Female
