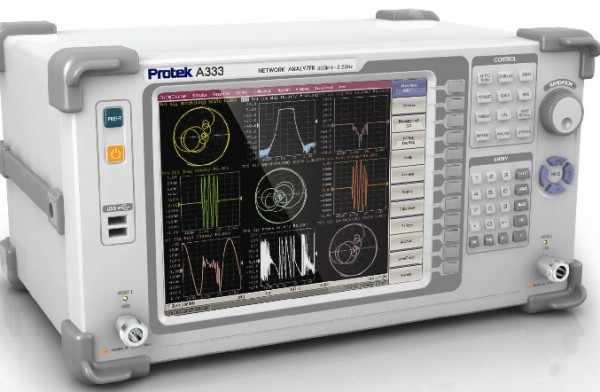

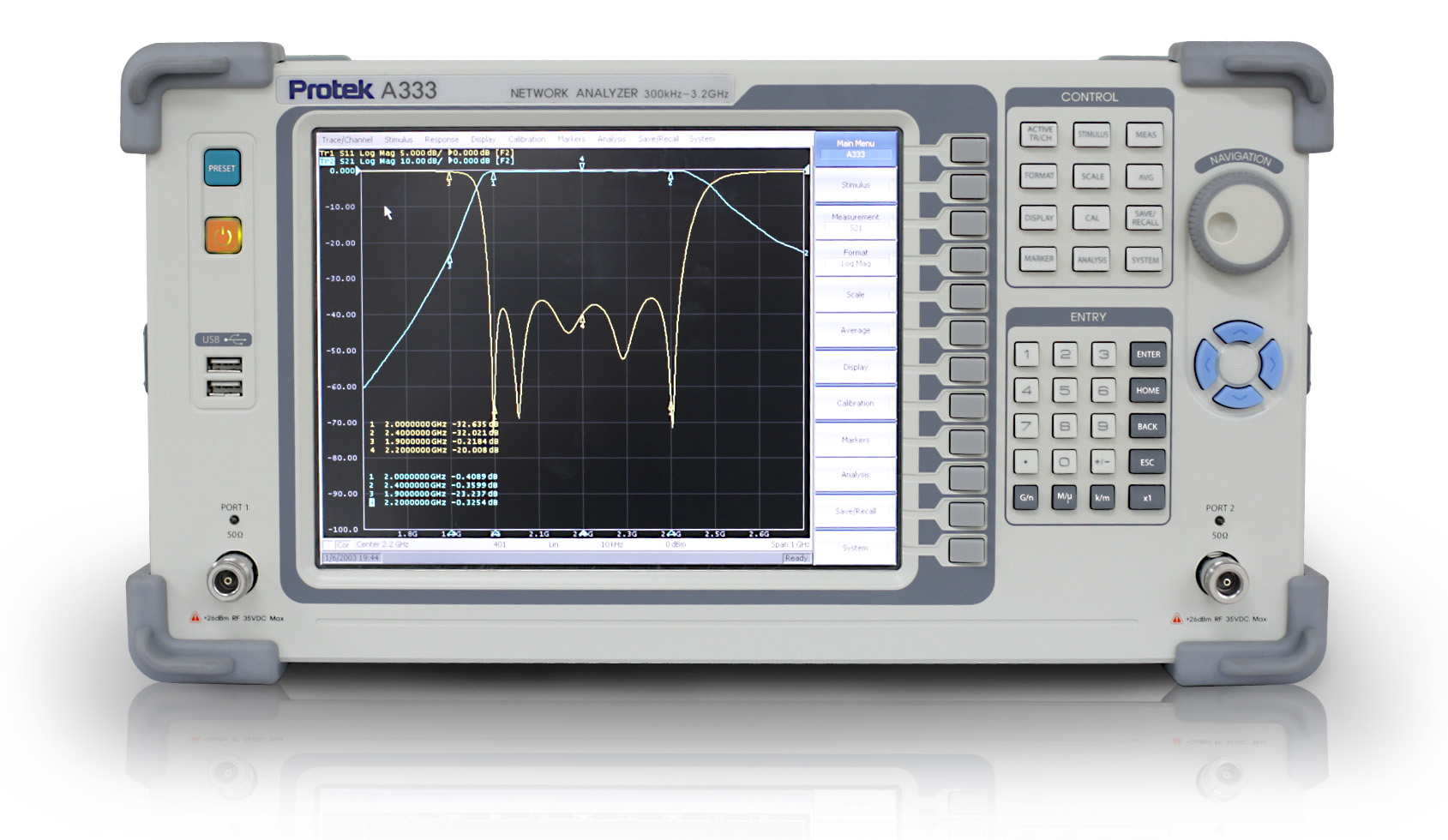

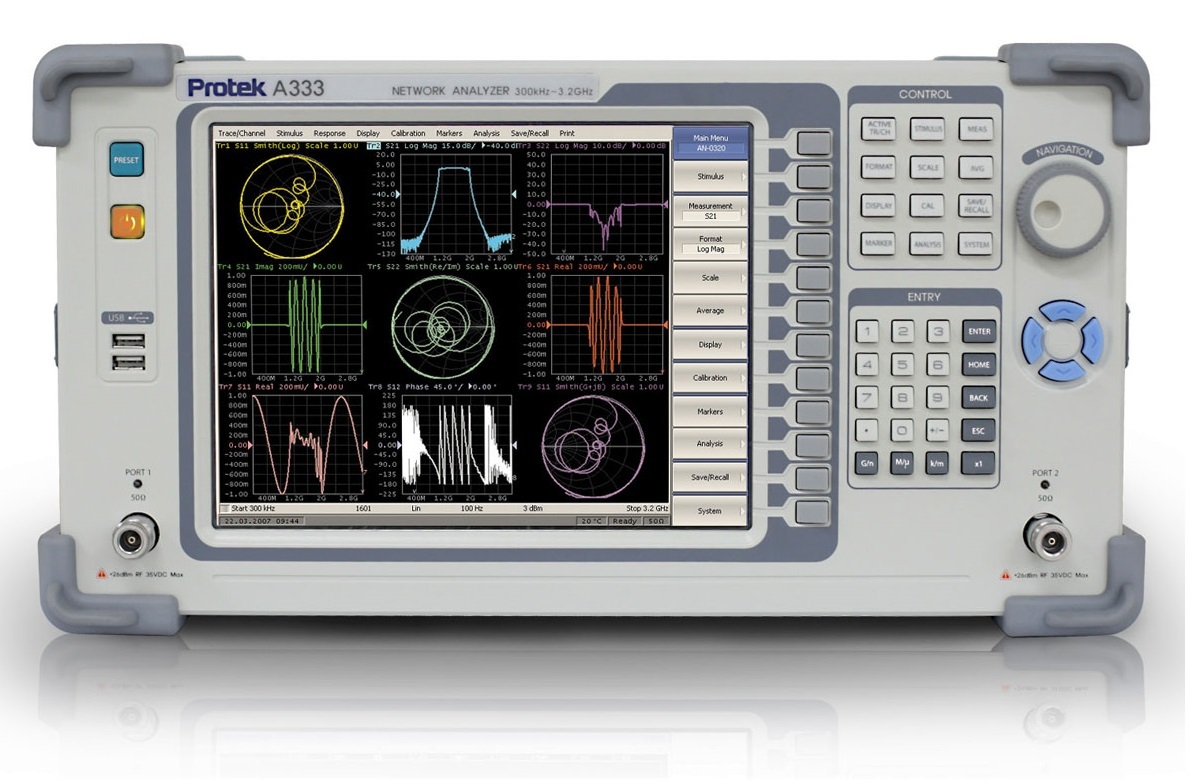

PROTEK A333 Vector Network Analyzer 2-port 300 kHz..3.2 GHz

Code: PROTEK A333



Datasheet PDF, 3.21 Mb


Description

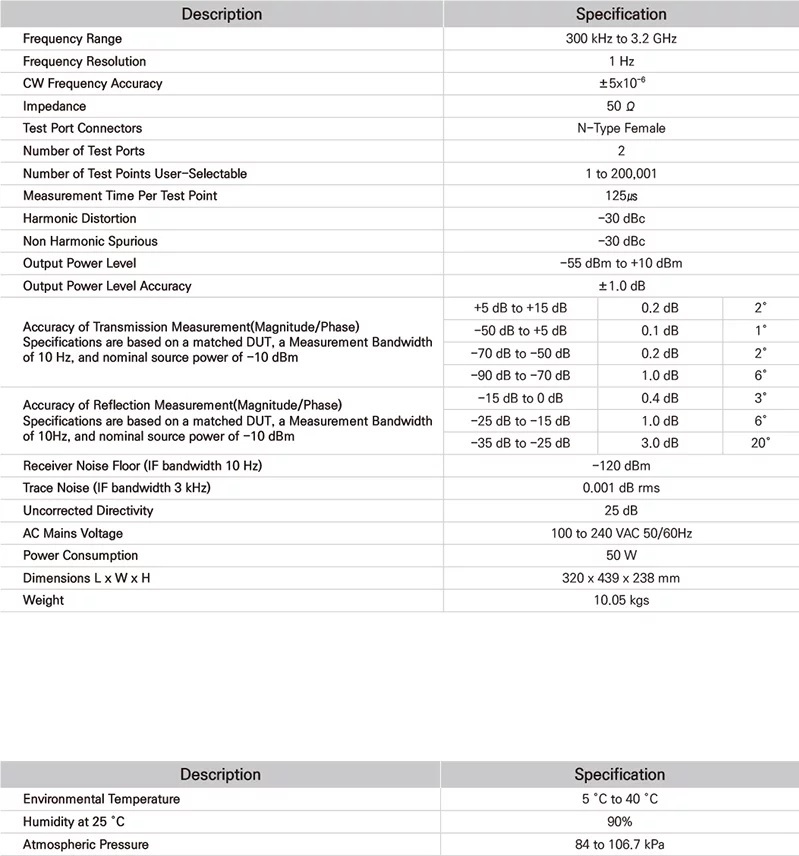

  • Measurement Frequency Range : 300kHz to 3.2GHz
  • 4 Built in S-parameters, Time Domain : S11, S21, S12, S22
  • Full One Port and Two-Port Calibration
  • Frequency Resolution : 1Hz
  • IF bandwidth settings1/1.5/2/3/5/7/10 step : 1Hz to 30kHz
  • Test port output Power range : -45 to +10dBm
  • Power accuracy : <1.0dB

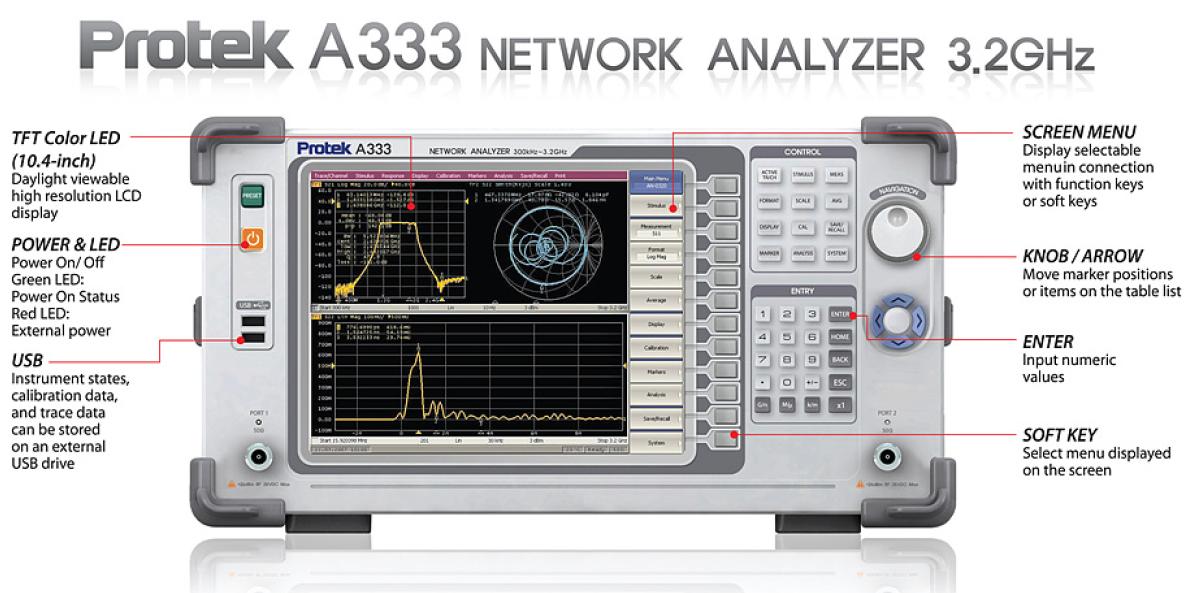

  • Display 10.4 inch TFT Color LCD 800x600 Touch Screen

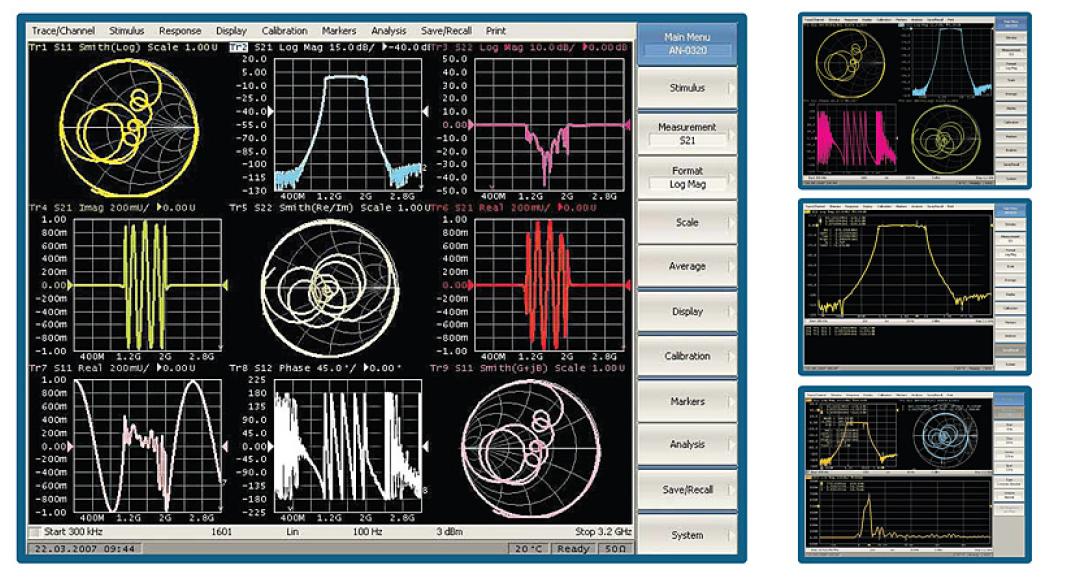

  • Familiar graphic user interface based on Windows
  • User Interface USB 2.0, Ethernet, Keyboard, Mouse, Printer, Video
  • Programming functions COM/DCOM Automation
  • Remote Control
  • USB(2) / LAN / Print / Video / Keyboard / Mouse
  • GPIB (Option)
  • Windows XP

A333 vector network analyzers have been designed for providing user convenience with fast measurement, wide dynamic range, and built-in options such as touch screen, time domain, and frequency offset.

In addition, the comparable accuracy and stability enhance the balance of value in A333 for multi-purpose applications from production lines, and R&D laboratories.
