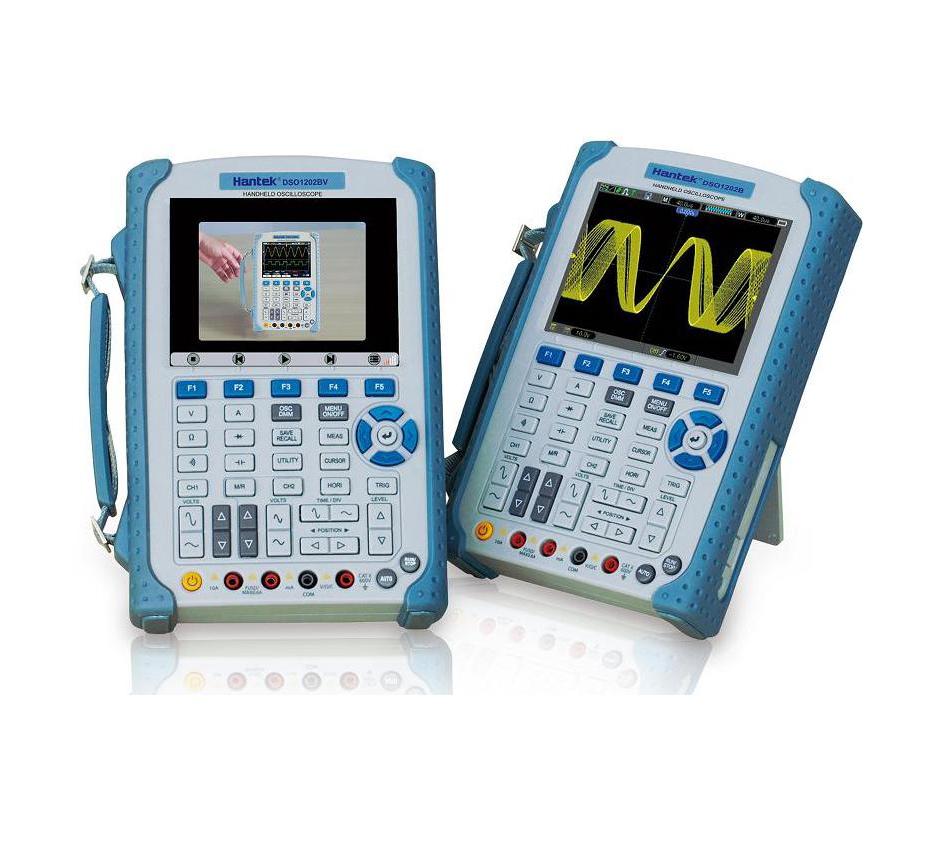

Hantek DSO1000BV Portable Oscilloscope with Video help

Code: Hantek DSO1000BV Series




Datasheet PDF, 2.18 Mb

Description

DSO1000BV Series

60MHz-200MHz Bandwidth Oscilloscope;
Build in Video Help and 2G SD flash memory;
1GSa/s sample rate,1M Memory Depth, and 6000 Counts DMM with analog bargraph;
5.6 inch TFT Color LCD Display, high resolution (640*480).


Features:

  • High Bandwidth 60MHz-200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
  • Built in Video Help and 2G SD flash memory.
  • 1M Memory Depth.
  • High Refresh Rate (2500 frames).
  • Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
  • One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
  • Easy-to-use pop-up menu with built-in multi-language help system.
  • 32 Automatic Measurements.
  • Waveform Math: Add, Subtract, Multiply, and Divide.
  • Store and recall over.
  • Automatic cursor tracking measurements.
  • XY Mode.
  • Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
  • Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
  • Pass/Fail function compares a stored waveform to an unknown input.
  • Average Mode for smoothing waveforms.
  • Square Wave Output (2V, 1kHz) for probe adjustment.
  • USB Host/Device 2.0 full-speed interface; support removeable disk;  LAN Option, easy to control by PC or long-distance.
  • Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.
