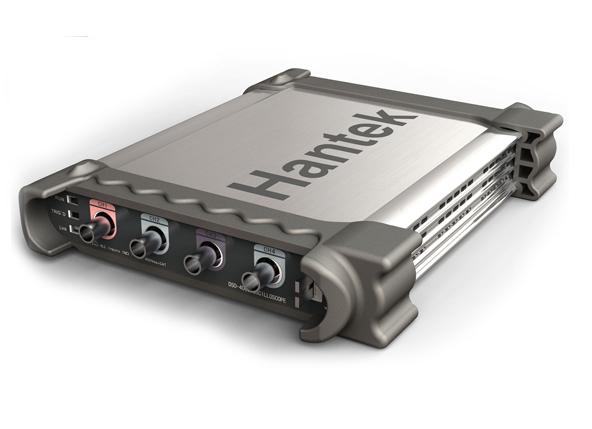

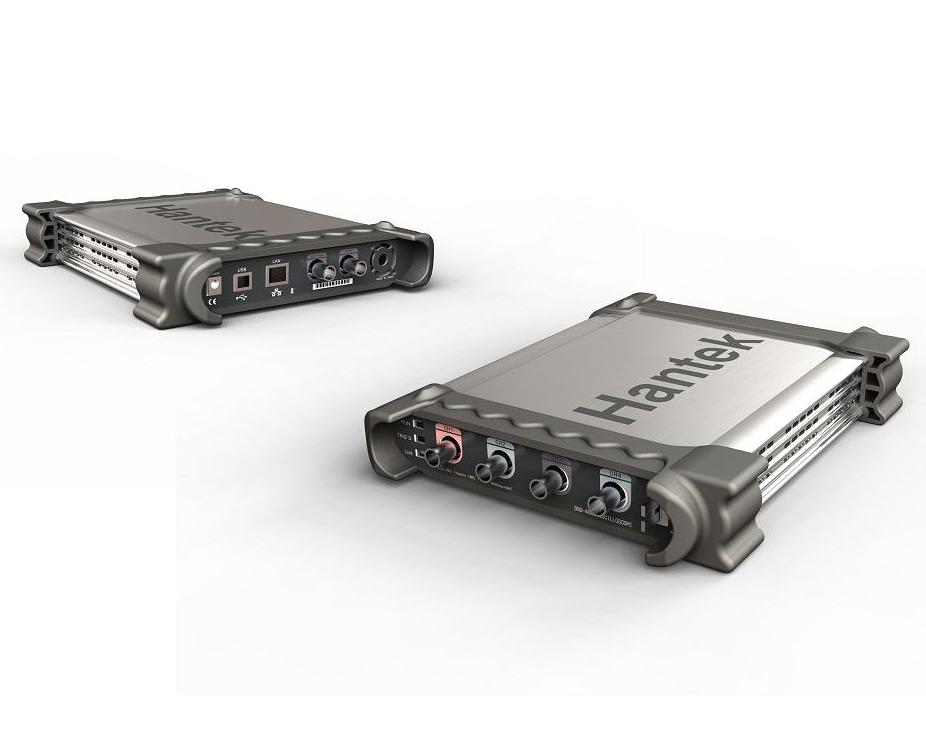

Hantek DSO3000 Series (200MSa/s) USB Scope

Code: Hantek DSO3000 Series (200MSa/s)




Datasheet PDF, 5.05 Mb


Description

DSO3000 Series (200MSa/s)

60MHz bandwidth; 2 or 4 channels oscilloscope;
Models with many extra functions like arb. waveform generator, logic analyzer to select;
USB 2.0 interface, LAN optional.



Features:

  • 8--36V wide range of input voltage, suitable for vehicle power test.
  • USB 2.0 interface, LAN optional.
  • More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.
  •  Excellent industrial design,similar interface with bench oscilloscope. Easy to use.
  • Software support: Windows NT, Windows 2000, Windows XO, VISTA, Windows 7.
  • Supply DEMO code(VC, VB, LABIEW) and technical support.





Model

DSO3062AL

DSO3062L

DSO3062A

DSO3064A

DSO3064

Analog Channels

2

2

2

4

4

Arb. Waveform Generator

Yes

No

Yes

Yes

Yes

Logic Analyzer

Yes

Yes

No

No

No
