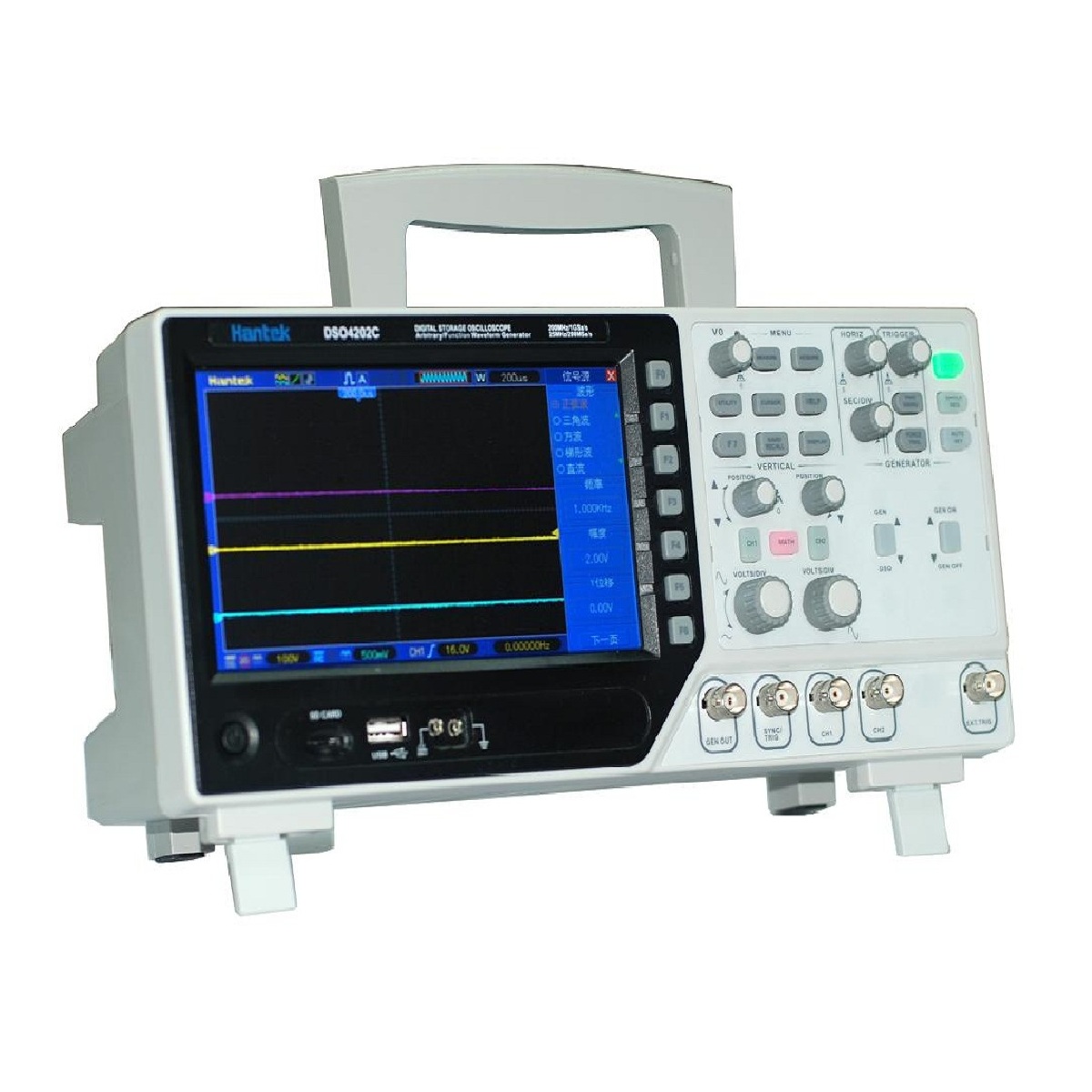

2 Channel Digital Oscilloscope. 1 Channel Arbitrary/Function Waveform Generator. The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously. Oscilloscope: 200/100/70MHz Bandwidth, 1GSa/s Sample Rate. 25MHz Arbitrary waveform generator, 12 bits resolution, 200MHz DDS, 7 inch 64K color LCD display, Resolution 800x480.

Features:

2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronizing Signal + External Trigger;
The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously;
Large and clear display (7 inch 64K color LCD display, Resolution 800x480), more clear and realistic waveform;
Oscilloscope: 1GSa/s Sample Rate, 200/100/70MHz Bandwidth, more than 20 kinds of auto measurement functions;
Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative;
Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer.
Support SD card, VGA function (optional);
Integrated USB Host, Support USB disk storage, USB interface/SD card system update.
