Hantek DSO3000(A) Series (1GSa/s)

Code: Hantek DSO3000(A) Series (1GSa/s)



Datasheet PDF, 3.6 Mb


Description

DSO3000(A) Series (1GSa/s)

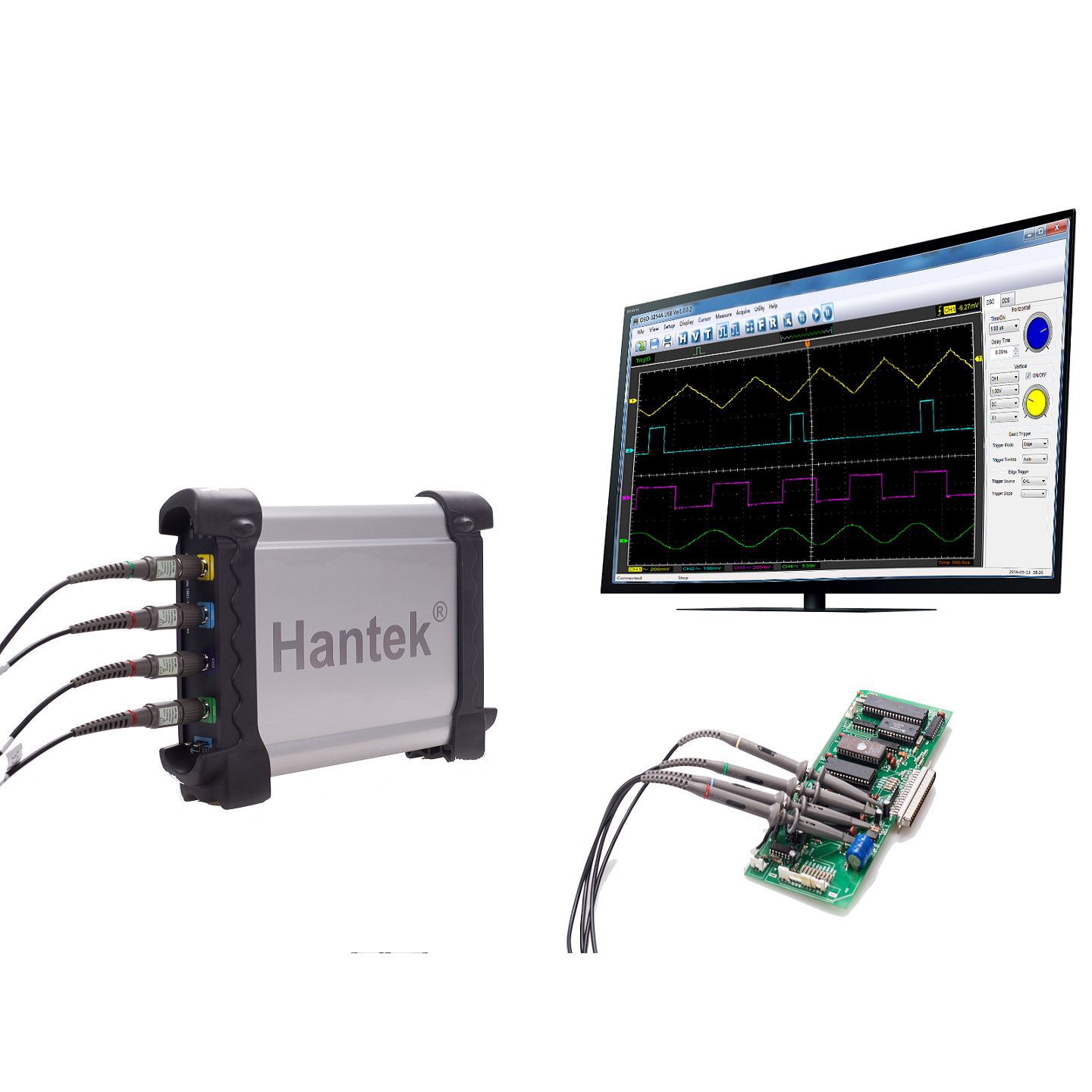

4CH Oscilloscope 16CH Logic Analyzer 1CH Function/Arb. Waveform Generator 16 Bits Word Generator 1CH EXT Trigger. Its performance can compete benchtop oscilloscope"™s, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth. Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer. USB2.0 Interface, plug and play device. Small size, easy for carrying. High cost performance. PASS/FAIL test, rich trigger function, dynamic cursor tracking, waveform recording and replay function. Support PoE module, support PoE power supply remotely and network port communication (optional).



Features:

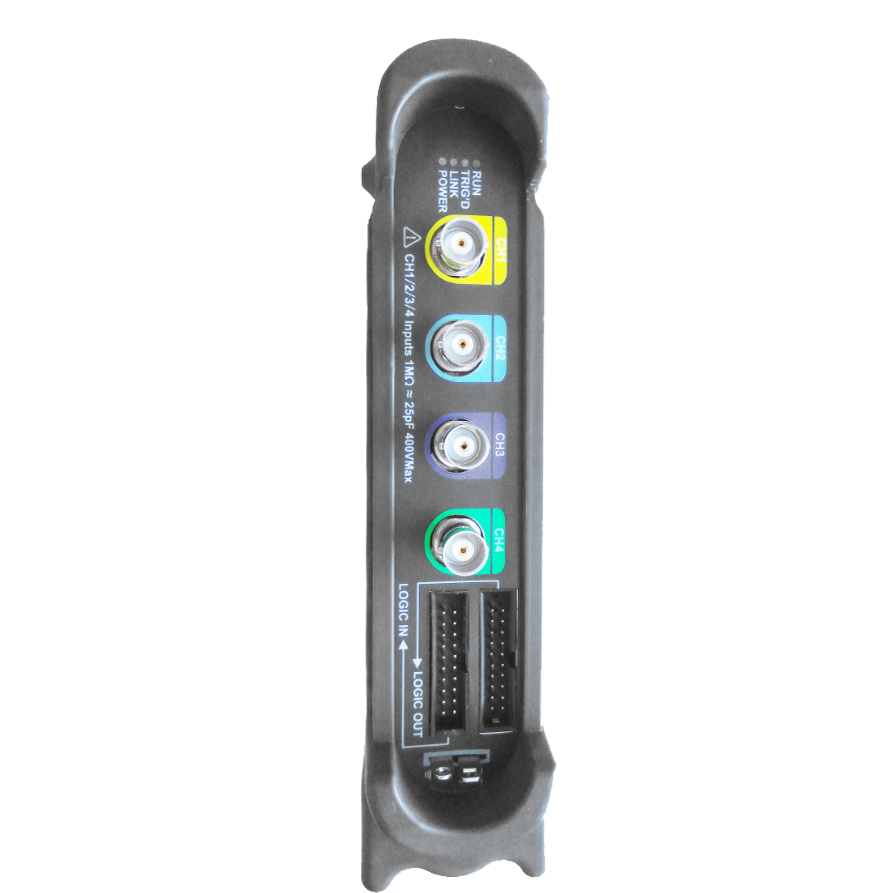

  • 4CH Oscilloscope + 16CH Logic Analyzer + 1CH Function/Arb. Waveform Generator + 16 Bits Word Generator + 1CH EXT Trigger.
  • 128M memory depth, save maximum 128M sampling points, accurately display sampling signal.

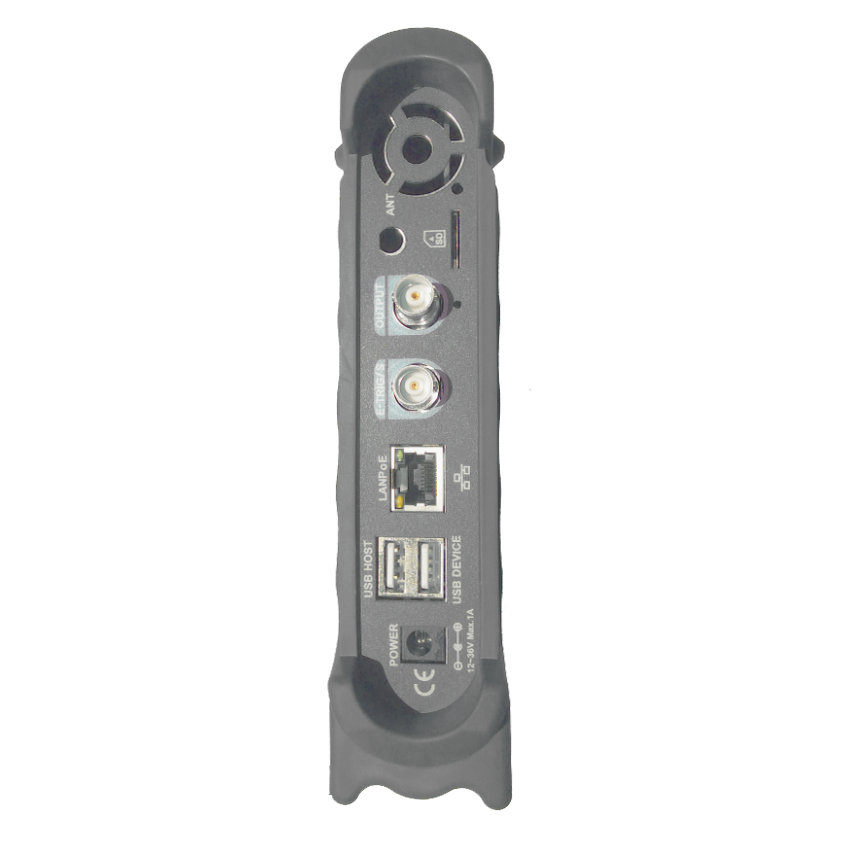

  • Support PoE module, support power supply remotely and communication. (optional)
  • Its performance can compete benchtop oscilloscope"™s, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth.
  • Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer.
  • PASS/FAIL test, rich trigger function, dynamic cursor tracking, similar interface with bench oscilloscope, easy to use. High cost performance.
  • Continuous waveform recording and replay function (200Hz recording bandwidth );
  • 1 GSa/s sampling rate.
  • 12-36V wide range input power.

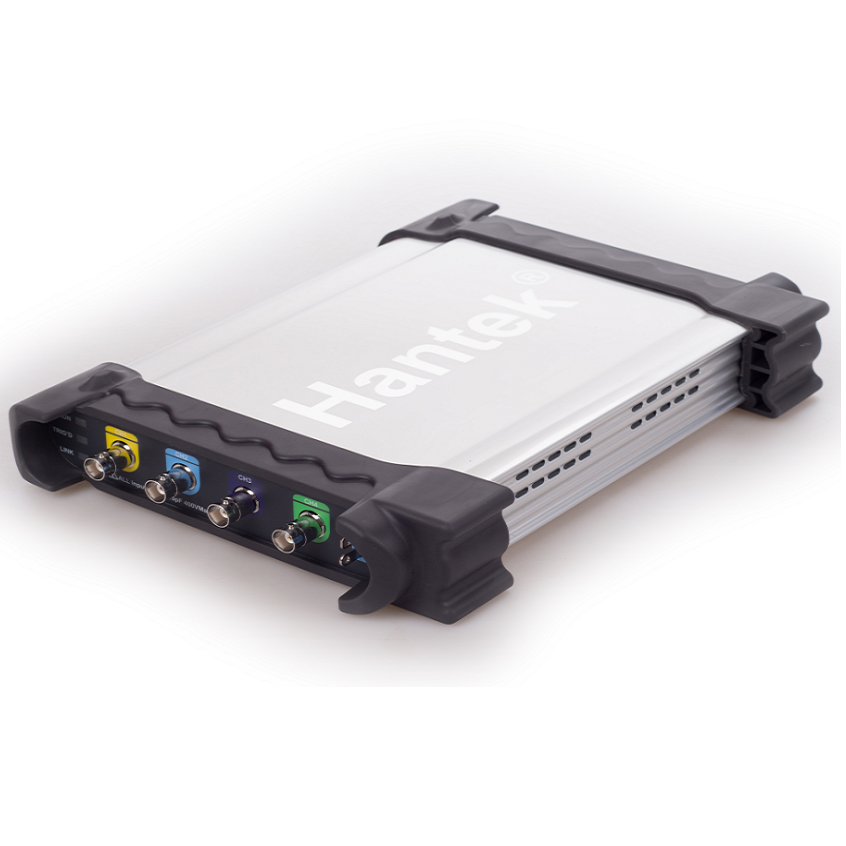

  • Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
  • More fit for tablet PC, laptop PC, maintenance and adjustment of production line, convenient for travel.
  • Software support: Windows10, Windows 8, Windows 7
  • The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
  • More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
  • Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
  • FFT spectrum analyzer

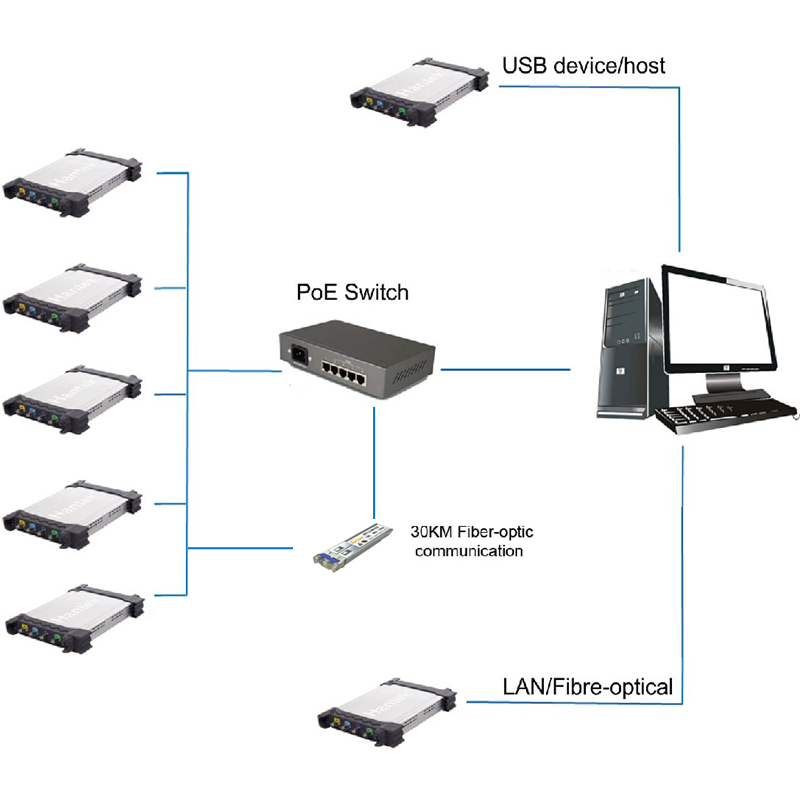

  • One computer could connect with multiple oscilloscopes, expand the channel number easily.
  • Provide SCPI protocol.
