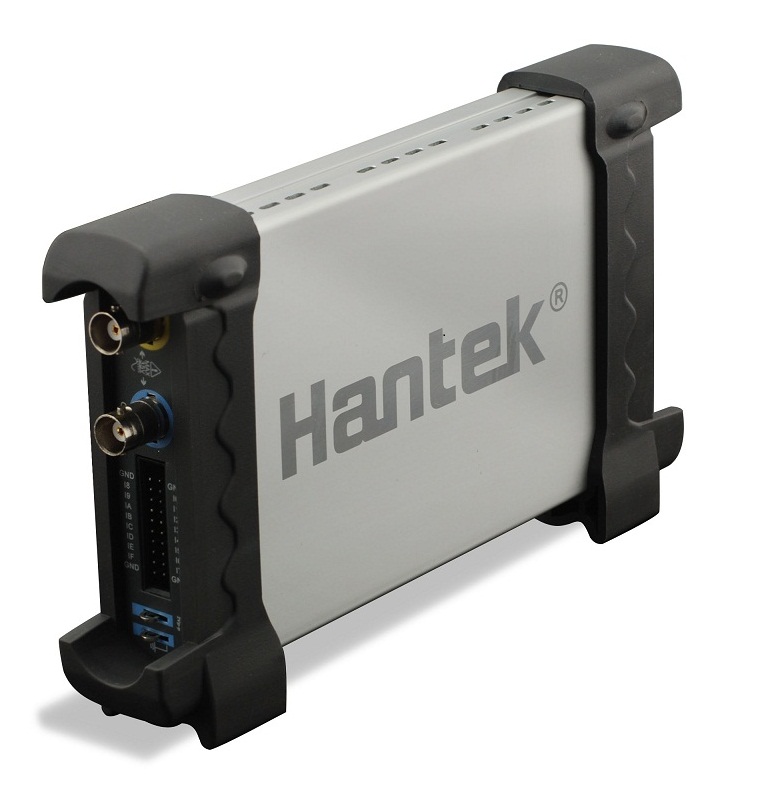

Hantek 6022BL USB Oscilloscope with Logic Analyzer

Code: Hantek 6022BL




Datasheet PDF, 1.91 Mb


Description

Hantek 6022BL

20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.



Features:

  • Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
  • Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
  • USB2.0 interface, no external power source required, easy to use.
  • Be suitable for notebook computer, product line maintenance, be used easily on business.
  • Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
  • High performance, 48MS/s real-time sampling, 20MHz bandwidth.
  • 16Channels Logic Analyzer, 10MHz Bandwidth;
  • Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  • FFT
  • One computer can connect many DSO, extend channel easily.
  • LabviewVBVC Second Design instance.
