EasySplicer OTDR Optical Time Domain Reflectometer Fiber Optic Test Tool

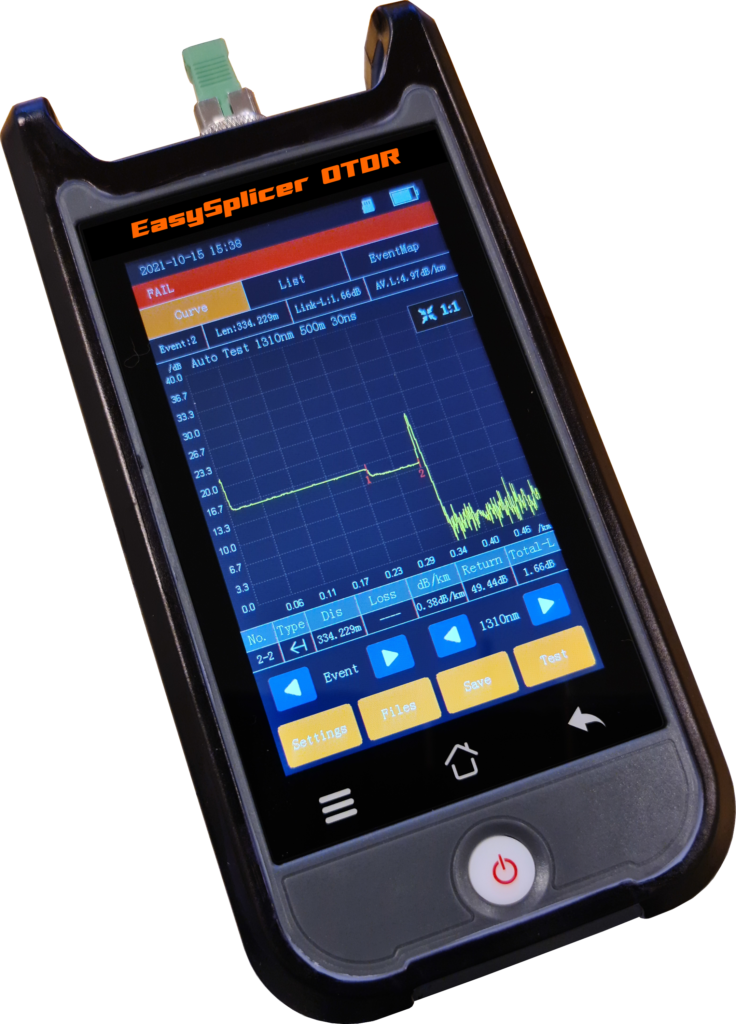

EasySplicer OTDR is designed with the basic fiber network installer in mind. It is very easy to use with an auto function which can be started over and over again. This function generates a signal sweep in the fiber cable measuring loss and detecting connected devices and faults (like bends and cracks). The result is displayed on the 4.3" multicolor touch display. All measured values are stored internally or on MicroSD cards.

The instrument is very easily operated even for the inexperienced user. With a simple press on the touch screen the unit performs a "auto mode measurement" calculating length of cable, loss (in dB), finds connected devices and faults (if any), along the way (up to 100km). There is also an "Expert Mode" in which the user can setup the network parameters more in detail. But apart from being an OTDR the instrument also has integrated:

-Optical Light Source: Transmitting 1310nm or 1550nm.
-Optical Power Meter: For measuring loss (dB) in the range of 800nm - 1700nm.
-Visual Fault Locator: Easy visual way of finding faults/loss in a fiber cable.
-RJ45 Cable Tracker: Tracker device in conjunction with the instrument will assist in detecting leads, finding errors and check lengths in standard RJ45 cables (Cat5, Cat6).

The OTDR has a small and compact size. The instrument, adapter cables and launch cable fits in the handy and sturdy carrying-case. The OTDR can easily be fully operated from the carry-case as well (to avoid dirt/moisture to interfere with the testing).

• Features:

  • Professional instrument for measuring loss and finding faults in fiber networks
  • Optical Time-Domain Reflectometer
  • Measure distance from 0 to 60km, in resolution of 1m
  • Measure dB loss with a resolution of 0.01 dB
  • Auto mode for super easy operation (and Expert Mode for Experts)
  • 4.3 inch, multicolor LED touchscreen
  • Comes in sturdy carrying-case with launce cable and 4x adapter cables
  • VFL, OPM and OLS, two wavelengths - 1310nm and 1550nm
  • RJ45 cable tracker and distance readout (up to 300m)


• Specifications:

  • Main connection: SC APC + 500m Singlemode G652
  • Wavelength: 1310nm and 1550nm
  • Dynamic Range: 24/22dB, Event Blind Zone 2.5m (0m with launch cable)
  • ATT Blind Zone: 8m (0m with launch cable)
  • Test Range: 500m/1km/2km/4km/8km/16km/32km/64km/100km
  • Pulse Width: 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us
  • Ranging Accuracy: ± (1m+Sample interval + 0.005% x Test distance)
  • Linearity: =0.05dB/dB
  • Sample Points: 6k~128k
  • Sample Resolution: 0.05m~8m
  • Loss Resolution: 0.001dB
  • Loss Threshold: 0.20dB
  • Range Resolution: 0.001m
  • Refractive Index: 1.00000-2.00000
  • Reflection Accuracy: ±3dB
  • File Format: SOR Standard File Format
  • Loss Analysis: 4-point method /5-point method
  • Laser Safety Level: Class II
  • Connector: SM/APC (Interchangeable SC, LC ST)
  • Refresh Rate: 3Hz (Typ.)
  • Launch cable: 500m G657 (to avoid event blind zone)
  • Connector: SC-APC
  • Adapter cables: SC-APC, SC-UPC, LC-APC, LC-UPC
  • Optical Lights Source: Wavelength Transmitting 1310nm or 1550nm
  • Power: -5dBm OPM Optical Power Meter
  • Measuring loss: (dBL) in the range between 800nm - 1700nm.
  • Range (dB): -70dBm to +10dBm
  • Resolution: 0.01dB
  • VFL Visual Fault Locator Wavelength: 650nm
  • Output Power: <10mW
  • RJ45 Cable tracker Mode: Digital tracking, Line pair tracking
  • Distance: Up to 300m
  • Display: 4.3" 800x400 TFT-LCD, Multi color touch display
  • Power: AC/DC adapter; Input:100V~240V, 50/60Hz.
  • Output: 5v 2A
  • Rechargeable battery: Lithium battery:3.7V,4000mAh Operational Continuous use for about 12 hours
  • Data storage: internal, About 200 memory positions. More than 20k positions with 8 Gb SD-micro card
  • Data connector: USB type-C (for upgrade)
  • Operational temp: Between -10 to +50 C
  • Storage temp: Between -40 to +70 C
  • Relative humidity: 0-95% (non condensing)
  • Weight: 0.5kg
  • Size: 173 x 109 x 45 mm


• Item Includes:

  • 1x OTDR Fiber Optic Test Tool
  • 1x Carrying-case (hard plastic)
  • 1x USB charger 5V 2A
  • 1x Launch cable, 500m G652 SM
  • 4x Adapter cables (SC-APC, SC-UPC, LC-APC, LC-UPC)
  • 1x RJ45 cable tracker
