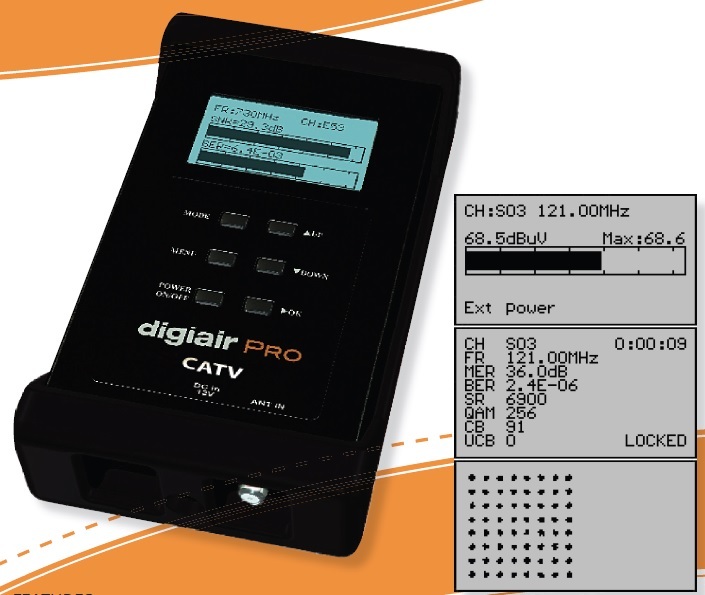

Tester semnal TV prin cablu analog si digital DigiairPro CATV

Cod: DigiairPro CATV DVB-C



Brosura produs PDF, 0.64 Mb

Descriere

• Perfect for digital CATV installations (QAM).

• Handy spectrum-analyzer for frequency 45-860MHz.

• Easy digital readout of MER, BER and Constellation diagram.

• QAM16, QAM32, QAM64, QAM128 & QAM256.

• Analog signal level reads out in dBuV, dBmV and dBm with maxhold function.

• Presents one channel readout with high resolution or six channels simultaneously or the complete spectrum.

• Very sensitive, easy to maximize weak and strong signals.

• Built in beeper (pitch tone) and maxhold function.

• Tilt function.

• Replacable, rechargeable battery (8x AA 1200mA).

• Power supply and car-charger enclosed.

• Rubber carrying-case enclosed.







Emitor´s DIGIAIR Pro CATV is developed in Sweden for exact installation and adjustment of cable networks.

This is made for both analog (dBuV) and digital (MER and BER). DIGIAIR Pro CATV is microprocessor controlled, making it very reliable and accurate.

Signal strength is presented on the LCD-display. In analog mode it shows a single channel or six channels at the same time. You can also choose to view the signal in spectrum mode.

In digital mode it displays the BER (bit error rate) and MER (modulation error rate). Readout of UCB (uncorrected bits) and CB (corrected blocks) is also easy to do.

Constellationdiagram can be viewed upon.

Furtermore DIGIAIR Pro CATV present pitchtones (the higher tone the stronger signal) on a loudspeaker.

DIGIAIR Pro CATV is very sensitive and can detect even the weakest signals.

DIGIAIR Pro CATV is charged via an external DC power-source of 13,5 -18 volt.

Even though the DIGIAIR Pro CATV has a lot of functions it is still very easy to use and has a very compact design.

DIGIAIR Pro operates with 8xAA rechargeable batteries.

The unit will works for at least 2 hours with fully charged batteries.





Alte produse SCANDINAVIA

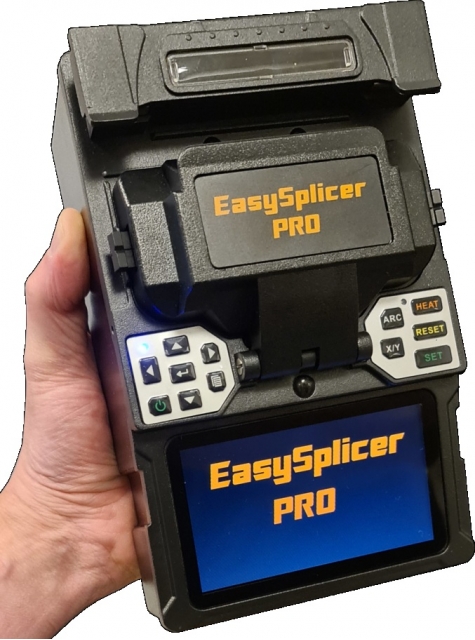

SB SCANDINAVIA EASYSPLICER PRO - APARAT DE SUDURA FIBRA OPTICA CORE POSITIONING

• Sudură prin fuziune simplificată È™i accesibilă cu EasySplicer PRO
• X/Y, 4 motoare, poziÈ›ionarea miezului
• Camere duble X/Y
• FuncÈ›ionează cu suporturi de fibră separate, compatibile cu toate tipurile de cabluri din fibră
• Atât pentru fibre singlemode, cât È™i pentru fibre multimode
• Timp de suplimentare de 6 secunde È™i timp de încălzire în cuptor de aproximativ 25 de secunde.


TESTER SEMNAL TV PRIN CABLU ANALOG SI DIGITAL DIGIAIRPRO CATV

• Perfect for digital CATV installations (QAM), DVB-C
• For both analog (dBuV) and digital (MER and BER)
• Handy spectrum-analyzer for frequency 45-860MHz.
• Easy digital readout of MER, BER and Constellation diagram.
• QAM16, QAM32, QAM64, QAM128 & QAM256.
• Analog signal level reads out in dBuV, dBmV and dBm with maxhold function.


TESTER SATFINDER CAUTARE SI ALINIERE ANTENE TV SATELIT SATLOOK LITE

• Very handy and easy to use Satellite-TV meter.
• "EasyFind"- satellite identification for super fast installations.
• Very sensitive, easy to maximize weak and strong signals
• Digital BER and S/N-ratio
• Spectrum-analyzer 920-2150 MHz with zoom function
• Super bright LCD display with backlite


TESTER TV PROFESIONAL CU ANALIZA DE SPECTRU SATLOOK HD COLOR

• Spectrum-analyzer 950-2150MHz.
• DVB/S S/2 -receiver 920-2150MHz.
• Super bright 5" 16:9 TFT-LCD color display.
• Automatic Satellite identification.
• Readout of NIT - gives SAT ID and TV/Radio-channel info.
• Digital BER and S/N-ratio (DVB-S, S/2).
• QPSK and 8PSK constellation diagram.
• DVB-S (Free to Air) and SAT-analog TV-picture.


EASYSPLICER APARAT SUDURA FIBRA OPTICA - KIT COMPLET

• EasySplicer Aparat sudura fibra optica - KIT complet -> 1190 EUR + TVA
•
• Suduri pe fibra optica foarte simple si rapide cu EasySplicer
• Pentru ambele moduri: Singlemode si Multimode
• Timpi de sudare sub 7 secunde
• Estimarea pierderilor
• Test de tragere dupa efectuarea sudurii
• Cuptor integrat
• Simplu de utilizat si transportat
• Perfect pentru instalari FTTH


EASYSPLICER OTDR OPTICAL TIME DOMAIN REFLECTOMETER FIBER OPTIC TEST TOOL

• • Professional instrument for measuring loss and finding faults in fiber networks
• • Optical Time-Domain Reflectometer
• • Measure distance from 0 to 60km, in resolution of 1m
• • Measure dB loss with a resolution of 0.01 dB
• • Auto mode for super easy operation (and Expert Mode for Experts)
• • 4.3 inch, multicolor LED touchscreen
• • Comes in sturdy carrying-case with launce cable and 4x adapter cables
• • VFL, OPM and OLS, two wavelengths - 1310nm and 1550nm
• • RJ45 cable tracker and distance readout (up to 300m)


TESTER TV TERESTRIAL SI CABLU, ANALOG SI DIGITAL DVB-T, DVB-T2, DVB-C DIGIAIR PRO T2/C

• for exact alignment andadjustment of terrestrial antennas (DVB-T, DVB-T2 and DVB-C)
•  both analog (dBuV, dBm, dBmV) and digital (BER, C/N, MER)
• Frequency range of 45-860MHz
• Made in Sweden


TESTER NIVEL SEMNAL TV ANALOG SI DIGITAL DVB-T DIGIAIRPRO

• for exact alignment and adjustment of terrestrial antennas DVB-T
• for both analog (dBuV) and digital (BER and SNR)
• Frequency range of 45-860MHz.
• The meter to use for easy Digital terrestial installations.
• Very sensitive, easy to maximize weak and strong signals.
• Signal level reads out in dBuV
