Cod: DigiairPro
Brosura produs
PDF, 0.18 Mb
Descriere
Features:
• Frequency range of 45-860MHz.
• The meter to use for easy Digital terrestial installations.
• Very sensitive, easy to maximize weak and strong signals.
• Signal level reads out in dBuV.
• Presents one channel readout with high resolution or six channels.simultaneously or the complete spectrum.
• Built in beeper (pitch tone) and maxhold function.
• Aerial power output, 0, 5 and 12V.
• Built in, rechargeable battery.
• Power supply and car-charger enclosed.
• Carrying-case enclosed.
• Small and handy design.
• Made in Sweden.

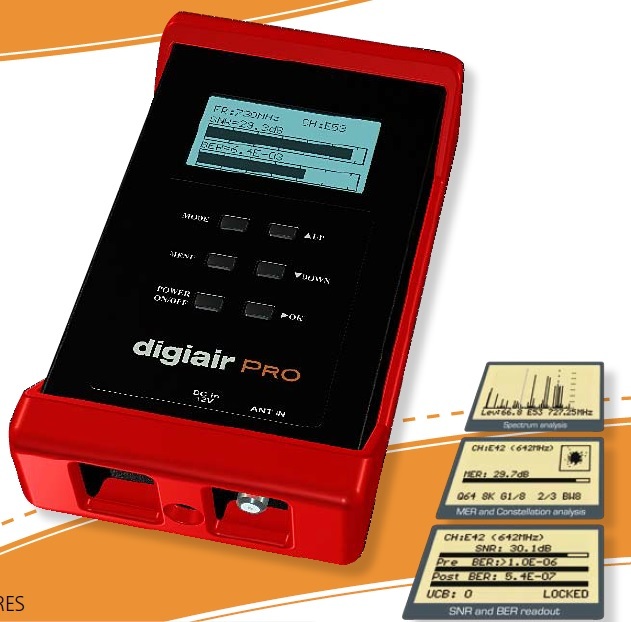

Emitor´s DIGIAIR PRO is developed in
Sweden for exact alignment and adjustment of terrestrial antennas.
This is made for both analog (dBuV) and digital (BER and SNR).
DIGIAIR Pro is microprocessor controlled, making it very reliable and
accurate.
Signalstrength is presented on the LCD-display. In analog mode it shows a single channel or six channels at the same time. You can also choose to view the signal in spectrum mode.
In digital mode it displays the BER (bit error rate) and SNR (signal/noice ratio). Readout of UCB (uncorrected bits) and CB (corrected blocks) is also easy to do.
Furtermore DIGIAIR Pro present pitchtones (the higher tone the stronger signal) on a loudspeaker.
DIGIAIR Pro is very sensitive and can detect even the weakest signals.
DIGIAIR Pro can feed Voltage (5/12 Volt) to external active antennas this feature is short-circuit protected by an automatic fuse.
DIGIAIR Pro is charged via an external DC power-source of 13,5 -18 volt.
The DIGIAIR Pro operates with 8xAA rechargeable batteries.
The unit will works for at least 2 hours with fully charged batteries.
Even though the DIGIAIR Pro has a lot of functions it is still very easy to use and has a very compact design.
Technical specification:
Input frequency: 45-860 MHz.
Input level: 30-80 dBuV.
Input impedance: 75 Ohm, F-connector.
Short circuit protection: Automatic fuse on antennainput.
Measuring method: in digital
Two bars showing BER (bit error rate) and SNR (signal/noice ratio).in analog
One bar showing dBuV in high resolution or 6 bars showing strength of 6 channels simultaneously.
Spectrum display.
Pitch tone indication from beeper.
Signal-level readout: digital BER and SNR values.
analog dBuV with maxhold-function.
Power out: 0V, 5V,12V and 24V on/off.
Power supply/charger: 10 -18V DC (Centerpin +).
Display: Back-lighted 128x64 Pixels LCD.
Power consumption: 500mA.
Battery: 8x AA rechargeable batteries of1200mA each.
Weight: 0.3 kg.
Dimensions: 185 x 115 x 50 mm.
Accessories: Powersupply 12V DC, 1ARubber-case.
Power supply.
Car charger.
Alte produse SCANDINAVIA
TESTER SATFINDER CAUTARE SI ALINIERE ANTENE TV SATELIT SATLOOK LITE
• Very handy and easy to use Satellite-TV meter. |
TESTER TV TERESTRIAL SI CABLU, ANALOG SI DIGITAL DVB-T, DVB-T2, DVB-C DIGIAIR PRO T2/C
• for exact alignment andadjustment of terrestrial antennas (DVB-T, DVB-T2 and DVB-C) |
EASYSPLICER APARAT SUDURA FIBRA OPTICA - KIT COMPLET
• EasySplicer Aparat sudura fibra optica - KIT complet -> 1190 EUR + TVA
|
TESTER TV PROFESIONAL CU ANALIZA DE SPECTRU SATLOOK HD COLOR
• Spectrum-analyzer 950-2150MHz. |
EASYSPLICER OTDR OPTICAL TIME DOMAIN REFLECTOMETER FIBER OPTIC TEST TOOL
• • Professional instrument for measuring loss and finding faults in fiber networks |
TESTER SEMNAL TV PRIN CABLU ANALOG SI DIGITAL DIGIAIRPRO CATV
• Perfect for digital CATV installations (QAM), DVB-C |
TESTER NIVEL SEMNAL TV ANALOG SI DIGITAL DVB-T DIGIAIRPRO
• for exact alignment and adjustment of terrestrial antennas DVB-T |

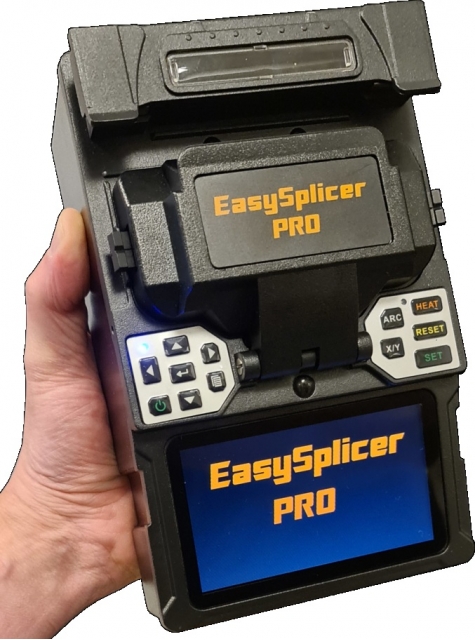

SB SCANDINAVIA EASYSPLICER PRO - APARAT DE SUDURA FIBRA OPTICA CORE POSITIONING
