PROTEK A338 Analizor vectorial de retele 300kHz..8 GHz 2-porturi

Cod: PROTEK A338



Brosura produs PDF, 3.16 Mb


Descriere

  • Frequency Range (300KHz ~ 8GHz)
  • 2-port
  • 4 Built in S-Parameters: S11, S21, S12, S22
  • Frequency offset, Time Domain, Bias T
  • Wide Output Power Level
  • 10.4 inch TFT Color LCD (Touch Screen)
  • USB(2) / LAN / Print / Video / Keyboard / Mouse
  • GPIB (Option)
  • Windows XP

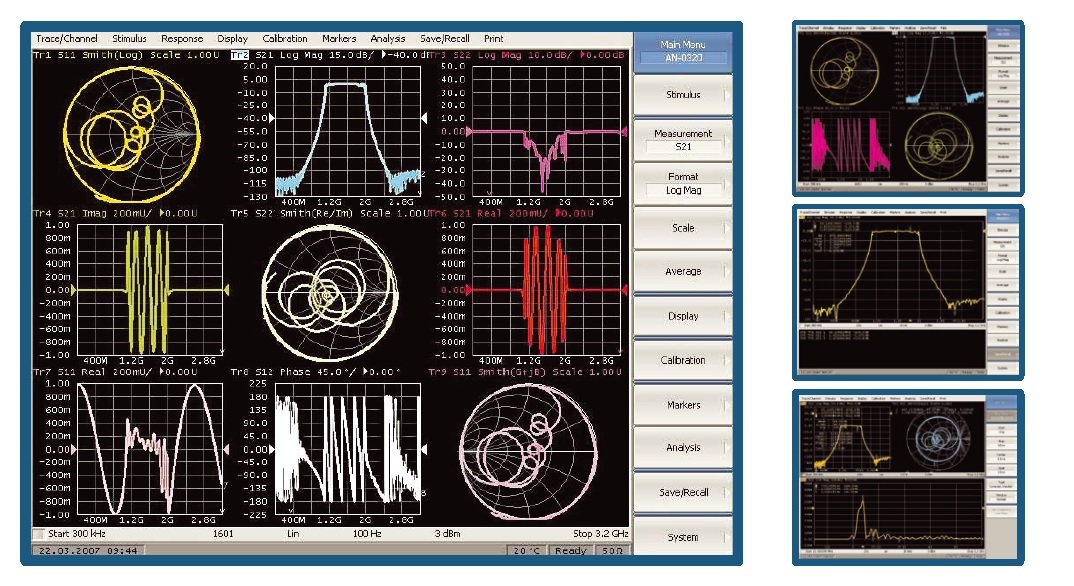

A333 vector network analyzers have been designed for providing user convenience with fast measurement, wide dynamic range, and built-in options such as touch screen, time domain, and frequency offset.

In addition, the comparable accuracy and stability enhance the balance of value in A333 for multi-purpose applications from production lines, and R&D laboratories.





Alte produse PROTEK

PROTEK A338_4PORT ANALIZOR VECTORIAL DE RETELE 300KHZ..8 GHZ 4-PORTURI

• Frequency Range : 100kHz ~ 8GHz
• 16 Parameters support (S11 ~ S44)
• Measurement time per point : 100us per point
• Wide Output Power Range : -60dBm to +10dBm
• Dynamic Range : >150dB (1Hz IF bandwidth)
• Time domain and gating conversion included
• Two Independent Signal Sources


PROTEK A333 ANALIZOR VECTORIAL DE RETEA 300KHZ..3.2 GHZ 2-PORTURI

• Measurement Frequency Range : 300kHz to 3.2GHz
• 4 Built in S-parameters, Time Domain : S11, S21, S12, S22
• Full One Port and Two-Port Calibration
• Display 10.4 inch TFT Color LCD 800x600 Touch Screen
• Familiar graphic user interface based on Windows
• User Interface USB 2.0, Ethernet, Keyboard, Mouse, Printer, Video


PROTEK A734 ANALIZOR DE SPECTRU PORTABIL 100KHZ..4.4GHZ

• Frequency Range (100kHz ~ 4.4GHz)
• Zero Span Function
• Minimum Span : 600Hz
• 8 hours operation
• 5.7" TFT Sun-light Readable Screen
• USB, LAN Connectivity


PROTEK A338 ANALIZOR VECTORIAL DE RETELE 300KHZ..8 GHZ 2-PORTURI

• Frequency Range (300KHz ~ 8GHz)
• 2-port
• 4 Built in S-Parameters: S11, S21, S12, S22
• Frequency offset, Time Domain, Bias T
• Wide Output Power Level
• 10.4 inch TFT Color LCD (Touch Screen)
• USB(2) / LAN / Print / Video / Keyboard / Mouse
• GPIB (Option)
• Windows XP


PROTEK A434L ANALIZOR DE CABLU SI ANTENA 4.4GHZ

• VSWR
• DTF(Distance to Fault)
• Cable Loss
• Power Meter Function
• Frequency Range : 5MHz ~ 4GHz
• Number of Data Points : Up to 2001
• Accuracy : <± 3ppm
• Single & Dual Mode Display
• Smart Battery Indicator
• 7’’ TFT Sun-light Readable Screen
• USB, LAN Connectivity


GENERATOR SEMNAL ARBITRAR 100 UHZ..120 MHZ PROTEK 9300

• 100µHz to 120MHz Frequency Range for Main Waveforms
• 1mV Output Amplitude for Small Signal
• Sine, square, triangle, ramp & pulse, Arbitrary Waveform
• AM, FM, FSK, PSK, Sweep and Burst, Frequency Sweep
