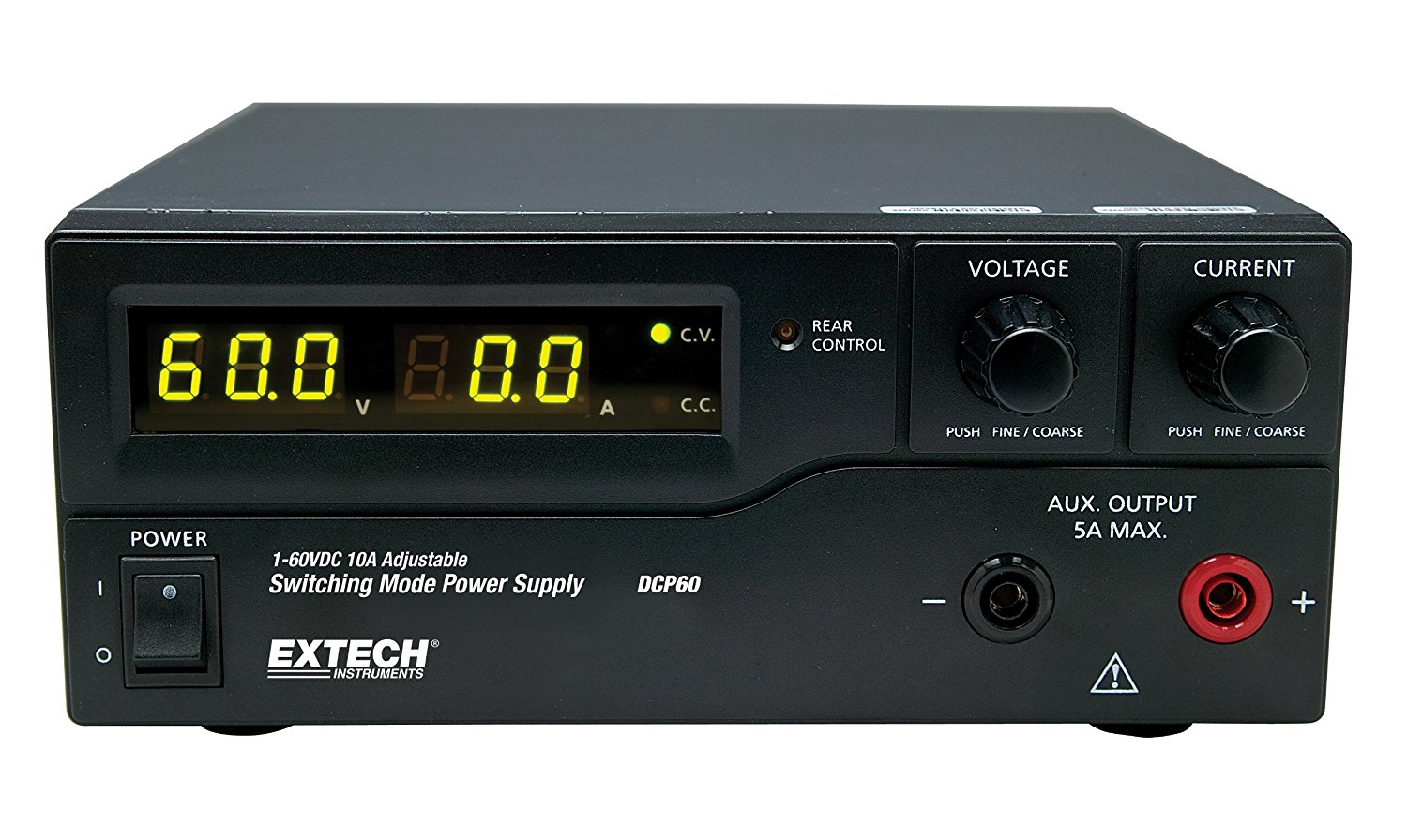

Extech DCP60-220 Sursa reglabila de tensiune 600W

Cod: Extech DCP60-220




Brosura produs PDF, 0.34 Mb

Descriere

High Efficiency Switching Power Supply with Low Ripple and Noise

The Extech Instruments DCP60 is highly efficient, incorporates upgraded SMPS circuitry with small form factor, benefits from an automatic cross-over for CC and CV, has three voltage/current presets, and can be remote controlled. The DCP60 is perfect for solving a variety of loading conditions and applications. DC Power Supplies are used to simulate, power, and test circuits, instruments, solenoids, relays, and motors. The variable DC voltages and currents (0-60 volts and 0-30 amps) conveniently permit the user to match the supply's output to a specific application. For example, if an integrated circuit requires 5 volts or 9 volts power, the supply can be configured to output the necessary signal with high precision. Complete with power cords.



Features:

  • Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities
  • 60V/10A output
  • Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is on the back panel)
  • Three user-defined Voltage and Current presets
  • Dual action rotary encoder control with push knob for fine and coarse tuning
  • Remote control for Output VoltageCurrent and On/Off
  • Complete with power cords
