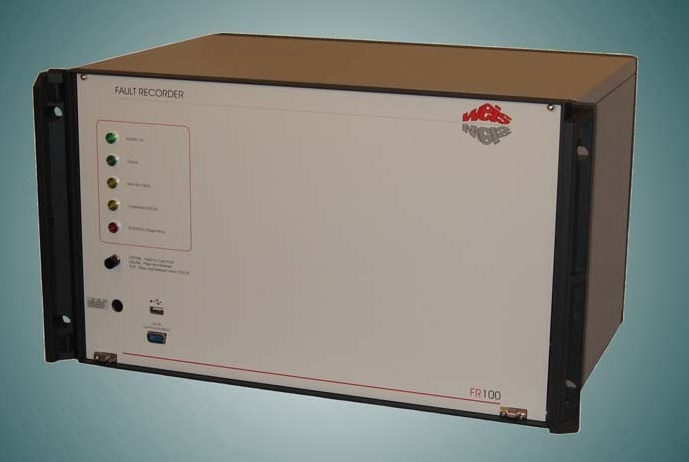

Fault Transient Recorder & Analyzer in Electrical Network Weis FR100

Code: Weis FR100



Datasheet PDF, 0.81 Mb


Description

Weis is a specialist company with over 40 years of experience in the commissioning, testing & maintenance of switchgear and power network fault monitoring within the Power Utility Industry.



The Fault Recorder (FR100) is an essential substation preventative maintenance tool and aid for power utilities with ever increasing demands for more reliable low cost energy and on-time maintenance.

The high speed, high resolution recording and flexible triggering modes make the Weis Fault Recorder ideal for capturing power network faults / disturbances. It can be used for verifying protection / breaker operation as well as monitoring power quality.

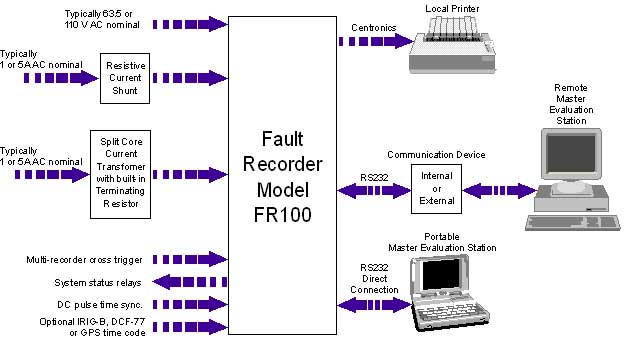

The FR100 is typically part of an integrated monitoring network with multiple FR’s located within substations over a region, and a Windows™ based Master Evaluation Station normally located at the regional control centre running Weis Communication, Configuration and Analysis software. Communications between the Master Evaluation Station and the FR’s is normally by plug-in data modems using the local telephone exchange, but other networks can be supported.



An optional built in screen and external keyboard with trackball may be provided for local configuration and analysis.



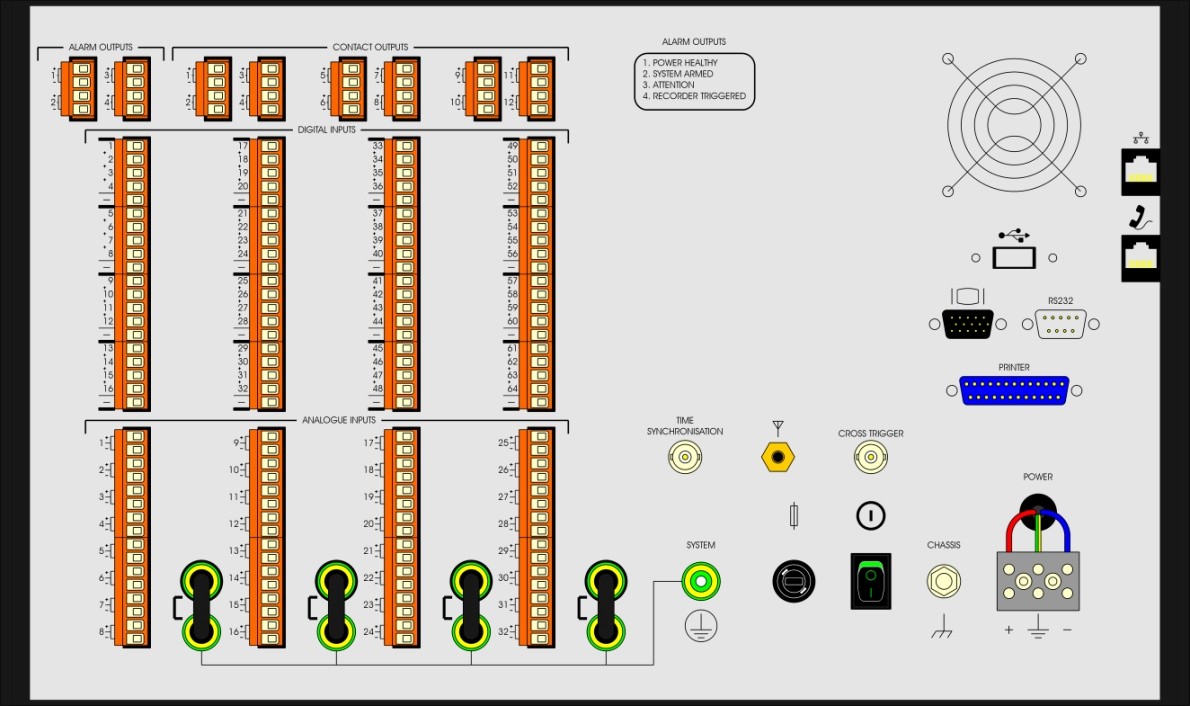

  • 8 TO 32 ANALOGUE CHANNELS
  • 16 TO 128 DIGITAL CHANNELS
  • MULTI-RECORDER CROSSTRIGGERING TO FORM LARGER SYSTEMS

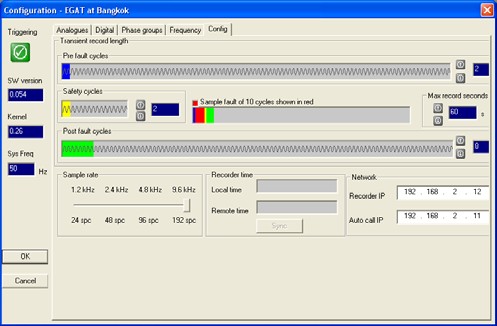

  • SIMULTANEOUS SAMPLING UP TO192 SAMPLES PER CYCLE ON ALL CHANNELS
  • 12-BIT A/D RESOLUTION

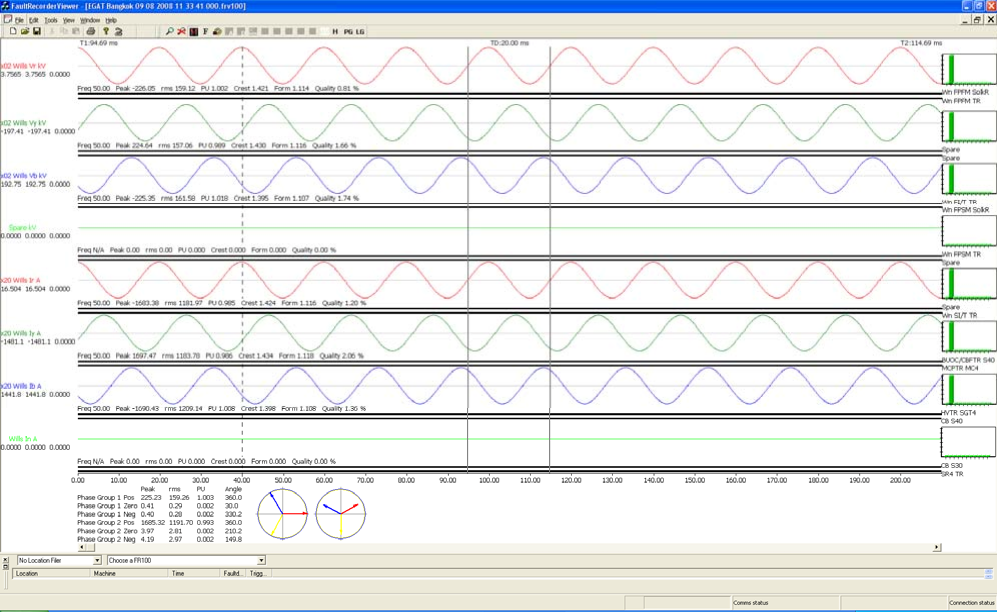

  • FAULT RECORDER VIEWER 32-BIT SOFTWARE FOR COMMUNICATION, CONFIGURATION AND ANALYSIS
  • SOFTWARE TRIGGERS AVAILABLE ON ALL CHANNELS SIMULTANEOUSLY

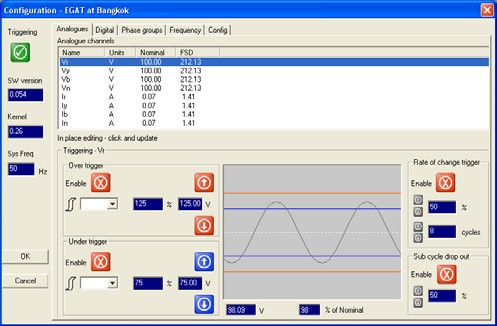

  • ANALOGUE: OVER, UNDER, RATE of CHANGE, SINEWAVE QUALITY
  • DIGITAL: ON ALARM WITH RETURN to NORMAL OPTION
  • ADDITIONAL SOFTWARE ANALOGUE TRIGGERS AVAILABLE
  • ONE SET OF ZERO SEQUENCE & NEGATIVE SEQUENCE PER 4 CHANNELS
  • ONE SET OF FREQUENCY OVER, UNDER & RATE of CHANGE PER CHASSIS
  • DC PULSE OR OPTIONAL IRIG-B (TIME CODE), DCF77 (RADIO) OR GPS (SATALITE) TIME SYNCHRONISATION
  • 6U HIGH 19" RACK MOUNTING
  • SUITABLE FOR PORTABLE APPLICATIONS WITH OPTIONAL CARRY CASE


Recommended options

FR100 Fault Recorder 8A/16D

FR100 Fault Recorder 16A/32D

FR100 Fault Recorder 24A/48D

FR100 Fault Recorder 32A/64D

Built-in PC Option

External Printer

Shunt - Please specify value
