Brand: Weis

Switchgear Breaker Analyzer Weis SA100s

Code: Weis SA100s



Datasheet PDF, 0.73 Mb


Description

Weis is a specialist company with over 40 years of experience in the commissioning, testing & maintenance of switchgear and power network fault monitoring within the Power Utility Industry.

Based on its pioneering of analogue timing techniques developed over more than 20 years ago, Weis has applied its expertise to develop a robust switchgear test set for performance analysis on high, medium and low voltage circuit breakers.

The Switchgear Analyser (SA100) is an essential substation preventative maintenance tool and aid for power utilities with ever increasing demands for more reliable low cost energy and on-time maintenance.

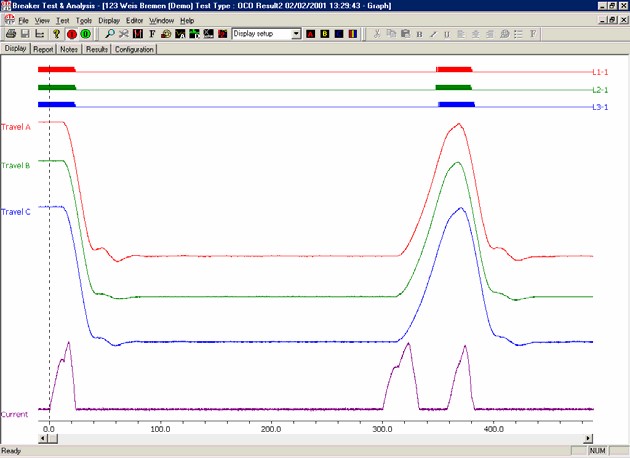

Possible test results which can be computed per phase for each breaker operation include:

  • Peak Coil Current
  • Current Pulse Length
  • Operate Times (Main / Resistive)
  • Operate Time Spread (Main / Resistive)
  • On Time
  • Dead Time
  • Datum Velocity
  • Velocity at Contact Touch
  • Stroke
  • Contact Length (Main / Resistive)
  • Contact Separation
  • Spring Compression on Vacuum Contacts
  • Travel Overshoot
  • Rebound
  • Bounce Time
  • Mechanism Times (Pre Latch / Latch Period)
  • Acceleration
  • Fingerprint Comparison on all channels (Grey Zone Checking)
  • Battery Voltage

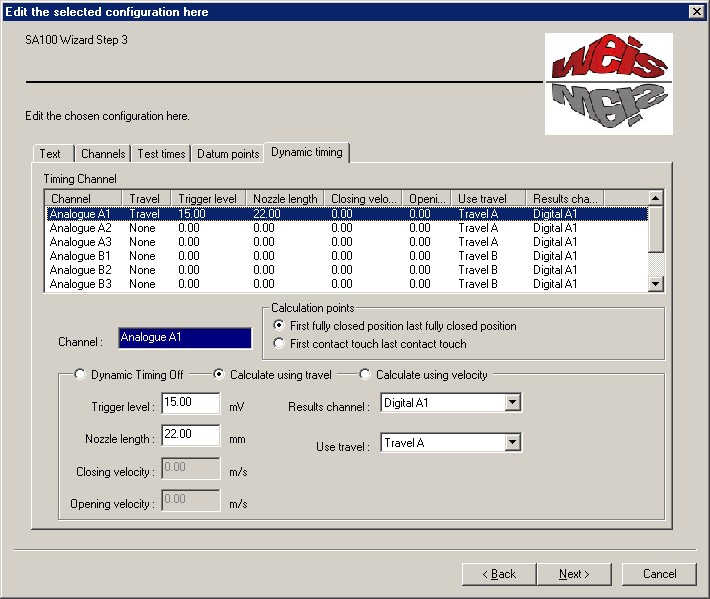

In addition, Dynamic Timing of up to 2 breaks per phase is made available with 6 x 20A constant current outputs.

The SA100 can optionally perform timing of up to 12 main and 12 resistive contacts per phase when combined with the SA112 expansion unit.



FEATURES:

  • ROBUST SWITCHGEAR TEST AND ANALYSIS SYSTEM FOR PORTABLE OR FACTORY USE

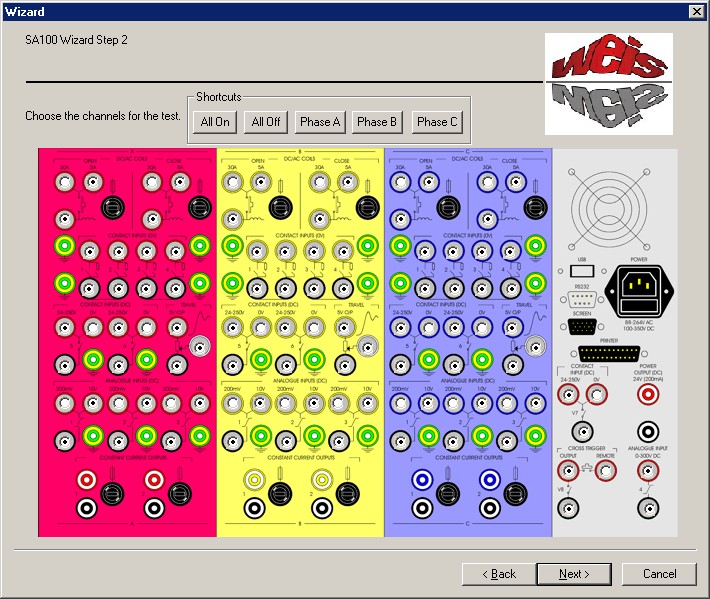

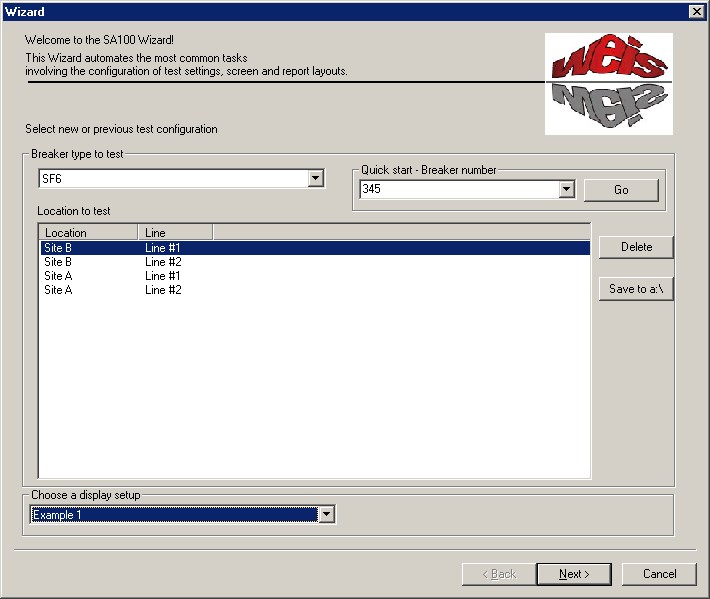

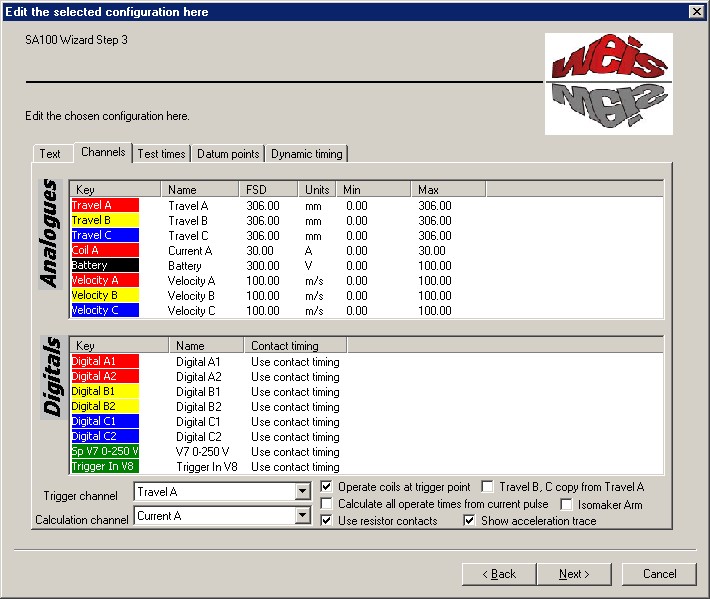

  • SOFTWARE WIZARD TO SIMPLIFY TEST CONFIGURATION

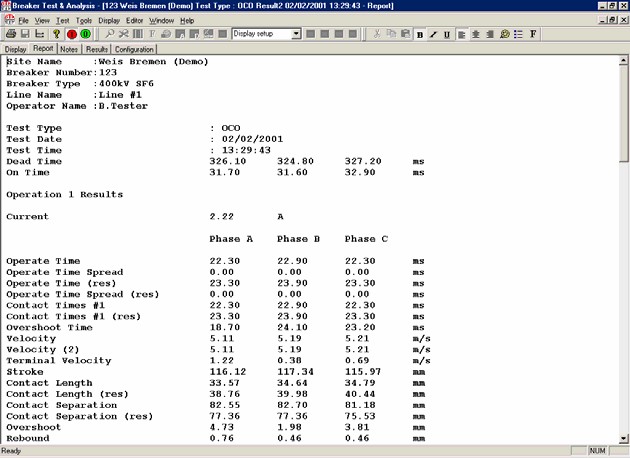

  • COMPUTED RESULTS WITH CUSTOM REPORT FORMAT FEATURE, REDUCING TEST TIME
  • CREATE A ELECTRONIC LIBRARY OF BREAKER TEST SETTINGS AND SIGNATURES
  • REVISED CONFIGURATION / RECALCULATION ON PREVIOUS TESTS CAPABILITY
  • SUBSTATION ENVIRONMENT PROVEN WITH A 12.1" HIGH-BRIGHT SUNLIGHT READABLE COLOUR
  • TFT DISPLAY
  • INDENPENDENT CONTROL OF TRIP AND CLOSE AC OR DC COILS PER PHASE WITH 5 OR 30AMP
  • MEASUREMENTMENT RANGES

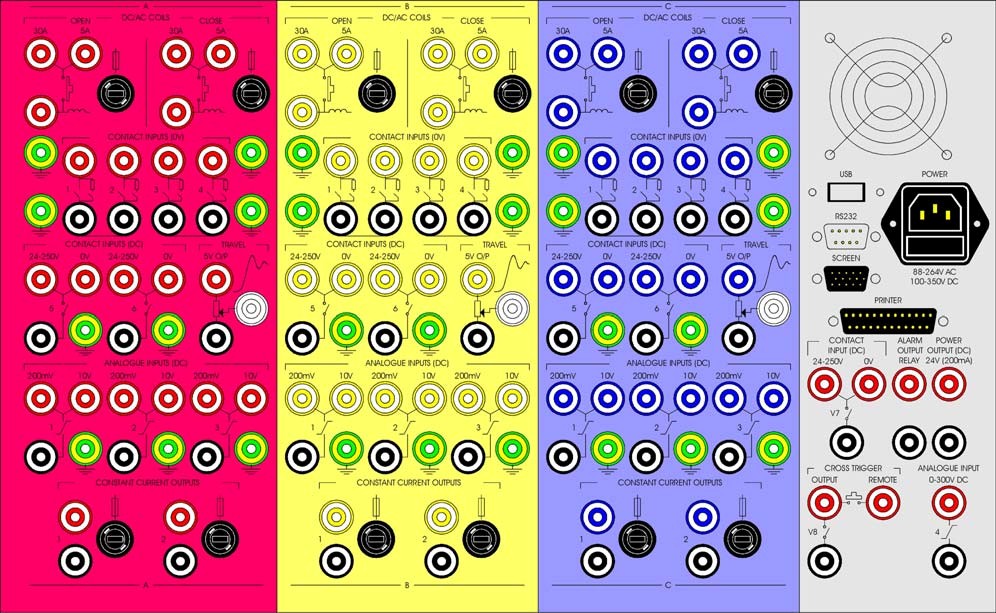

  • 16 ANALOGUE INPUT FOR: 3 x DUAL RANGE (5 / 30A) TRIP AND CLOSE COIL CURRENT , 3 x TRAVEL,
  • 1 x STATION BATTERY VOLTAGE, 9 x USER CONFIGURABLE
  • 32 DIGITAL INPUTS FOR: TIMING OF UP TO 4 MAIN AND 4 RESISTIVE CONTACTS PER PHASE, 7 x TIMING CONTACTS (24-250V DC or 0V DC)

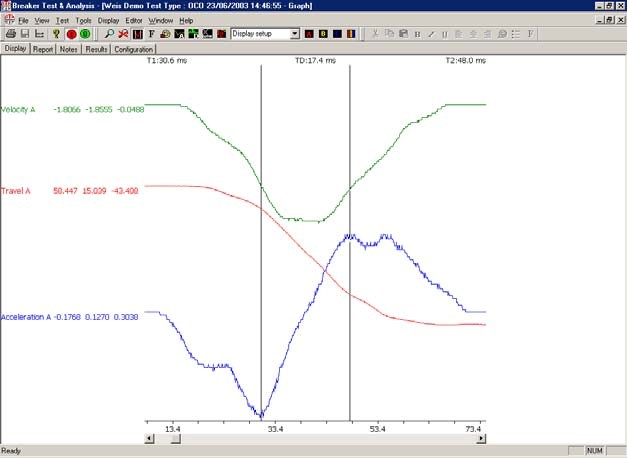

  • CALCULATED INPUTS FOR: VELOCITY AND ACCELERATION PER TRAVEL INPUT
  • MEASUREMENT OF UP TO 12 PARALLEL CONTACT (P.I.R.) SWITCHING RESISTORS IN A SINGLE TEST
  • OPTIONAL PRINTER HOUSED IN CASE
  • OPTIONAL SA112 EXPANSION UNITS FOR TIMING OF UP TO 12 MAIN AND 12 RESISTIVE CONTACTS
  • PER PHASE INCLUDING FRAME R BREAKERS
  • SA100 CAN DYNAMICALLY TEST 2 BREAKS PER PHASE WITH BOTH ENDS CONNECTED TO EARTH


Recommended options

SA100 Switchgear Analyser

(including Transportation Case, Keyboard & Chinese, English, German or Swedish BTA Software)



SA112 Expansion Unit - Requires SA100

(including Transportation Case, Communications cable & Cross-Trigger cable)



SA100R Switchgear Analyser - Reduced No. of Channels

(including Transportation Case, Keyboard & Chinese, English, German or Swedish BTA Software)



SA100R DYNAMIC Switchgear Analyser - SA100R with 3 Dynamic Timing Channels

(including Transportation Case, Keyboard & Chinese, English, German or Swedish BTA Software)



SA1003R Switchgear Analyser - SA100R with 3 additional Travel Channels

(including Transportation Case, Keyboard & Chinese, English, German or Swedish BTA Software)



SA100RS Switchgear Analyser - 1/2 height SA100R with no Screen/Keyboard - PC Required

(including Transportation Case, 2m length RJ45 CrossOver Communications Cable & Chinese, English, German or Swedish BTA Software)



SA1003RS Switchgear Analyser - SA100RS with 3 additional Travel Channels - PC Required

(including Transportation Case, 2m length RJ45 CrossOver Communications Cable & Chinese, English, German or Swedish BTA Software)



SA100RS DYNAMIC Switchgear Analyser - SA100RS with 3 Dynamic Timing Channels - PC Required

(including Transportation Case, 2m length RJ45 CrossOver Communications Cable & Chinese, English, German or Swedish BTA Software)



Optional DIGITAL TRANSDUCER function on any above type of SA100 Switchgear Analyser



25mm TS Linear Transducer

50mm TS Linear Transducer

100mm TS Linear Transducer

150mm TS Linear Transducer

300mm TLH Linear Transducer

500mm TLH Linear Transducer

600mm TLH Linear Transducer

357° ±2% Rotary Transducer

UMA for use with TS, TLH or Rotary types



Cable Set (3 x 2-core 13m Individually Screened, 4 x Silicone & Clips) NO Case

Cable Set (65 Piece Silicone) & Aluminium Case

Cable Set (12 x 2-core 13m Individually Screened) & Alu Case

Cable Set for Dynamic Testing (6 x 20A) & Aluminium Case

Cable 10m Individually Screened to fit TS or Rotary types

Cable 10m Individually Screened to fit TLH type
