Brand: Micronix

Handheld Spectrum Analyzer 50 kHz..3.3 GHz/ 8.5 GHz Micronix MSA300

Code: Micronix MSA338/ MSA358/ MSA338TG/ MSA338E




Datasheet PDF, 1.38 Mb


Description

MSA338      50 kHz..3.3 GHz Spectrum Analyzer
MSA358      50 kHz..8.5 GHz Spectrum Analyzer
MSA338TG 50 kHz..3.3 GHz Spectrum Analyzer + 5 MHz..3.3 GHz Tracking Generator
MSA338E    50 kHz..3.3 GHz Spectrum Analyzer for EMI Testing

  • 50kHz …3.3 GHz Frequency Range(model MSA338)
  • 50kHz …8.5 GHz Frequency Range(model MSA358)
  • Compact and lightweight 1.8kg
  • 150 minutes battery operation
  • Accurate frequency measurement by PLL synthesizer
  • Average noise levm Ael -117dBm
  • Competitive functions
  • Easy operation by AUTO mode
  • Hard copy of screen image
  • Measuring electric field strength from 300MHz to 6.2GHz
  • Abundant options


Recommended options

  • PC software (MAS300)
  • PC software for EMI (MAS230)
  • Logging software for unmanned watch (MAS310)
  • Dipole antenna (M301 to M306)
  • Printer (BS2-80TS-M), Rollpaper (with 10 rolls)
  • Frequency counter
  • Ni-MH battery (MB300)
  • Charger (MBC300)
  • RS-232C/GP-IB Converter (ZS-6144TM)
  • RS-232C cable (MI180)
  • AC adaptor (MA300)
  • Test accesorry


More products MICRONIX

PROGRAMMABLE VARIABLE ATTENUATOR MICRONIX MAP800/ MAP810/ MAP850

• The frequency range is so wide as 300MHz to 6.6GHz
• The minimum step size of attenuation is 0.05dB
• maximum attenuation is 80dB
• GP-IB and RS-232C interface are equipped as standard accessories

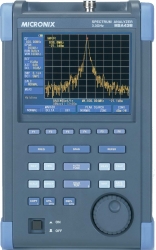

HANDHELD SPECTRUM ANALYZER 50 KHZ..3.3 GHZ/ 8.5 GHZ MICRONIX MSA300
