Model	Frequency	Attenuation		Input Power	Type
		Max	Resol.
MAT800 A	1.5 to 4.5GHz	80dB	0.05dB	100mW	High-Speed Programmable Attenuator
MAT800B	3.0 to 9.0GHz
MAT800C	4.5 to 13.5GHz
MAT800D	1.95 to 5.85GHz
MAT800E	750MHz to 2.25GHz
MAT810	300MHz to 6.6GHz	60dB		25mW
MAT850	300MHz to 6.1GHz		0.1dB		Step Attenuator

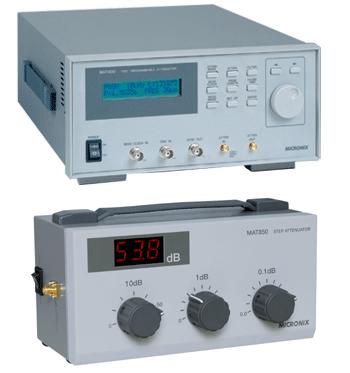

[MAT800]

Five models are prepared corresponding to each frequency band.

The minimum step size of attenuation is 0.05dB, and the maximum attenuation is 80dB.

There is no spike at switching moment, and it is, therefore, possible to test without causing communication fault.

GP-IB and RS-232C interface are equipped as standard accessories

It is posible to make the arbitrary attenuation program.

? Manual mode or program mode is selectable.

? The software for making attenuation program is a standard accessory

? 128k words program memory is built-in.

? 2µs maximum switching (readout) speed at program mode. And three readout modes of FREE�BURST�GATE .

? Equips with External readout clock input, Trigger input and SYNC output in consideration of connecting with other systems.

[MAT810]

The frequency range is so wide as 300MHz to 6.6GHz.

The minimum step size of attenuation is 0.05dB, and the maximum attenuation is 60dB.

Other features are the same as MAT800.

[MAT850]

The frequency range is so wide as 300MHz to 6.1GHz.

The minimum step size of attenuation is 0.1dB, and the maximum attenuation is 60dB.

Equips with spike noise removal circuit at switching moment.

LED display easy to see.
