Brand: Micronix

Electromagnetic Anechoic Box Micronix Taurus-N MY1510N/ MY1520N/ MY1530N

Code: Micronix Taurus-N MY1510N/ MY1520N/ MY1530N



Datasheet PDF, 0.09 Mb


Description

  • High quality and reliability the testing and measuring instruments manufacturer offers
  • Good cost-performance and short delivery time
  • The shield box which inside is not covered with an radio wave absorber



Model  MY1510N

Small size :
The lowest priced and the most lightweight type.

Outside dimensions

380(W)×380(D)×165(H)mm
(excluding projections)

Inside dimensions

375(W)×375(D)×160(H)mm

Weight

approx. 1.9kg (without I/F Module)

Shielding characteristics

more than 50dB @ 2.4GHz

Connectors

2 pcs of SMA @ back

I/F Module installation capacity

1 module @ back





Model MY1520N

Medium size :
Low priced, the most general and universal type.

Outside dimensions

520(W)×520(D)×520(H)mm
(excluding projections)

Inside dimensions

515(W)×515(D)×515(H)mm

Weight

approx. 12.3kg (without I/F Module)

Shielding characteristics

more than 50dB @ 2.4GHz

Connectors

2pcs of SMA @ back

I/F Module installation capacity

2 modules @ back





Model MY1530N

Large size :
Low priced type corresponding to even big EUT.

Outside dimensions

1260(W)×660(D)×660(H)mm
(excluding projections)

Inside dimensions

1115(W)×615(D)×615(H)mm

Weight

approx. 42kg (without I/F Module)

Shielding characteristics

more than 50dB @ 2.4GHz

Connectors

4 pcs of SMA
@ 2 at back and each one at both sides

I/F Module installation capacity

4 modules @ 4 at back





Recommended options

Small size (MY1510N)

I/F Module

Medium size (MY1520N)

I/F Module

Wooden table

Large size (MY1530N)

I/F Module

Wooden table

Turn table unit



The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted. All of the I/F modules are common to Taurus series.



Option

Mounted connectors

IFM1

IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)

IFM2

IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)

IFM3

AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)

IFM4

DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)

IFM5

SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)



More products MICRONIX

Brand: Micronix
ELECTROMAGNETIC ANECHOIC BOX MICRONIX TAURUS-N MY1510N/ MY1520N/ MY1530N

• High quality and reliability the testing and measuring instruments manufacturer offers
• Good cost-performance and short delivery time
• The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber


Brand: Micronix
EMS TESTING SYSTEM MICRONIX MR2350

• The electric field strength of 1, 3, 10V/m
• The malfunction of the EUT by the electromagnetic radiation can be observed
• One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option)


Brand: Micronix
HANDHELD SPECTRUM ANALYZER 50 KHZ..3.3 GHZ/ 8.5 GHZ MICRONIX MSA300

• 50kHz …3.3 GHz Frequency Range(model MSA438)
• 50kHz …8.5 GHz Frequency Range(model MSA458)
• Compact and lightweight 1.8kg
• Large and color TFT display 5.7 inches, 640x480 dots and color LCD
•
• Four hours battery operation
• USB memory & communication
• Average noise level -127dBm


Brand: Micronix
HANDHELD SPECTRUM ANALYZER 50 KHZ..3.3 GHZ/ 8.5 GHZ MICRONIX MSA300

• 50kHz …3.3 GHz Frequency Range(model MSA338)
• 50kHz …8.5 GHz Frequency Range(model MSA358)
• Average noise level -117dBm
• 150 minutes battery operation
• Easy operation by AUTO mode
• Measuring electric field strength from 300MHz to 6.2GHz


Brand: Micronix
ELECTROMAGNETIC ANECHOIC BOX MICRONIX TAURUS MY1510/ MY1520/ MY1530

• High quality and reliability the testing and measuring instruments manufacturer offers
• Good cost-performance and short delivery time
• The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber


Brand: Micronix
SHIELDED ANECHOIC BOX FOR TESTING WIRELESS, CDMA, GSM MICRONIX ME8661A

• Optimum for testing W-CDMA, CDMA, GSM, PDC, PHS, ETC and wireless systems
• A receiving antenna of your choice will be mounted
• simple type shielding box that may be used on a desk
• triple structure, i.e., radio wave absorber, copper plate and aluminum plate
• covers the frequency band of low frequency through 18GHz
• acrylic resin table for placing a test sample is provided, and this structure permits easy mounting of an optional receiving antenna


Brand: Micronix
ELECTROMAGNETIC ANECHOIC BOX WITH LARGE WINDOW MICRONIX MY1520SW

• Large shield window for looking in anechoic shield box
• Shield characteristic >60 dB @ 2.4 GHz
• Shading cover for measuring illumination of luminance
• Several interfaces


Brand: Micronix

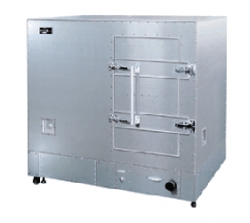

ELECTROMAGNETIC SHIELDING ANECHOIC BOX FOR EMI TESTING MICRONIX MY5310/ MY5410
