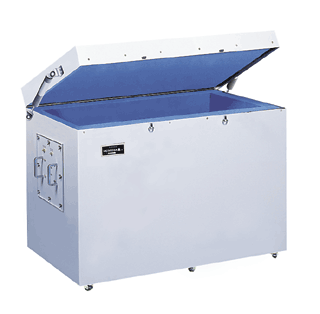

Shielded Anechoic Box with Absorber for GSM Test Micronix M8661B

Code: Micronix M8661B




Datasheet PDF, 0.09 Mb

Description

  • Equipped with the radio wave absorber covering 800MHz/900MHz frequency band
  • Optimum for wireless system test for technical standard, receiving sensitivity test and simple
  • EMC test of a wide frequency band







Outside dimensions (approximate)
1500(W)×1100(H)×900(D)mm
?excluding projections

Inside dimensions (approximate)
1200(W)×600(H)×600(D)mm

Connectors
SMA 3pcs
(reference side 1pc, receiving side 2pcs)
25pins D-sub connectors 1pc

Structure
Double structure composed of radio wave
absorbe and aluminum plate

Shielding characteristics
60dB@800MHz
60dB@2.4GHz

Reflection loss
more than 20dB at @600MH



More products MICRONIX

SHIELDED ANECHOIC BOX FOR TESTING WIRELESS, CDMA, GSM MICRONIX ME8661A

• Optimum for testing W-CDMA, CDMA, GSM, PDC, PHS, ETC and wireless systems
• A receiving antenna of your choice will be mounted
• simple type shielding box that may be used on a desk
• triple structure, i.e., radio wave absorber, copper plate and aluminum plate
• covers the frequency band of low frequency through 18GHz
• acrylic resin table for placing a test sample is provided, and this structure permits easy mounting of an optional receiving antenna



PROGRAMMABLE VARIABLE ATTENUATOR MICRONIX MAP800/ MAP810/ MAP850

• The frequency range is so wide as 300MHz to 6.6GHz
• The minimum step size of attenuation is 0.05dB
• maximum attenuation is 80dB
• GP-IB and RS-232C interface are equipped as standard accessories



MULTIPLE-STRUCTURE SHIELDED ANECHOIC BOX MICRONIX ME8662E/ ME8662N

• ME8662N dedicated to shield
• ME8662E electromagnetic anechoic box type



ANECHOIC SHIELDING BOX FOR EMI & EMC RADIATIONS MICRONIX ME8669

• These are electromagnetic anechoic box using radio wave absorber of ferrite and ranging 50 to 800MHz
• Outside dimensions : 915 (W) × 650 (H) × 585 (D) mm
• Inside dimensions : 810 (W) × 506 (H) × 506 (D) mm
• Weight : type approx. 165kg
• Capable of customizing



LINE IMPEDANCE STABILIZATION NETWORK MICRONIX MPW201

• The conducted emission discharged through the power supply line is measured by using the line impedance stabilization network (LISN).
• To measure the disturbance noise with reproducibility, the LISN, which makes constant the impedance of the power source observed from EUT, is inserted in the power supply line.
• The output impedance of the disturbance noise to be measured is 50 ohms.



ELECTROMAGNETIC ANECHOIC BOX MICRONIX TAURUS MY1510/ MY1520/ MY1530

• High quality and reliability the testing and measuring instruments manufacturer offers
• Good cost-performance and short delivery time
• The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber



ELECTROMAGNETIC ANECHOIC BOX AIR FAN COOLED MICRONIX MY1515

• Type equipping with exhaust fan and intake
• As the temperature rise in box is suppressed, the ideal test environment is provided even during long time operation



SHIELDING BOX WITH CONVEYER FOR MASS PRODUCTION LINES MICRONIX ME8668

• A model equiping with automatic conveyer for mass production line.
• Outside dimensions : 922 (W) × 794 (H) × 731 (D) mm
• Inside dimensions : 801 (W) × 610 (H) × 610 (D) mm
• Weight : approx. 94kg (include automatic conveyer)
• Capable of customizing



INDUSTRIAL ANECHOIC SHIELD BOX FOR MASS PRODUCTION MICRONIX MY5220

• Newest type of anechoic box with high shielding characteristics
• Optimum for mass production line needing a large opening



RF POWER AMPLIFIER 30..1000 MHZ MICRONIX MAP202

• 20 watts power amplifier.
• Frequency range 30 to 1000MHz
• Gain 46dB typ @ 30 to 600MHz
