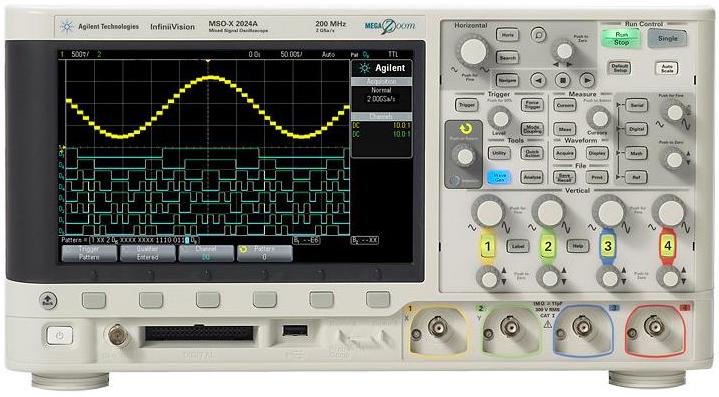

Osciloscop digital 4 x 70 MHz cu Analizor logic 8 canale Agilent MSOX2004A

Cod: Agilent InfiniiVision MSOX2004A




Brosura produs PDF, 1.27 Mb

Descriere

  • 70 MHz bandwidth
  • 4 analog channels plus 8 digital channels
  • 1GSa/s per channel sample rate
  • Largest screen in its class: 8.5-inch WVGA display
  • Fastest update rate of 50,000 waveforms per second
  • Deepest memory: 100 kpts
  • Best-in-class oscilloscope
  • Integrated logic analyzer (MSO)
  • Only built-in 20-MHz function generator: WaveGen
  • Upgradability: add bandwidth, digital channels, or WaveGen after purchase
  • Segmented memory
  • Mask Testing


Accesorii standard

  • 4 x N2862B 150 MHz 10:1 passive probe
  • N6459-60001 8-channel logic probe and accessory kit
  • Calibration Certificate
  • Power Cord
  • Software
  • Manual


Optiuni recomandate

Options



DSOX2BW14

Bandwidth upgrade from 70 MHz to 100 MHz

DSOX2WAVEGEN

WaveGen (built-in function generator)

DSOXEDK

Educator"™s kit

DSOX2MASK

Mask testing

DSOX2SGM

Segmented memory



Recommended Probes



N2889A

350 MHz 10:1/1:1 passive probe

10070D

20 MHz 1:1 passive probe with probe ID

10076A

250 MHz 100:1, 4 kV high-voltage passive probe

with probe ID

N2791A

25 MHz, ±700 V high-voltage differential probe

N2792A

200 MHz 10:1 differential probe

1146A

100 kHz, 100 A, AC/DC current probe



Recommended Accessories



DSOXLAN

LAN/VGA connection module

DSOXGPIB

GPIB connection module

N6456A

Rack mount kit

N6457A

Soft carrying case and front panel cover

N6458A

Hard copy manual
