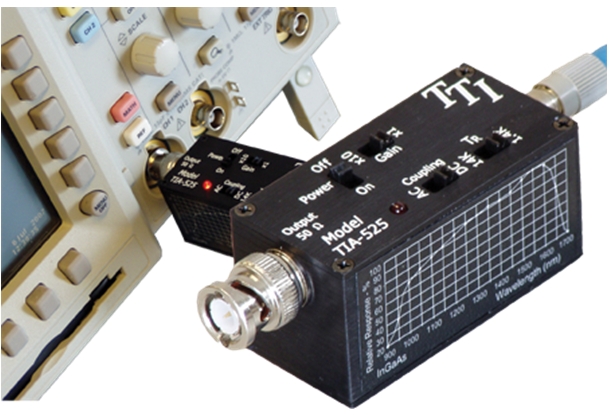

Terahertz Technologies offers a wide variety of O/E converters that are invaluable for the lab and the production line. They range in wavelength from 400 to 1700nm and bandwidths of DC to 20 GHz. The TIA 525 and 527 models may be operated from battery or line power.

400nm to 1700nm wavelengths
Bandwidth to 14 GHz
Compact Size
Universal power supplies

Model	Description	Detector	Wavelength	AC/DC Coupling	Conversion Gain @ Peak Wavelength
TIA-525I	DC to 125 MHz	InGaAs	850-1700nm	Selectable	100,000 V/W
TIA-525S	DC to 125 MHz	Silicon	400-1000nm	Selectable	100,000 V/W
TIA-527	DC to 125 MHz	Matched InGaAs	850-1700nm	Selectable	100,000 V/W
TIA-952	30KHz-800MHz	InGaAs	900-1700nm	AC	2500 V/W
TIA-1200	DC to 14GHz	InGaAs	900-1700nm	DC	0.8 V/W
TIA-2000	DC to 20GHz	InGaAs	900-1700nm	DC	0.8 V/W
TIA-3000	30 KHz to 11GHz	InGaAs	900-1700nm	AC	500 V/W
TIA-4000	30 KHz to 7 GHz	InGaAs APD	950-1650nm	AC	2500 V/W
